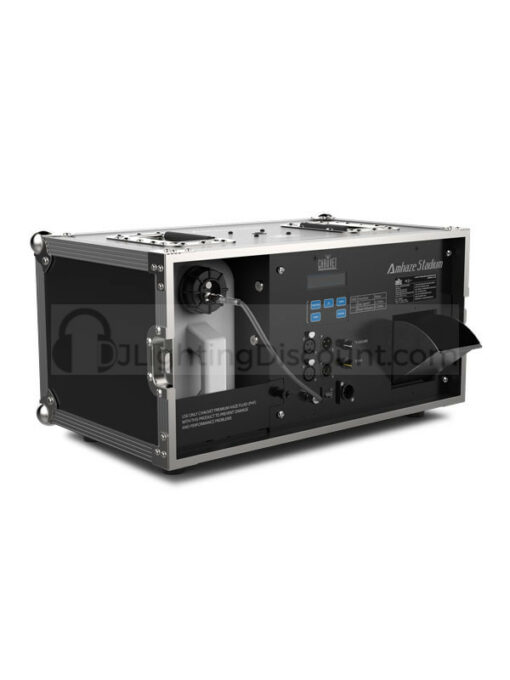

Chauvet Amhaze Stadium

Chauvet Amhaze Stadium - Image 2

Chauvet Amhaze Stadium - Image 3

Chauvet Amhaze Stadium - Image 4

Chauvet Amhaze Stadium

$1,465.00

-

In stock

SKU: C46999 Replacement Part For: New

Description
Additional information

AMHAZE Stadium Tested to AEA standards Includes: Integrated Flight Case Control: 3-pin DMX, 5-pin DMX

Professional water-based haze machine
30-sec heat up time nearly eliminates wait time for operation
Adjustable vent louver for directional haze flow
Tour-ready with a rugged road case and M12 threaded rigging insert
Efficient fluid consumption lasts up to 11 hours on a single fluid container
Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs

DYNAMIC EFFECTS

Fan Speed: 157 cfm
Low Fluid Shutdown: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 20.60 in (523.42 mm) x 10.80 in (274.9 mm) x 15.97 (405.7 mm)
Weight: 38.4 lb (17.4 kg)
Threaded Bolt: M12
Exterior Color: Black
Tank Capacity: 1.3 gal (4.92l)
Fluid Consumption: 9.5 ml/min (0.15 gallons/hour)
Maximum Run time: >8.25 hours @ full volume

CONNECTIONS

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX
DMX Channels: 2
Modes/Personalities: 1 personality
On-Board Control: Yes

ELECTRICAL

Input Voltage: 120 VAC, 50/60 Hz or 230 VAC, 50 Hz
Power and Current: 1,230 W, 10.25 A @ 120 V, 50/60 Hz
Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
Heat-up Time: 30 sec

CERTIFICATIONS / QUALIFICATIONS

CE, MET, RCC, RoHS
MET Listing Number: E115095
US Safety: UL 499
Canadian Safety : CSA C22.2 No. 64-10
IP Rating: IP20, dry location
Minimum distance from flammable material to all exterior surfaces of the product: 3.3 ft (1 m)
Maximum exterior surface temperature (Tc): 127 °F (53 ℃)

WHAT’S INCLUDED

Amhaze Stadium
Seetronic Powerkon IP65 power cord
Warranty Card
Quick Reference Guide or User Manual

REQUIRED ACCESSORIES

Compatible Mounting Options: M12 Bolt/Clamp
PHF Haze Fluid

OPTIONAL ACCESSORIES

DATA SHEET
SAVE AND PRINT

Amhaze Stadium Quick Reference Guide Amhaze Stadium User Manual Amhaze Stadium CAD Files

Download ChamSys Personalities File

Weight	555 oz
Dimensions	10 × 12 × 17 in
