Magmatic Crisp

Name: Magmatic Crisp
SKU: E89342
Availability: InStock

$559.00

In stock

SKU: E89342 Replacement Part For: New

Description
Additional information

Magmatic Crisp PSC001

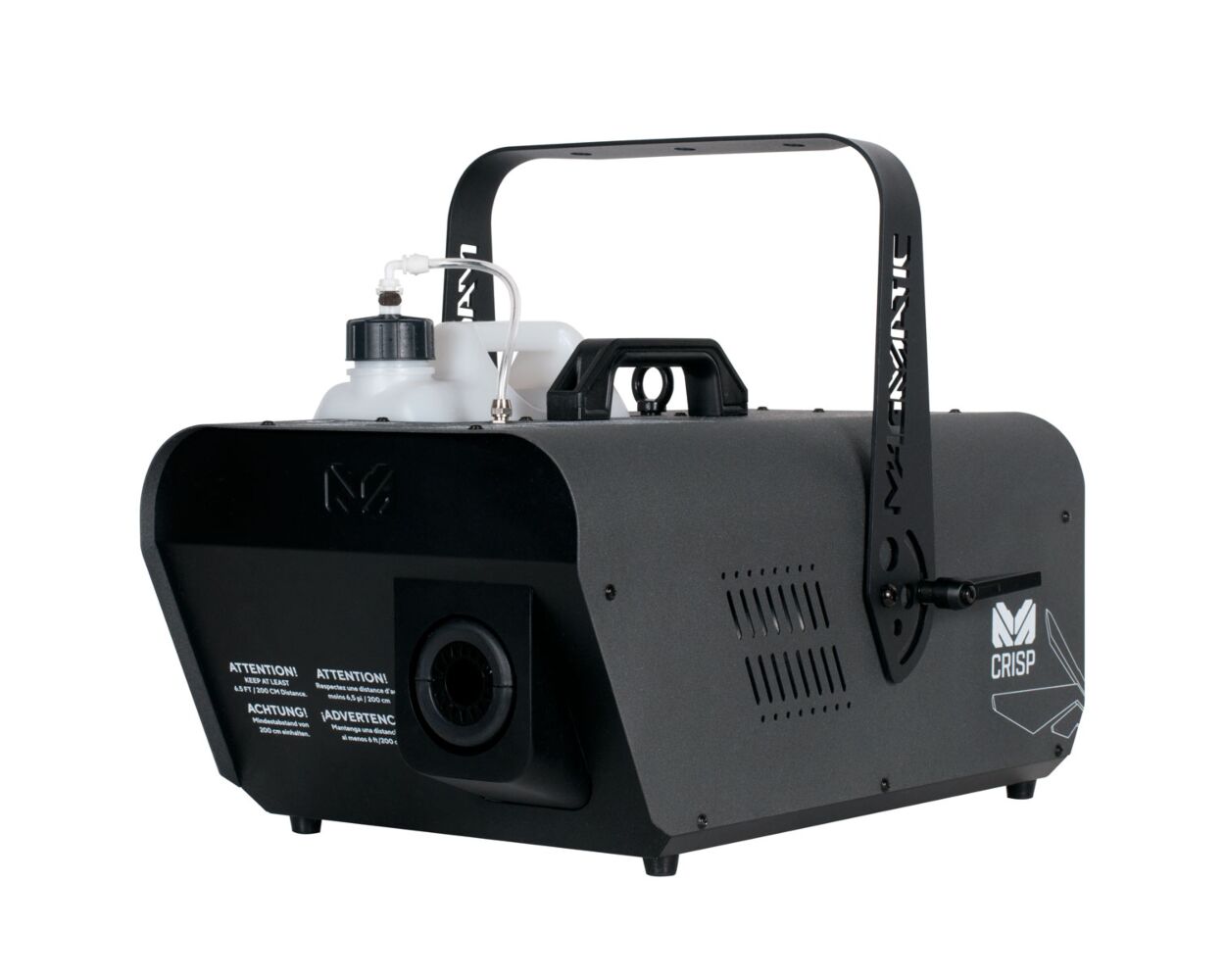

CRISP™ is a high volume compact lightweight snow machine with advanced technology providing adjustable snowflake size, along with a lower operating noise for noise-sensitive environments. The new the Auto-Clean feature, provides less clogging and requires less maintenance. Features include an easy-to-use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control, durable aluminum housing, and optional wired and wireless remote control options.

Features

1,250W High Volume Snow Machine
Lower Operating noise for Noise-sensitive Environments
Auto-Clean Process
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Optional MaagFLY Wireless DMX Transceiver
Optional MagRF
Optional MagRemotes (VIDI)

Resources

DMX/ RDM Traits

CRISP – DMX Traits

Guides/ Manuals

Related Categories

Specifications

KEY FEATURES

High-Powered 1,250W Snow Machine

Lower Operating noise for Noise Sensitive Environments

Auto-Clean Process

Compact Robust Design

Onboard LCD Touch Control Panel

Dynamic Effects

Snow Adjustment: 0-100%

Fan Speed Adjustment 50% or 100%

Self-Clean Function

Control

.2 Card Inputs (For optional Magfly, & MagRF cards)

RDM (Remote Device Management)

Control Protocol: DMX512.DMX Modes: 3 (1 / 3 / 5)

On-Board Timing Control

5 Factory Presets

4-pin Wired Remote Input

Touch Screen Display

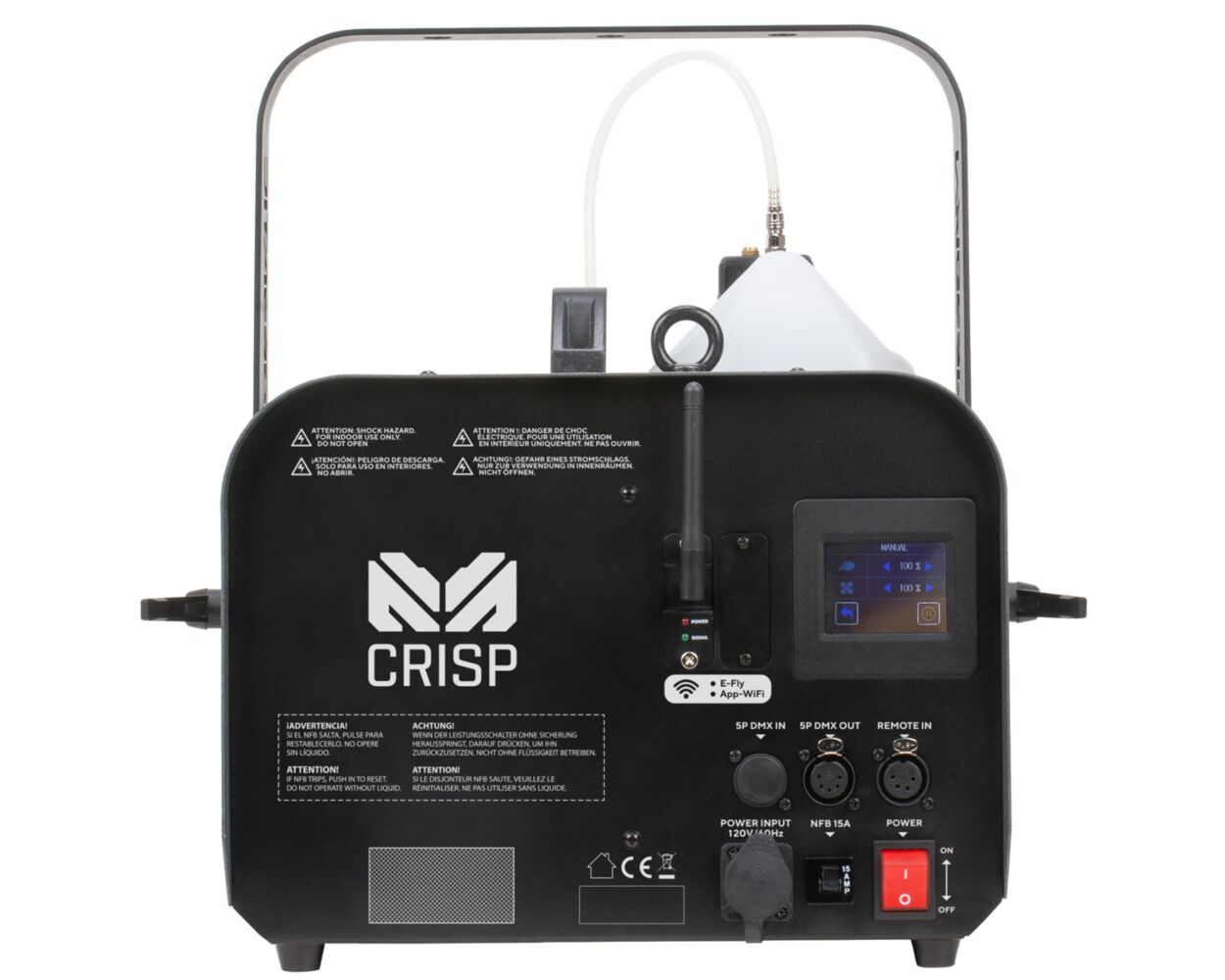

Connections

Data Connectors: 5-pin locking XLR In/Out

4-pin Connector for optional wired remote

Locking Power Connector

Compatible Fluid

Recommended fluid: Atmosity Premium Snow Fluid. APS-1LC (Concentrate = 20L) , APS-4LC (Conentrate = 80L), APS-10LC (Concentrate = 200L) APS-4L, APS-20L

Construction / Physical / Performance

Dimensions (LxWxH): 20.81in x 15.94in x 15.95in / (518 w/Antenna) x 415 x 405mm

Weight: 33.5 lbs / 15.2kg

External Visual Fluid Level Detection

Fluid Tank Capacity: 5L.

Fluid Consumption: 16.9oz/min / 500ml/min

Electrical

Power Consumption: 1250w

Input Voltage: U.S. Version – 120VAC @ 60Hz and Europe Version – 230 – 240VAC @ 50Hz

Breaker Size: 15A (120V version).Breaker Size: 9A (230-240V version)

Certifications / Qualifications / Thermal

IP Rating: IP20, dry location

Maximum Temperature (Ambient): 104° F (40° C)

Exterior Surface Temperature: 122° F (50° C)

What’s Included

Hanging Bracket

14 AWG Locking Power Cable

Optional Accessories

MagFLY Card

MagRF Card

Ratings / Approvals

CE | cETLus | FCC | IP20

Specifications and documentation subject to change without notice.

Weight	2 oz
Dimensions	2 × 2 × 2 in
