RDM Splitter 1×6 RJ45 1/2 Rack / NRD112

Name: RDM Splitter 1x6 RJ45 1/2 Rack / NRD112
SKU: E3166
Availability: InStock

$496.00

In stock

SKU: E3166 Replacement Part For: New Tag: New

Description
Additional information

RDM 645

SKU# NRD112

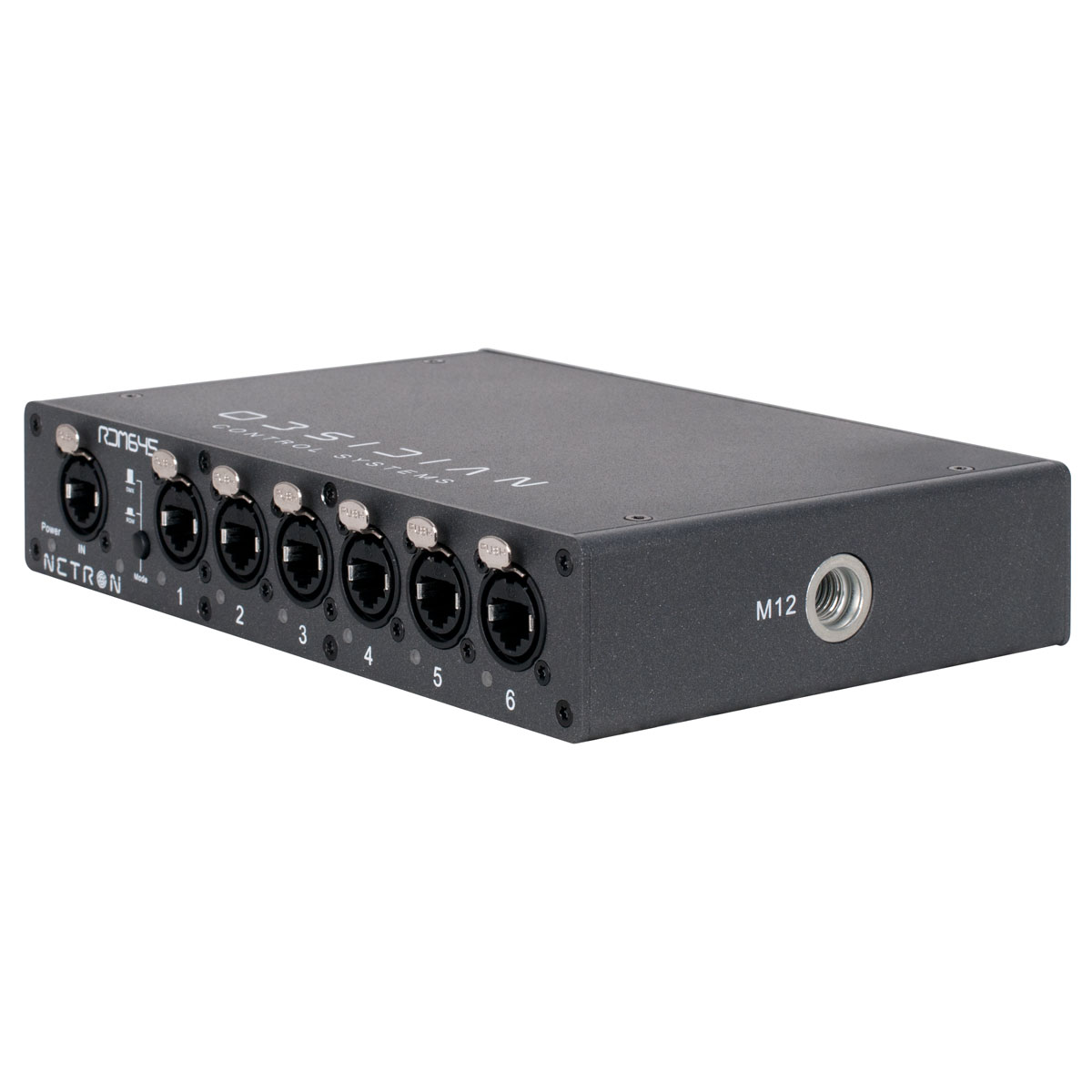

The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.

Features

Key Features

(6) Locking RJ45 Ethernet DMX outputs
DMX and RDM compliant
Optically isolated ports
Power / DMX Through connectors
Powder-coated aluminum ½ rack housing

For technical details and documentation of NETRON devices please visit

Specifications

Mounting

Standalone
Truss-mount (M10 or M12 mounting hole)

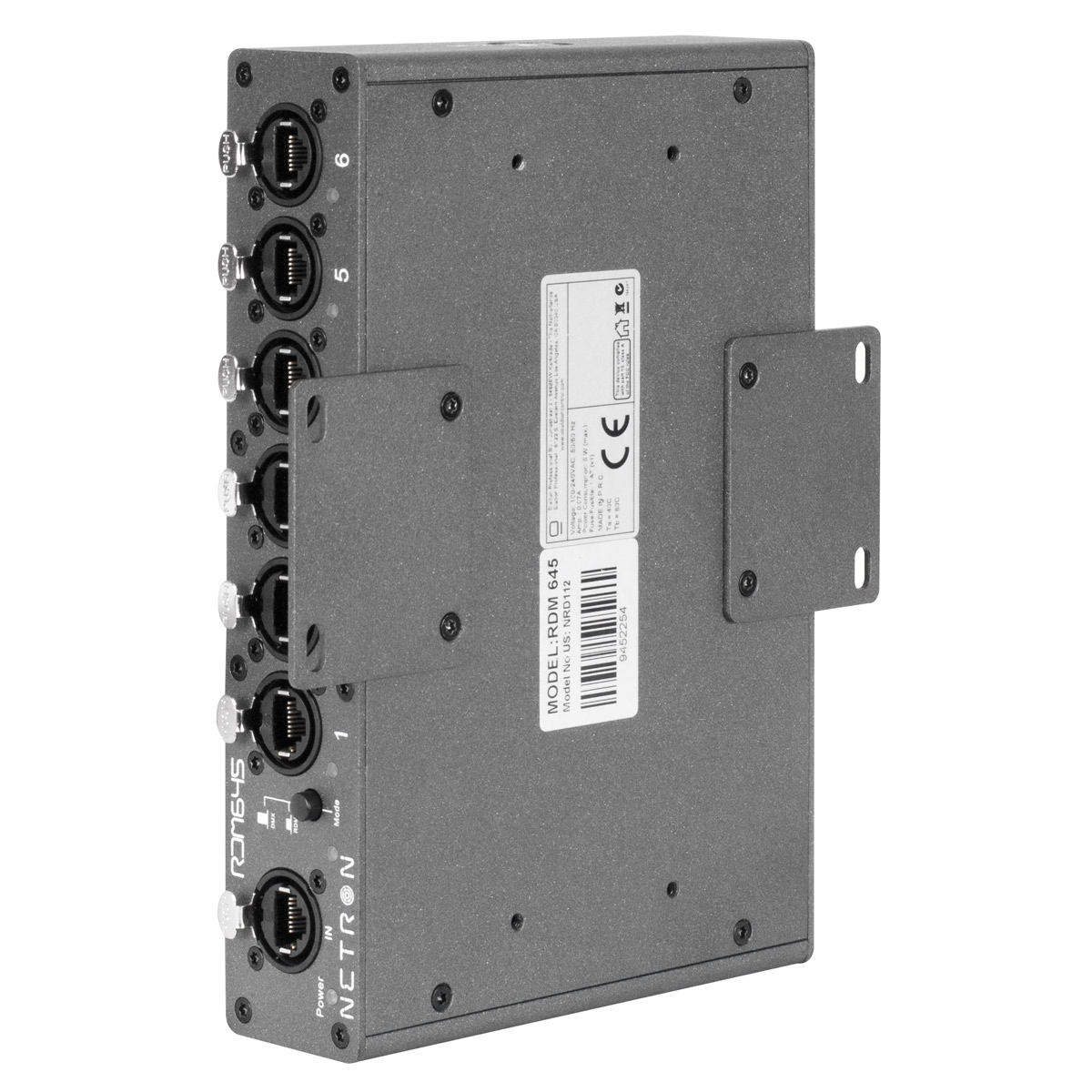

Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)

Connections

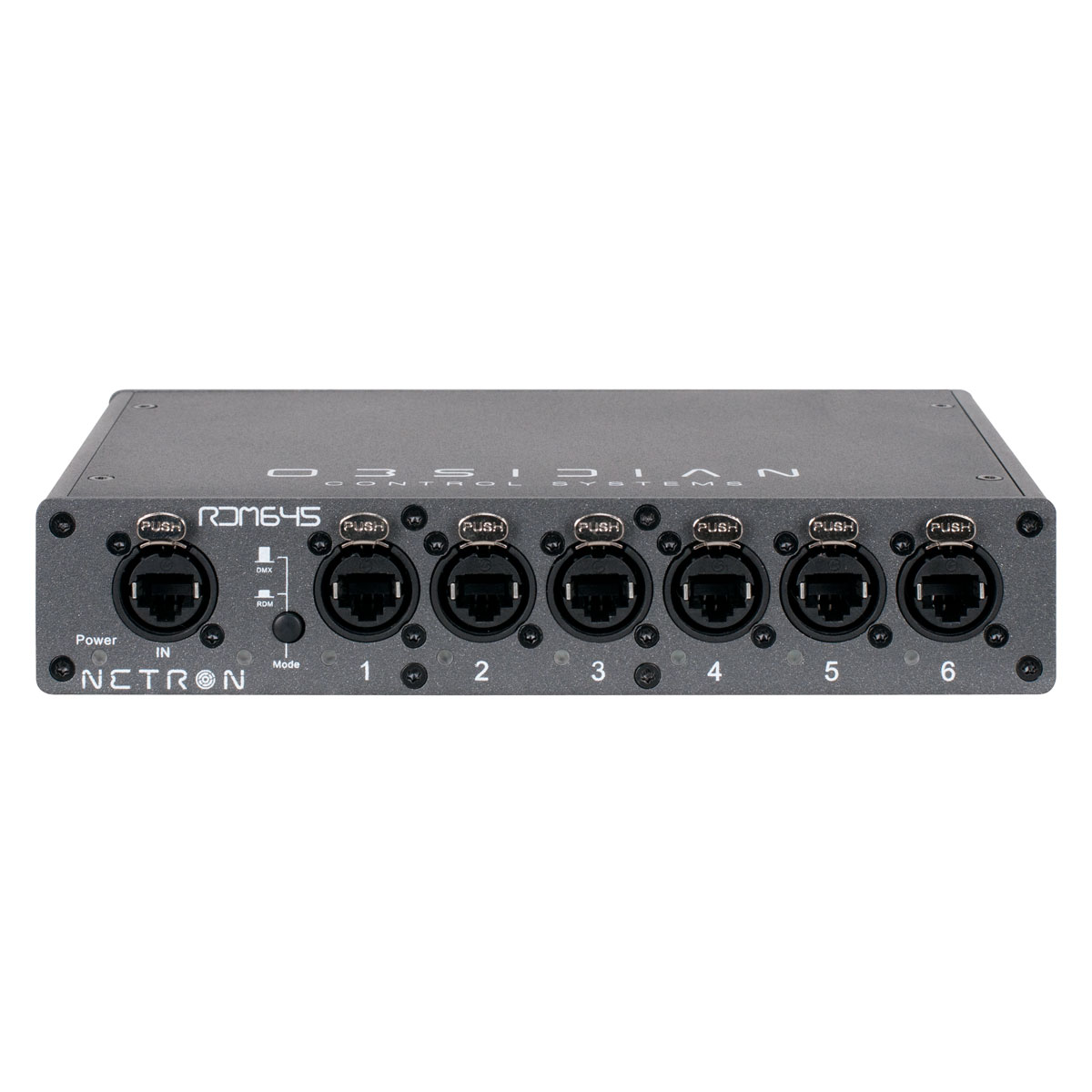

Front
Locking RJ45 Ethernet DMX Input
(6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
RDM Enable

Back
Locking RJ45 Ethernet DMX Input (parallel with front)
Locking RJ45 Ethernet DMX Through
Terminate
Locking Power In/Thru

Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

Electrical

100-240 V nominal, 50/60 Hz, 10W

Included Items

1.5m Locking power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps

APPROVALS / RATINGS

CE | cETLus | FCC | IP20

Specifications and documentation subject to change without notice.

Weight	3.3100 oz
Dimensions	8.6600 × 5.5100 × 1.7700 in
MPN	90758150
