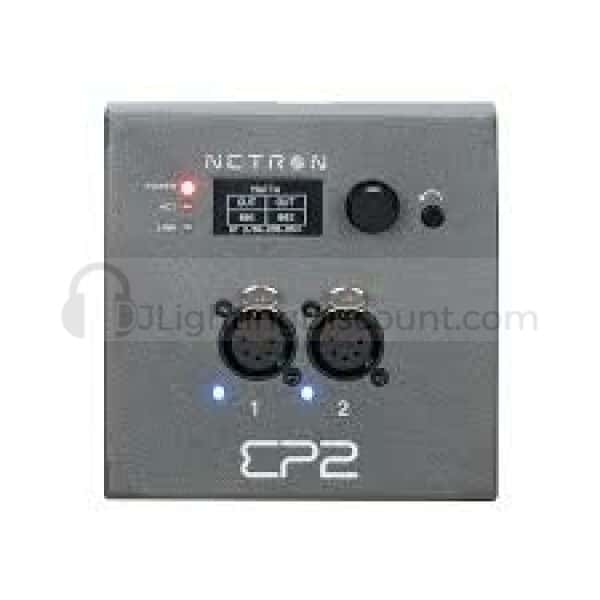

Netron EP2 Compact Ethernet to DMX with 2 RDM Ports NRE034
$390.00 $370.50
-
The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.
It is configurable via the integrated OLED display and encoder, or the internal web remote. EP2 is powered over Ethernet or via the convenient USB-C connection.
In stock
Netron EP2 Compact Ethernet to DMX with 2 RDM Ports NRE034
Features
Key Features
- RDM, ArtNet and sACN support
- Factory and user presets for plug and play setups
- POE or USB-C powered
- 1.3” OLED Display with rotary knob
- Remote configuration via internal webpage
- Powder-coated compact metal housing
- Connect to ONYX PC for a full four Universe Solution
- In-wall, On-Wall, Truss and Standalone mounting
- Unlocks ONYX NOVA 4-Universe License
For all technical details and documentation for NETRON devices please visit
Related Categories
Specifications
Mounting
Standalone (backbox included)
Truss-mount (M10 + M12 mounting hole)
In or On-wall 2-Gang (US) or 50mm round (EU)
Truss-mount (M10 + M12 mounting hole)
In or On-wall 2-Gang (US) or 50mm round (EU)
Connections
Front
(2) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
(2) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Side
(1) Locking RJ45 Ethernet network connections (POE)
USB-C power option (5V, 2A)
(1) Locking RJ45 Ethernet network connections (POE)
USB-C power option (5V, 2A)
Physical
Length: 4.6 in. (117.6mm)
Width: 4.5 in. (114.0mm)
Height: 3.5 in. (89.1mm)
Weight: 1.76lbs. (0.8kg)
Length: 4.6 in. (117.6mm)
Width: 4.5 in. (114.0mm)
Height: 3.5 in. (89.1mm)
Weight: 1.76lbs. (0.8kg)
Electrical
USB-C 5V
POE 802.3af
USB-C 5V
POE 802.3af
| Weight | 10 oz |
|---|---|
| Dimensions | 6 × 6 × 4 in |
