THRILL Vertical Fogger, US

Martin Professional – THRILL Vertical Fogger, US – 92215403

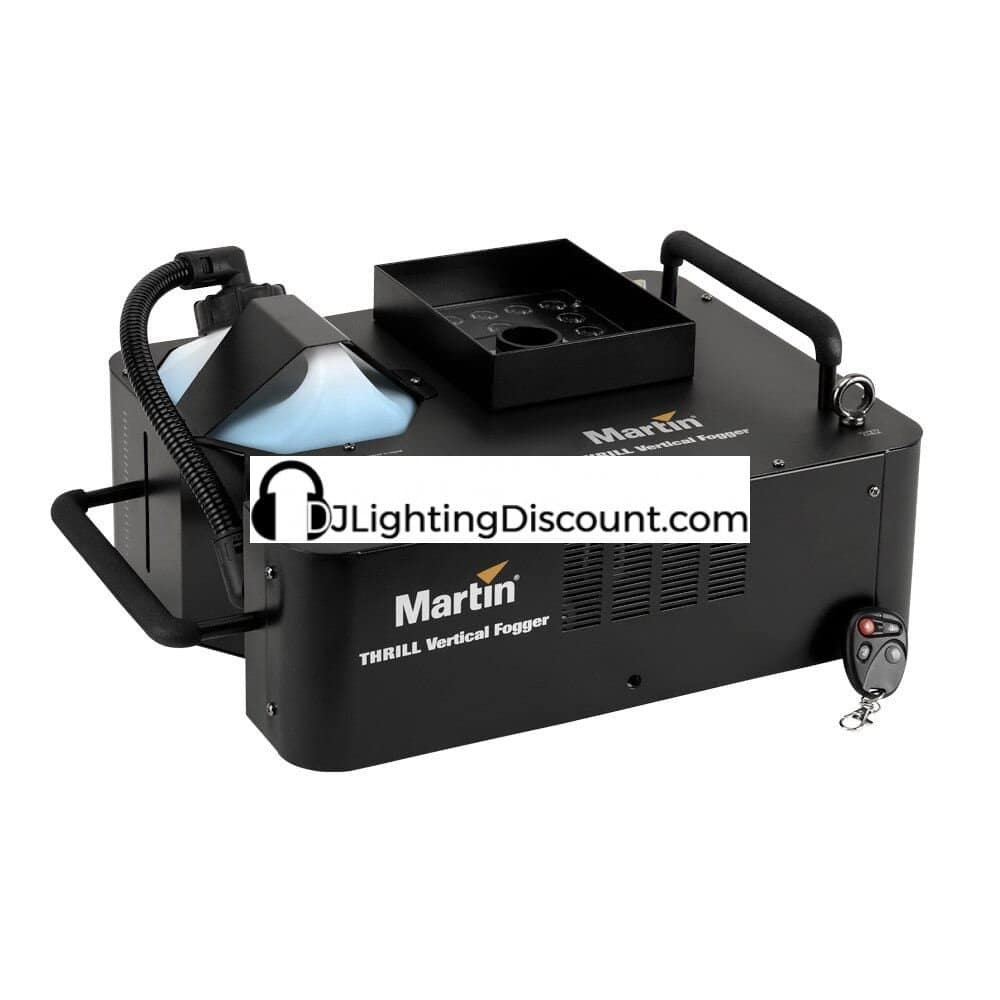

The Martin THRILL Vertical Fogger is a high powered, 1400 watt atmospheric fog machine featuring built in 21 x 3W RGB LED’s, that has the ability to simulate pyrotechnical effects, CO2 style jets, or “cryo” white dense cloud effects. Fire this machine up and your party, show, event or business presentation is bound to draw attention. Get maximum attention when you instantly fill the room with a hefty blast of fog, light and simulated jet noise. With 21 bright R/G/B LEDs, the THRILL Vertical Fogger offers virtually limitless color mixing. Beyond just lights and fog, the nozzle is designed to produce a boisterous noise simulating a natural fissure in the earth—creating an astonishingly real “volcanic” effect. And you can link multiple units for even bigger impact. Control is simplified with the included 4-channel wireless remote control or via DMX for more advanced users.

Martin THRILL Vertical Fogger Features:

• Fog effects at most any angle including upside-down
• 1,400 W heat exchanger produces 480 m³ (17,000 ft³) per min. fog output
• Rapid 5-minute heat-up time
• 2.5 l fluid reservoir for less frequent fill-ups

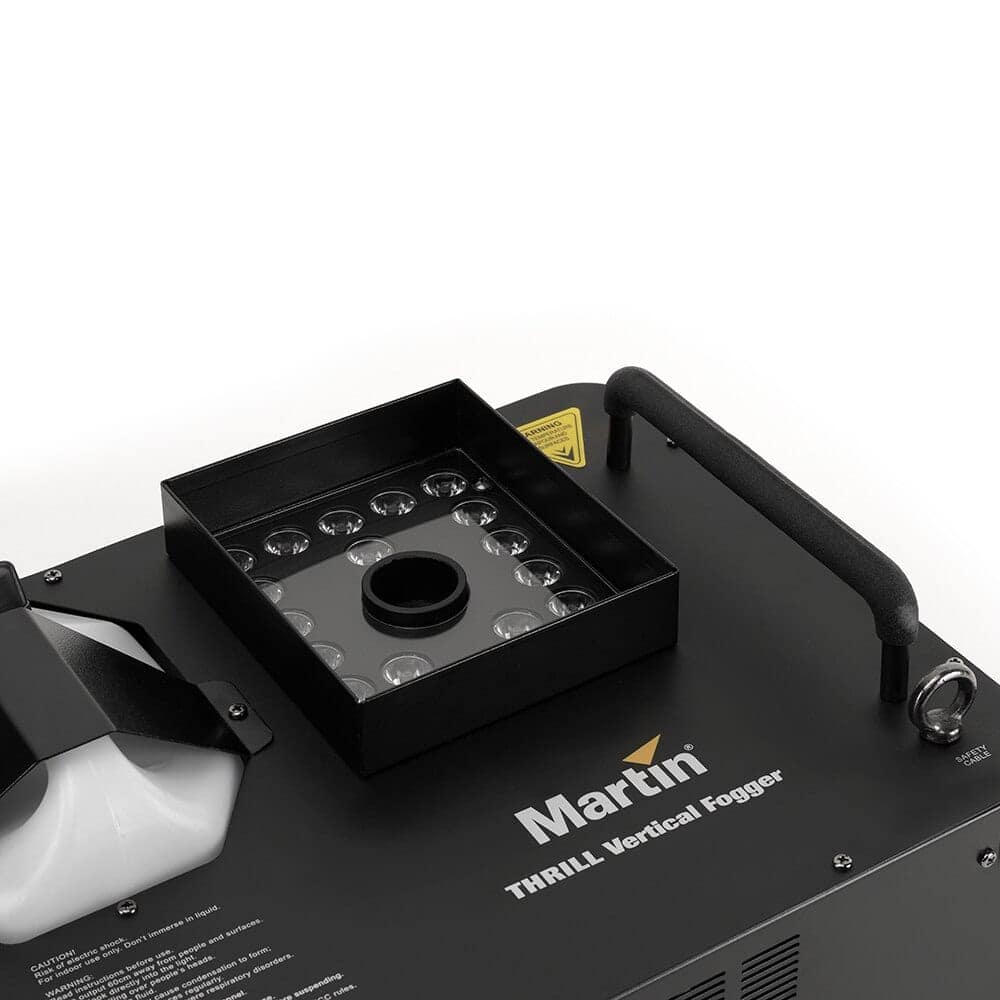

• Create ambience with 21 x 3 W single LEDs (7 each R, G, B)
• 9 vibrant pre-programmed colors
• Wireless 4-channel remote control included for fast and easy operation
• DMX operable for individualized control and design
• Included adjustable bracket for mounting
• Common IEC mains inlet – mains cable included by region

Martin THRILL Vertical Fogger Specifications:

Physical

• Length: 455 mm (17.9 in.)
• Width: 305 mm (12.0 in.)
• Height: 199 mm (7.8 in.)
• Height with hanging bracket: 309 mm (12.2 in.)
• Weight, dry: 7.3 kg (16.1 lbs.)
• Weight, filled: 8.9 kg (19.7 lbs.)

Dynamic Effects

• Color mixing: RGB
• Color selection: 36 color presets
• Electronic dimming: 0 – 100%
• Strobe and pulse effects: Variable speed and action, random strobe
• Electronic ‘shutter’ effect: Instant open and blackout
• Fog: On/Off

Performance

• Coverage volume: 480 m3 (17,000 ft3) per minute
• Maximum fluid consumption: 60 ml per minute
• Maximum operating time at full output: 30 seconds
• Ready time: 8 minutes

Control and Programming

• Control options: DMX, 4-channel wireless remote control, pushbutton on/off
• Control parameters with wireless remote: On/off operation
• Control parameters with DMX: Full-featured
• DMX channels: 8
• User interface: Control panel with LCD display
• DMX compliance: ANSI E1.11 – USITT DMX512-A

Optics

• Light source: 7 x 3 W R LEDs
• Light source: 7 x 3 W G LEDs
• Light source: 7 x 3 W B LEDs
• Minimum LED lifetime: 30 000 hours (to >70% luminous output)*

Construction

• Housing: Steel
• Color: Black
• Heat exchanger: 1400 W, thermally protected
• Fluid pump: Oscillating piston, high pressure
• Fluid management: Fluid out sensing, sight glass
• Fluid reservoir: 2.5 liter, removable
• Hanging bracket: Integrated adjustable yoke
• Safety attachment points: 3-threaded inserts, front/rear/side (M8 eye-bolt included)
• Wireless remote control unit (included): 4-channel, 30 m (100 ft.) range

Installation

• Mounting: Standing or hanging
• Orientation: Up to +/- 45° from horizontal
• Mounting points: Bracket for single/double rigging clamp, M12 or ½”
• Clearance around machine: 600 mm (24 in.)

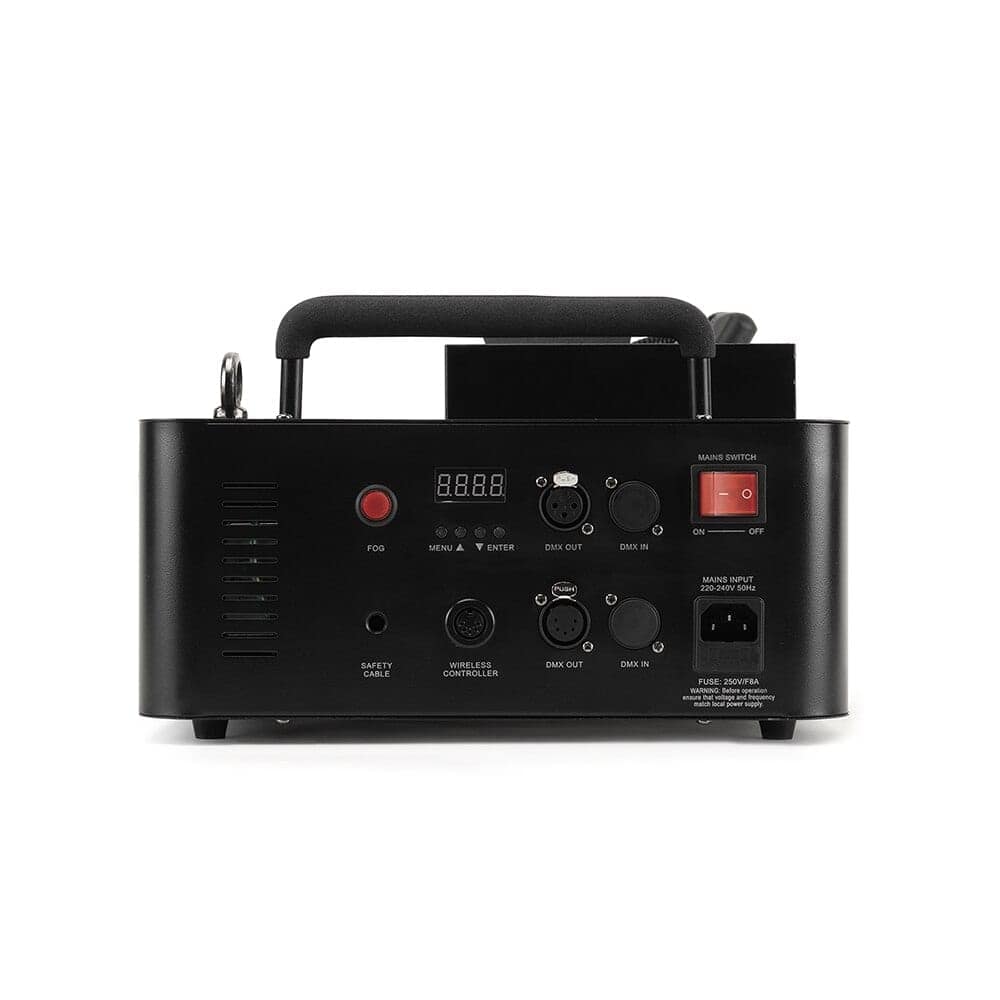

Connections

• AC power: IEC male inlet, C14
• DMX: 3- and 5-pin locking XLR
• Wireless remote receiver: DIN 41524, 5-pin, 45°, 180° inlet

Thermal

• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 5°C (41°F)
• Exterior surface temperature, steady state: 50°C (122°F)
• Maximum nozzle temperature: 300° C (572°F)

Approvals

• EU safety: EN 60355-1, EN 62233, EN 62479, EN 60598, EN 62471, EN 60950-1
• EU EMC: EN 55103, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3
• EU RTTE (wireless remote): EN 300220-1, EN 300220-2, EN 301489-1, EN 301489-3
• Australia/NZ (pending): RCM

Ordering Information

• THRILL™ Vertical Fogger, US model: P/N 92215403
