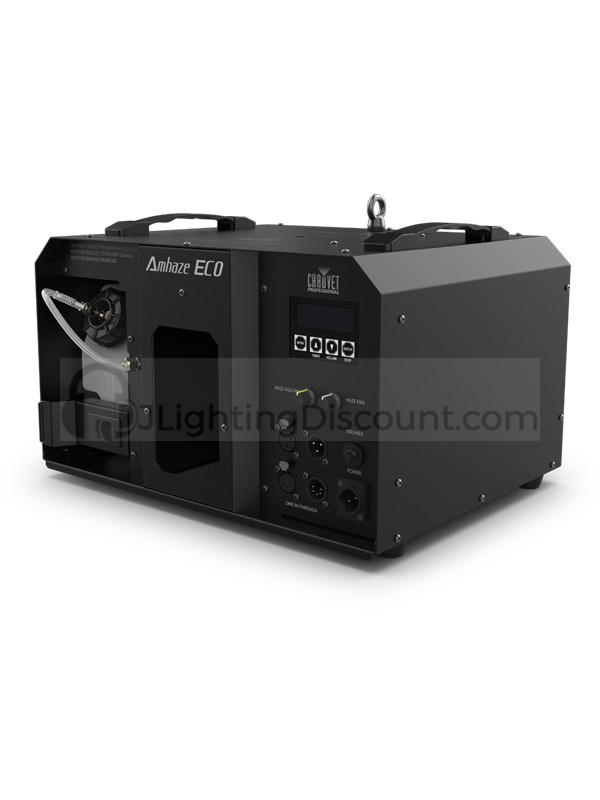

AMHAZE ECO

AMHAZE ECO - Image 2

AMHAZE ECO - Image 3

AMHAZE ECO - Image 4

AMHAZE ECO - Image 5

AMHAZE ECO

$750.00

-

In stock

SKU: C73229 Replacement Part For: New

Description
Additional information

Tested to AEA standards Includes: Integrated Flight Case Control: 3-pin DMX, 5-pin DMX

Professional water-based haze machine
30-sec heat up time nearly eliminates wait time for operation
Continuous output with no reheating required
Tour-ready with an M12 threaded insert for truss clamps
Efficient fluid consumption lasts more than 8 hours on a single fluid container
Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs

DYNAMIC EFFECTS

Fan Speed: 120 cfm
Low Fluid Shutdown: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 15.86 in (403 mm) x 12.20 in (310 mm) x 10.07 (256 mm)
Dimensions (shipping size): 20.27 x 16.53 x 12.80 in (515 x 420 x 325 mm)
Weight: 25 lb (11.4 kg)
Weight: (shipping weight): 28.8 lb (13.5 kg)
Threaded Bolt: M12
Exterior Color: Black
Tank Capacity: 0.92 gal (3.5L)
Fluid Consumption: 7.5 ml/min (0.12 gallons/hour)
Maximum Run time: >7.5 hours @ full volume
Rest on the floor or mount in the rig with the M12 threaded insert for truss clamps

CONNECTIONS

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDM DMX Channels: 3
DMX Channels: 3
Modes/Personalities: 1 personality
On-Board Control: Yes

ELECTRICAL

Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current: 1,230 W, 10.25 A @ 120 V, 60 Hz
Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
Heat-up Time: 30 sec

CERTIFICATIONS / QUALIFICATIONS

MET, CE
MET Listing Number: E115095
US Safety: UL 499
Canadian Safety: CSA C22.2 No. 64-10
IP Rating: IP20, dry location
Minimum distance from flammable material to all exterior surfaces of the product: 3.3 ft (1 m)
Maximum exterior surface temperature (Tc): 127 °F (53 ℃)

WHAT’S INCLUDED

Amhaze Eco
Seetronic Powerkon IP65 power cord

REQUIRED ACCESSORIES

Compatible Mounting Options: M12 Bolt/Clamp
PHF Haze Fluid

OPTIONAL ACCESSORIES

Clamps
Neutrik® powerCON® cables
DMX Cables

Weight	555 oz
Dimensions	10 × 12 × 17 in
