Chauvet LightingSKU: C85432
Price:
$2,402.50

Compatible with

Fixture model:

Description

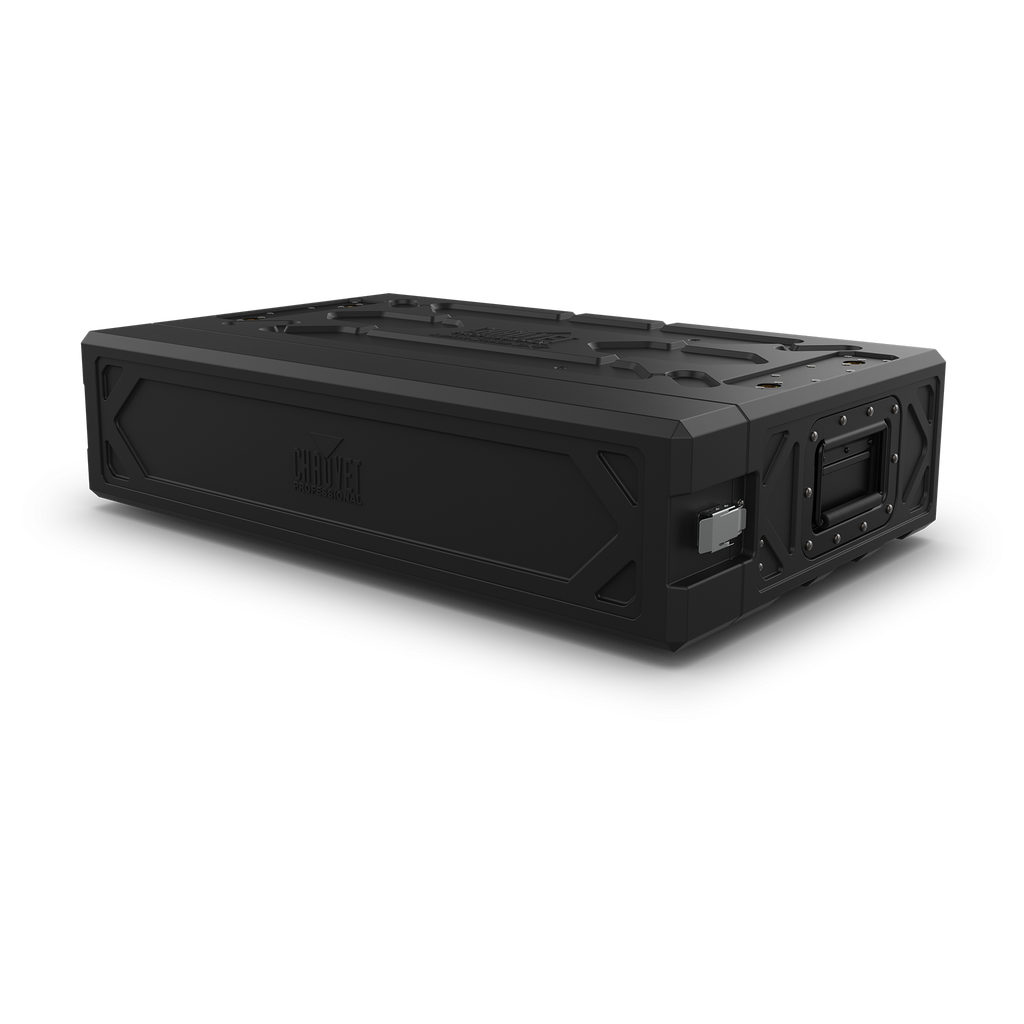

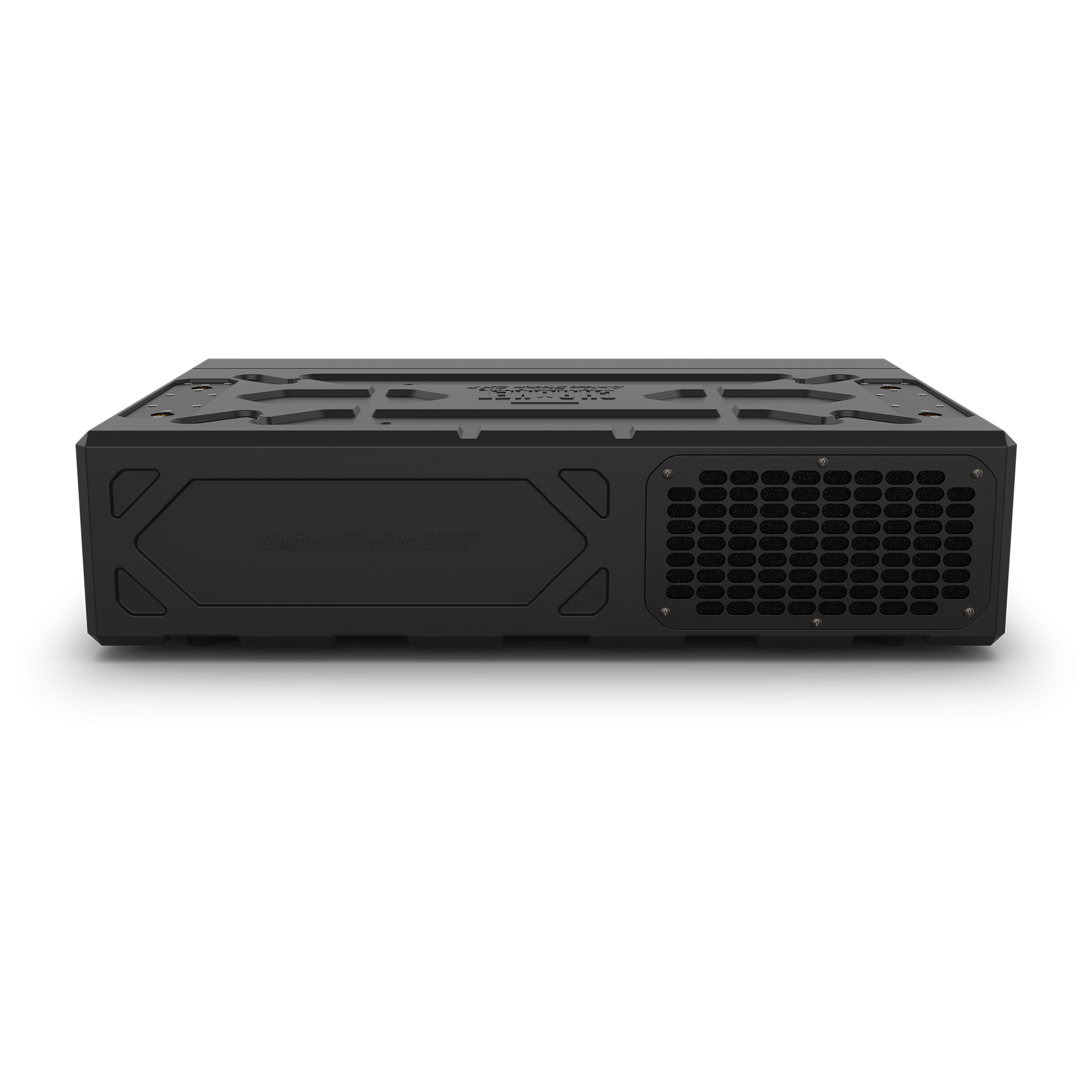

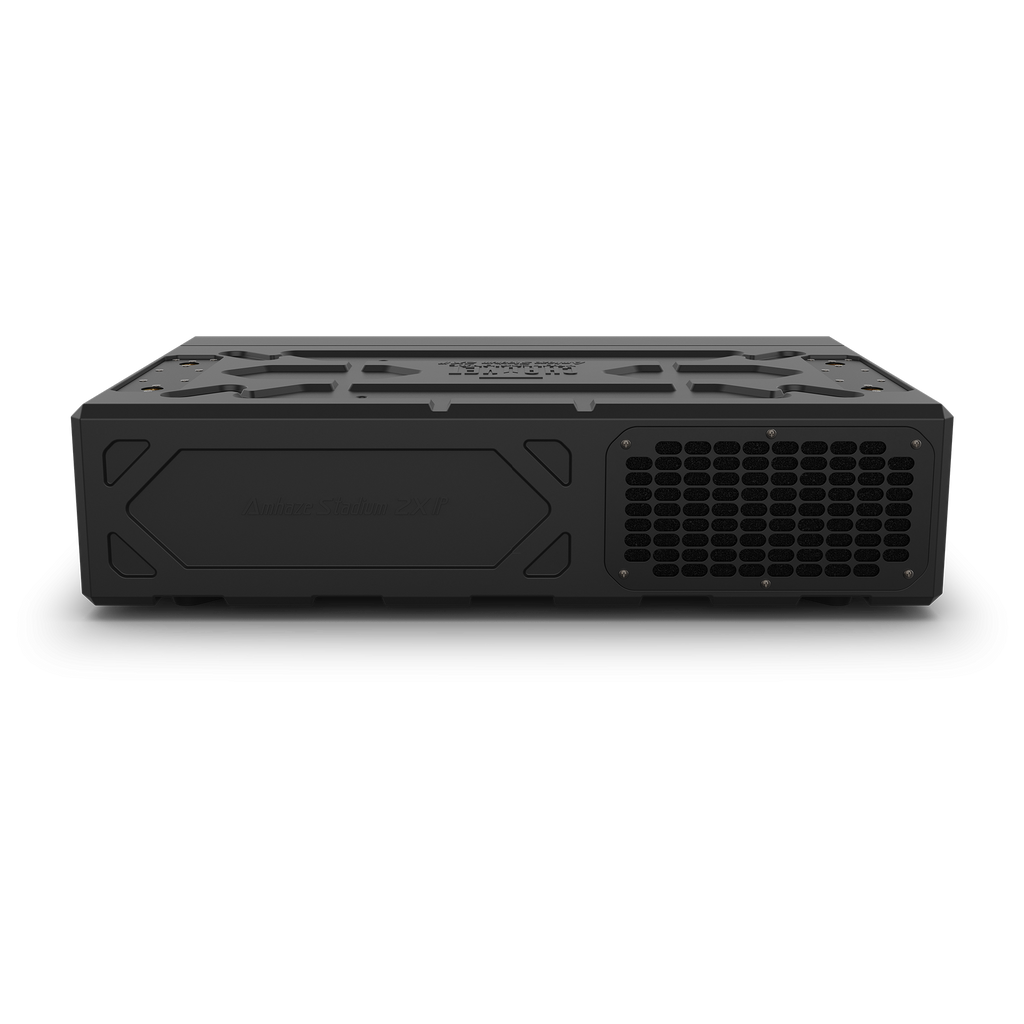

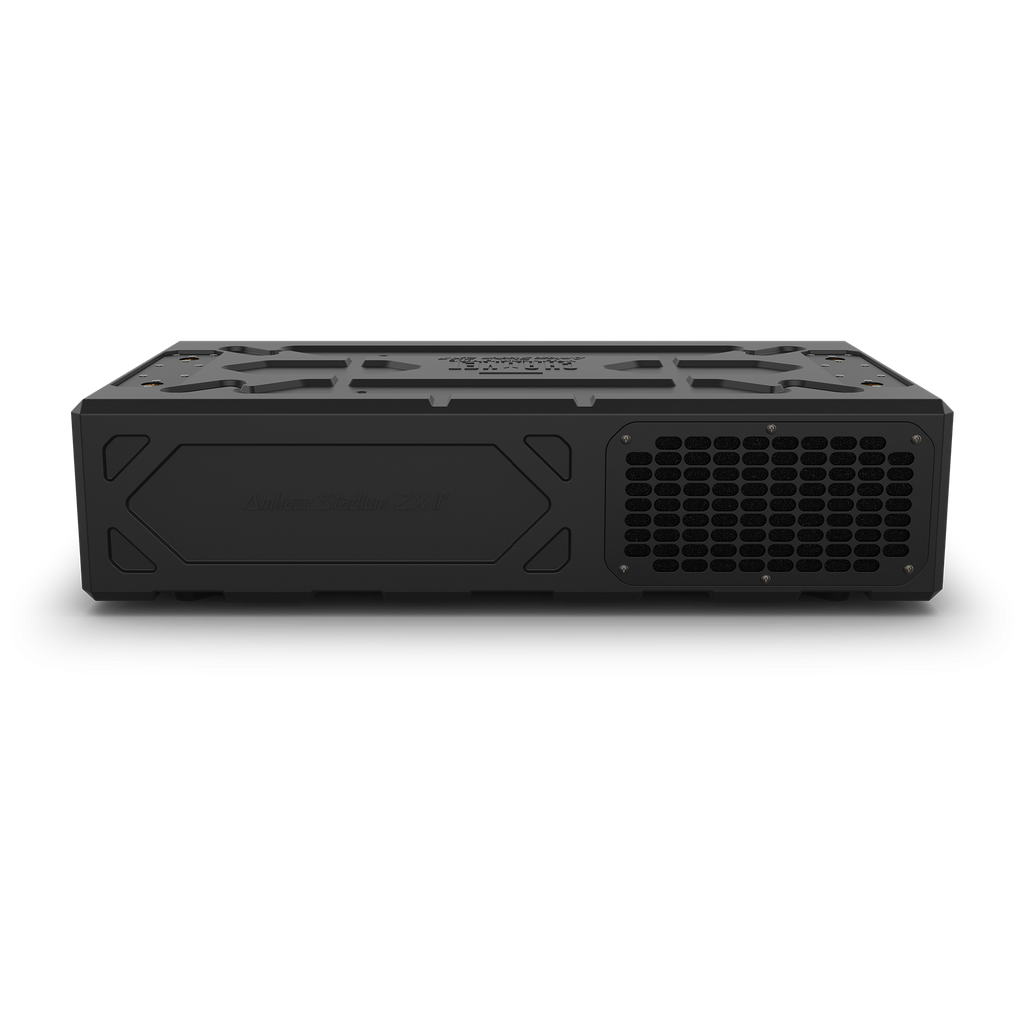

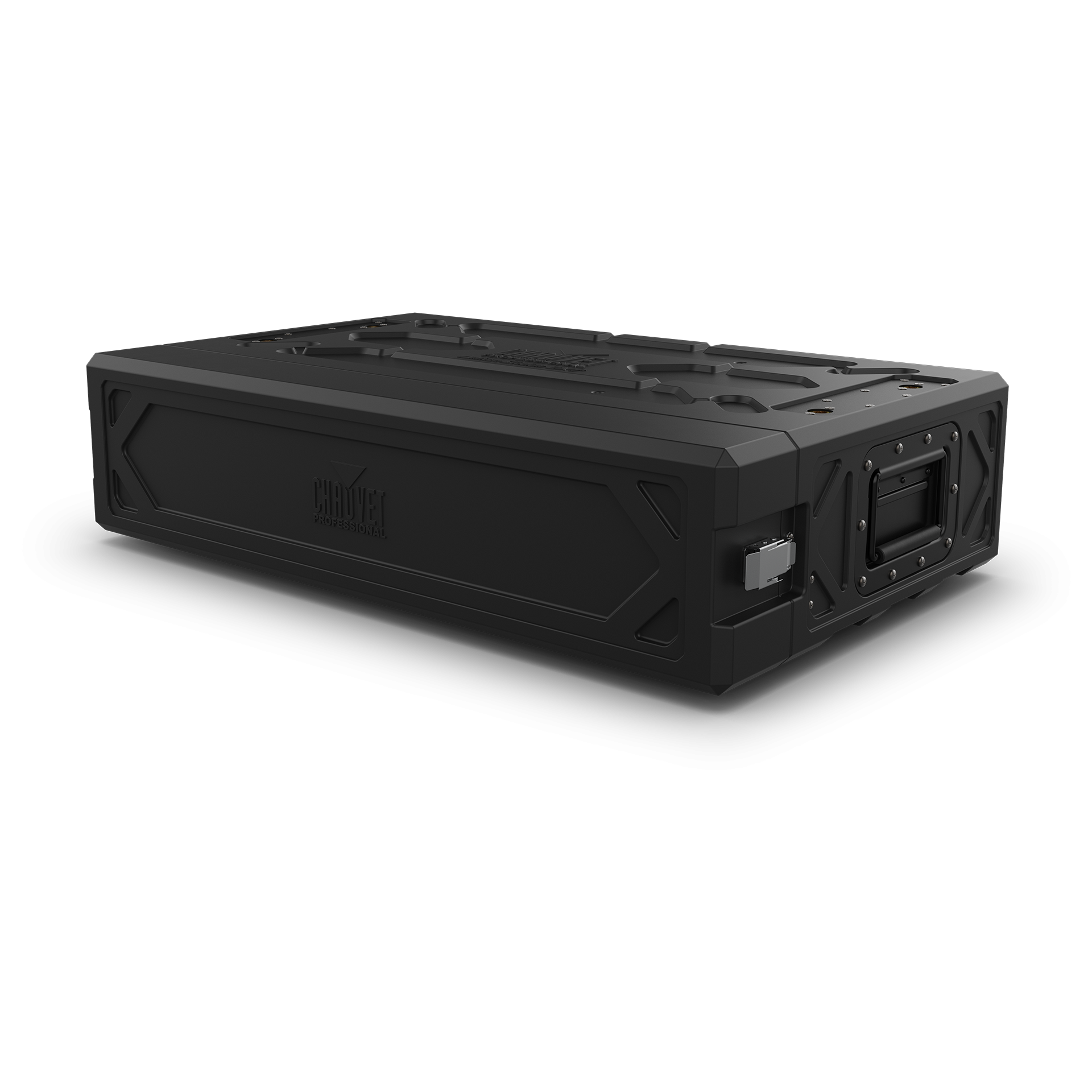

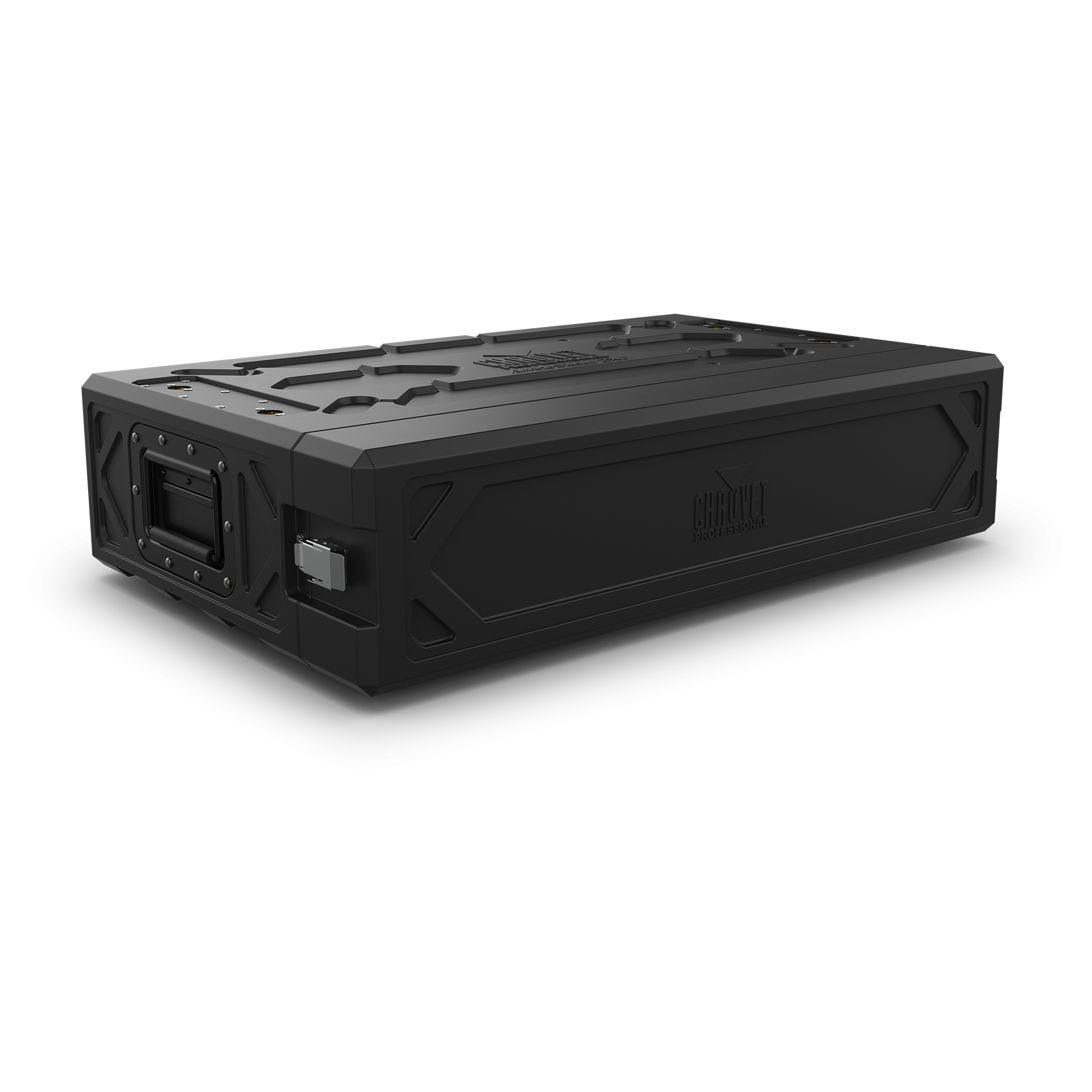

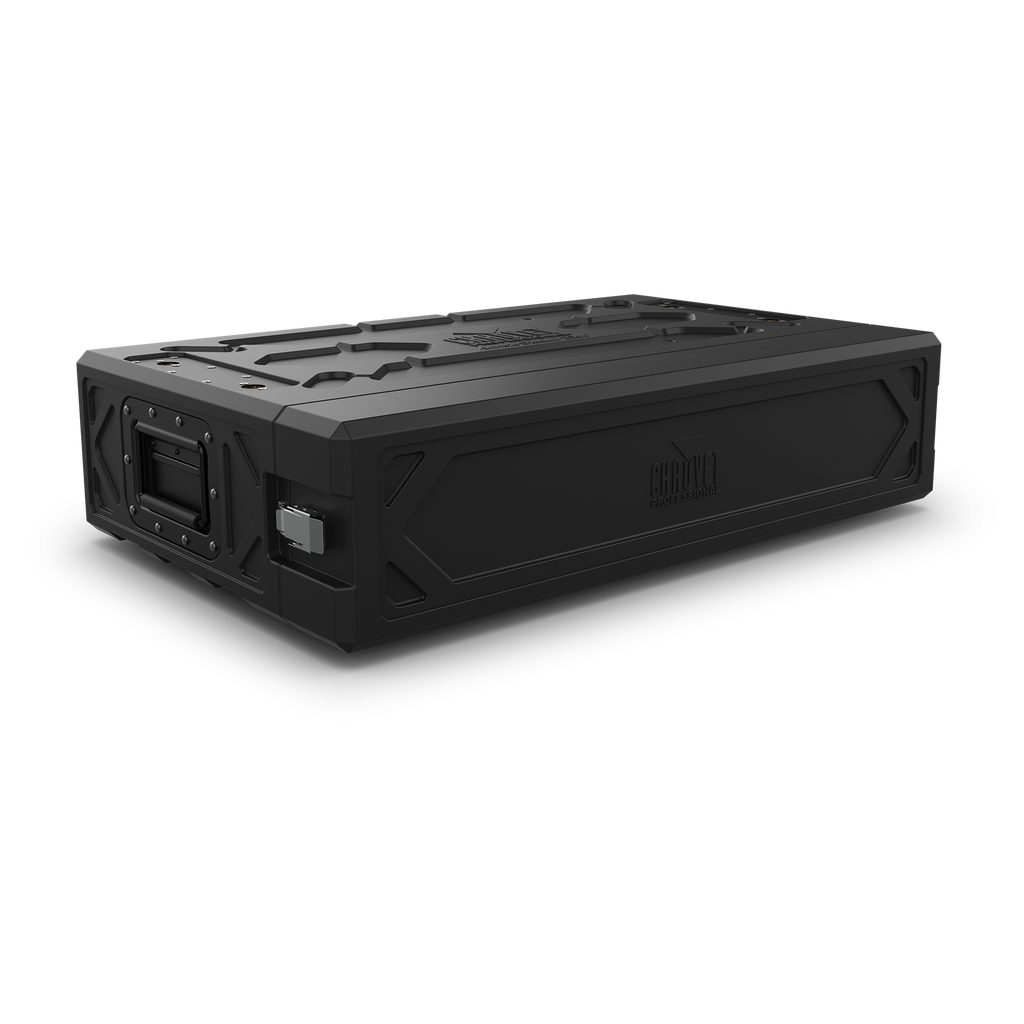

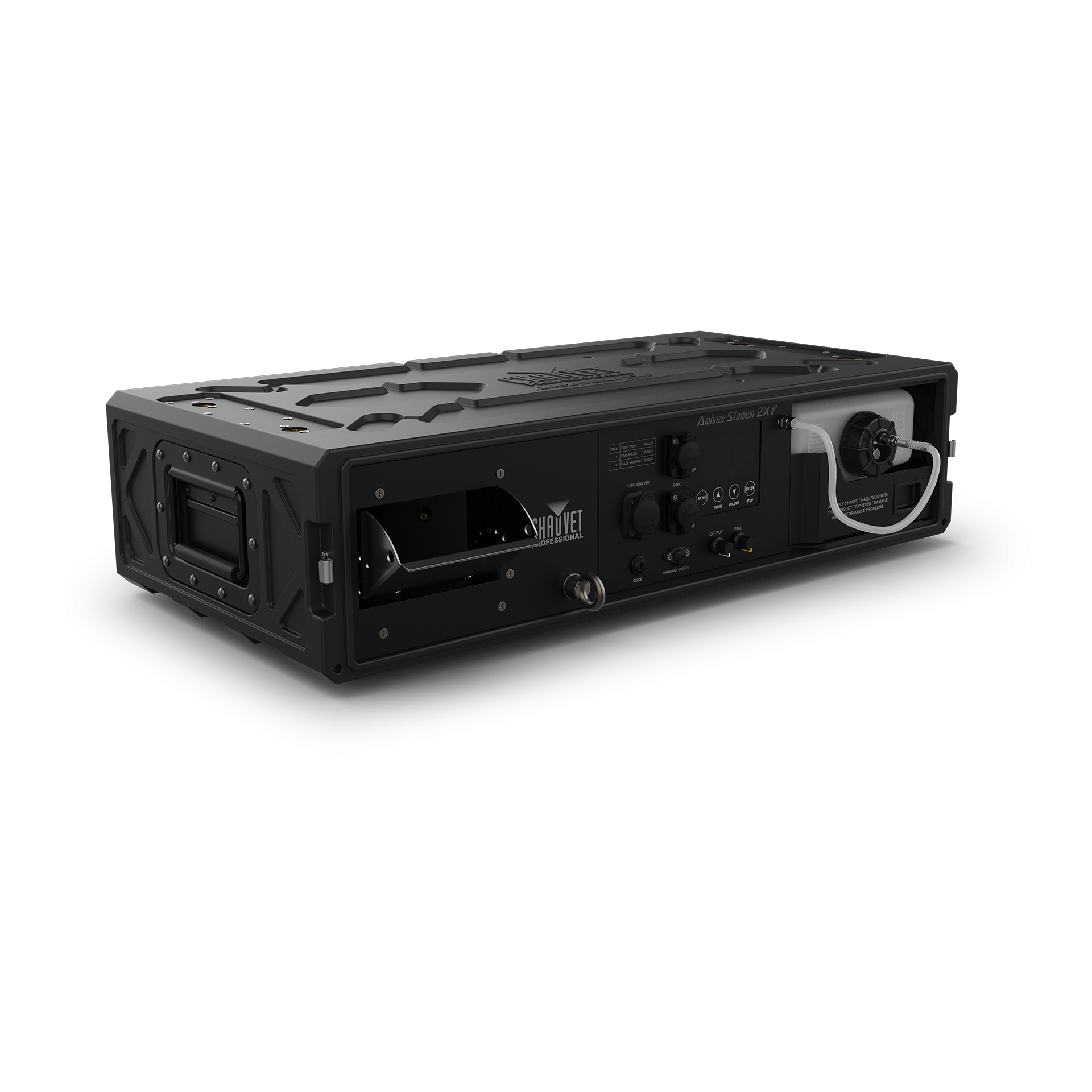

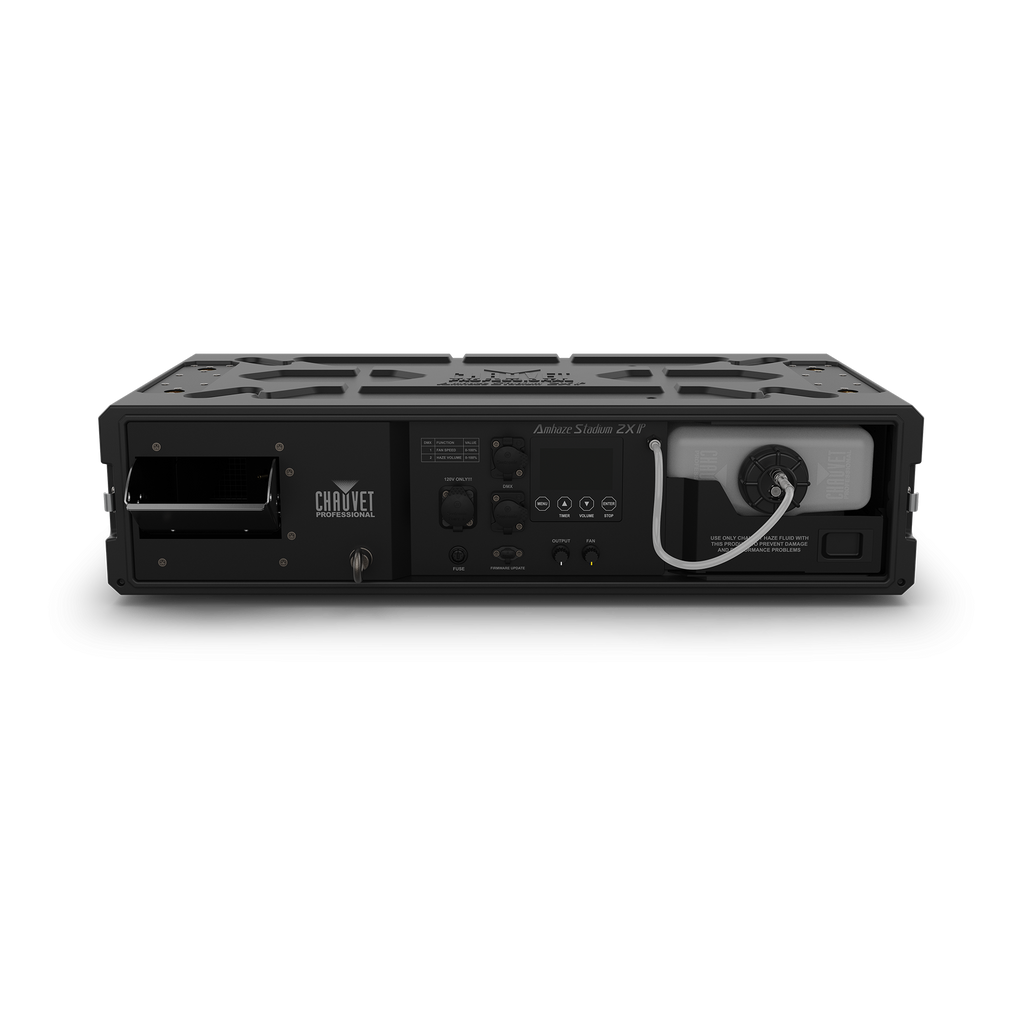

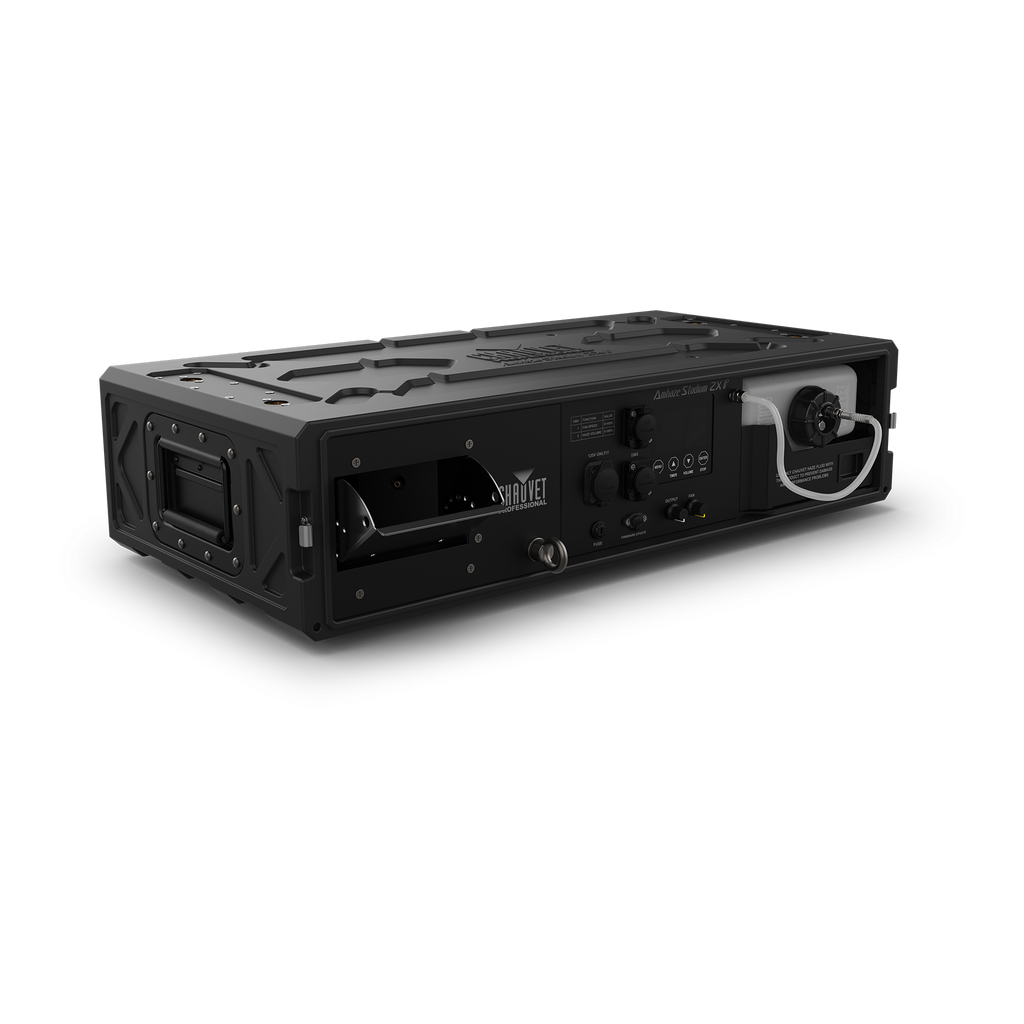

A rugged and compact outdoor-rated hazer in a self-contained flight case that stacks easily and conveniently packs all accessories in its removable cover. Amhaze Stadium 2X IP features a full-color display and precise manual or DMX adjustment of its variable haze output and blower speed. Floor mount or install into the rig with standard truss mounting brackets, and then direct haze flow with its adjustable output nozzle.

Amhaze Stadium 2X IP is built for the rigors of touring with a design that delivers reliability, longevity and easy serviceability. An innovative heater system produces continuous output and minimizes maintenance, while a peristaltic pump eliminates contact with fluid, removing its risk of corrosion. A USB-C port for easy software upgrades in the field completes this fully featured professional unit.

Features

Professional Haze Quality

This compact unit produces high-quality, even haze ideal for enhancing live lighting effects.

Outdoor Use Ready

The hazer is designed for safe and reliable operation during temporary outdoor or wet-weather events.

Continuous High Output

Delivers uninterrupted haze output powerful enough to fill medium to large-sized venues.

Serviceable Heater Assembly

The innovative heater assembly is fully serviceable with a replaceable core, ensuring maximum efficiency, longevity, and easy maintenance.

Clog-Resistant Technology

An innovative heater design significantly reduces clogging for smooth, reliable operation with minimal maintenance.

Directional Haze Control

An adjustable vent louver allows you to precisely direct the flow of haze where it is needed most.

Integrated Flight Case

It ships in a rugged, tour-ready flight case that includes a removable cover and convenient accessory storage.

Standard Mounting Compatibility

The unit is compatible with standard Omega mounting brackets for quick, easy, and secure installation.

Versatile Haze Control

Precisely adjust haze output and blower speed using DMX or the onboard manual control knobs.

Complete Your Rig

Ensure flawless results with gear designed to complement and complete your professional setup.

Specifications

Download Product Specs

Dynamic Effects

  • Fan Performance

    164 cfm

  • Low Fluid Shutdown

    Yes

Construction/Physical

  • Dimensions

    26 x 16 x 6.75 in (660 x 406 x 171.45 mm)

  • Weight

    48.8 lb (22.13 kg)

  • Exterior Color

    Black

  • Housing Material

    Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel

  • Tank Capacity

    1.32 gal (5 l)

  • Fluid Consumption

    9.5 ml/min

  • Maximum Runtime

    8 hrs

Connections

  • Power Connection

    Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)

  • Power Input

    Seetronic Powerkon IP65

  • Data Connectors

    5-pin IP65 XLR

  • Cable Length (power)

    5 ft (1.5 m)

  • Firmware upgrades

    USB type-C

Control

  • Control Protocol

    DMX, RDM

  • DMX Channels

    2

  • Modes/Personalities

    1 personality (2ch)

  • On-Board Control

    Yes

Electrical

Certifications/Qualifications

  • Certifications

    CE, UKCA

  • IP Rating

    IP65, temporary outdoor/wet use

  • Temperature (Ambient)

    -4 °F to 113 °F (-20 °C to 45 °C)

Required Accessories

  • Accessories (required): Fog Fluid-PHF
  • Compatible Mounting Options: M12 / ½” hole with mounting brackets (clamps)

Compatible Accessories

  • Neutrik powerKON cables
  • DMX Cables

What's Included

  • Amhaze Stadium II IP
  • Seetronic IP 65 Powerkon power cord
  • 2x Mounting brackets
  • Output nozzle assembly
  • Front Cover
