4BAR Flex Q ILS
The CHAUVET DJ 4BAR Flex Q ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the 4BAR family. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

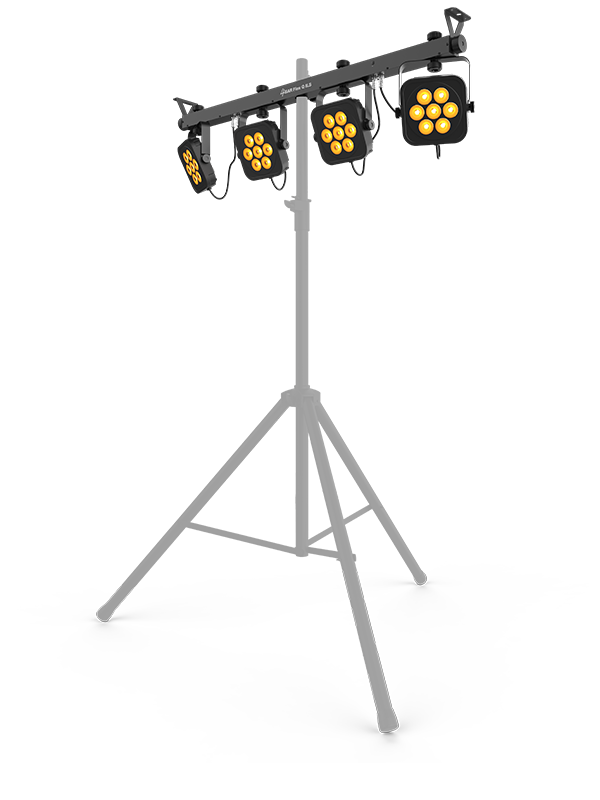

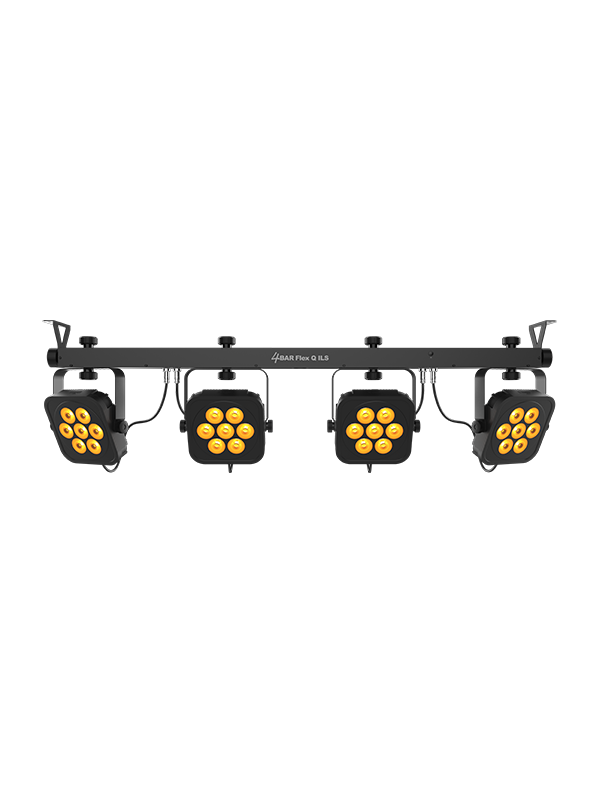

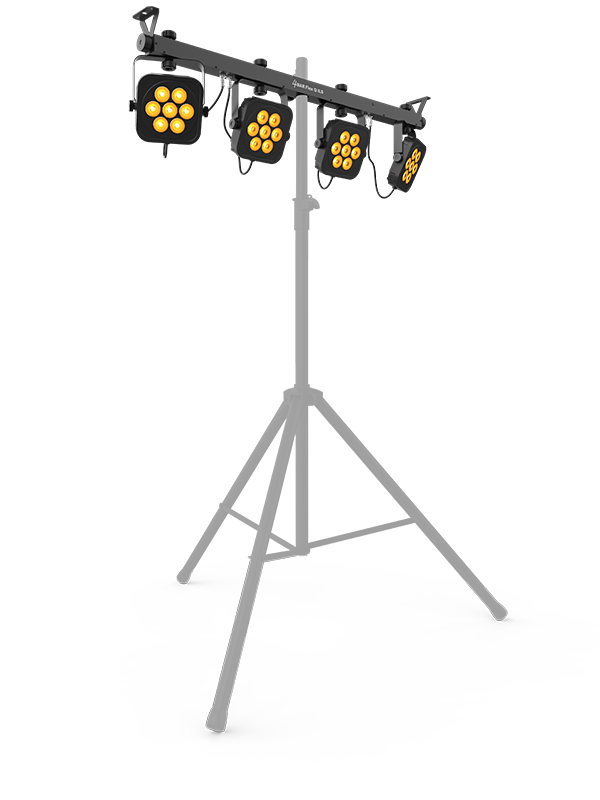

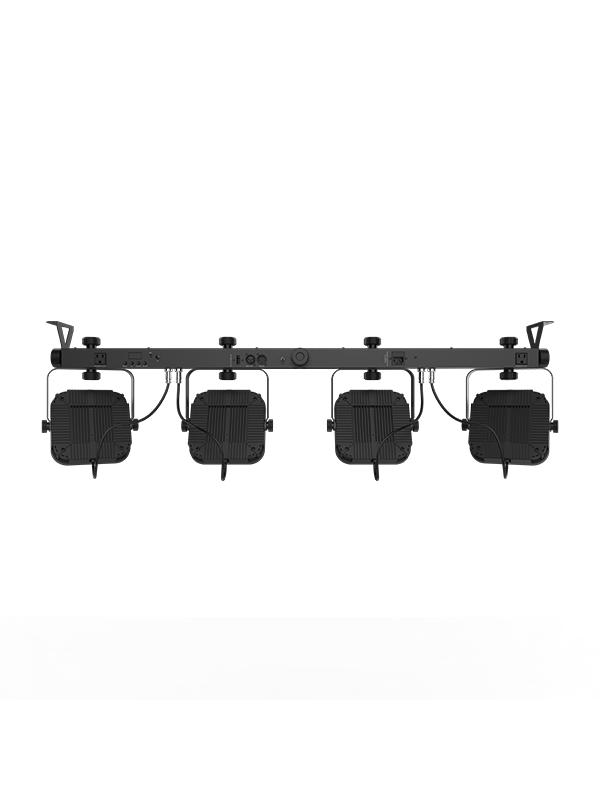

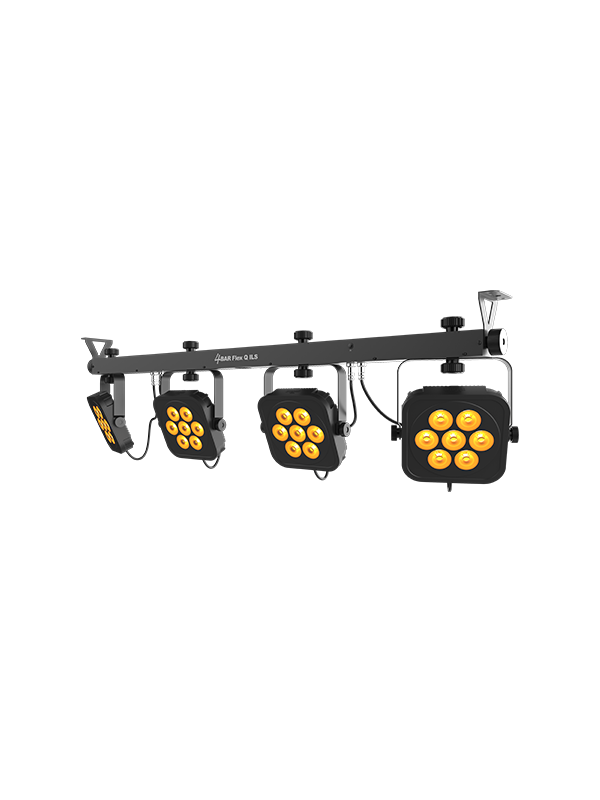

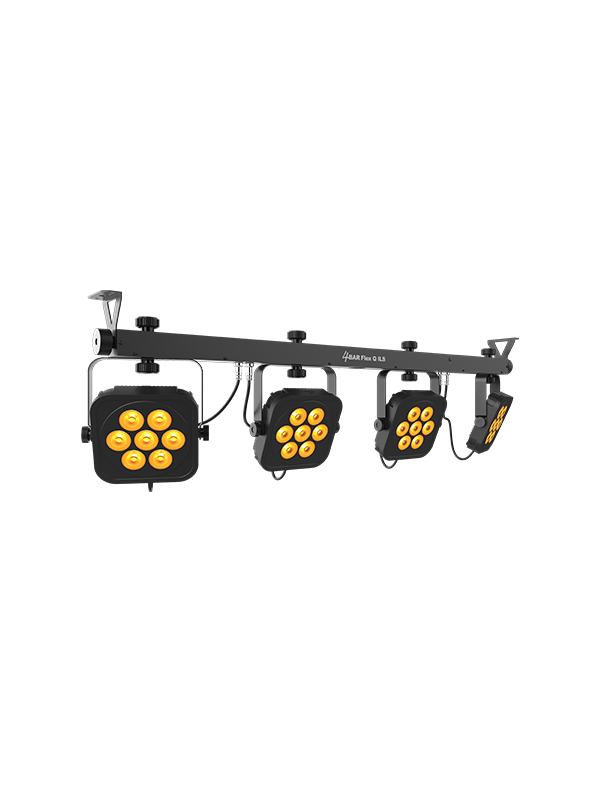

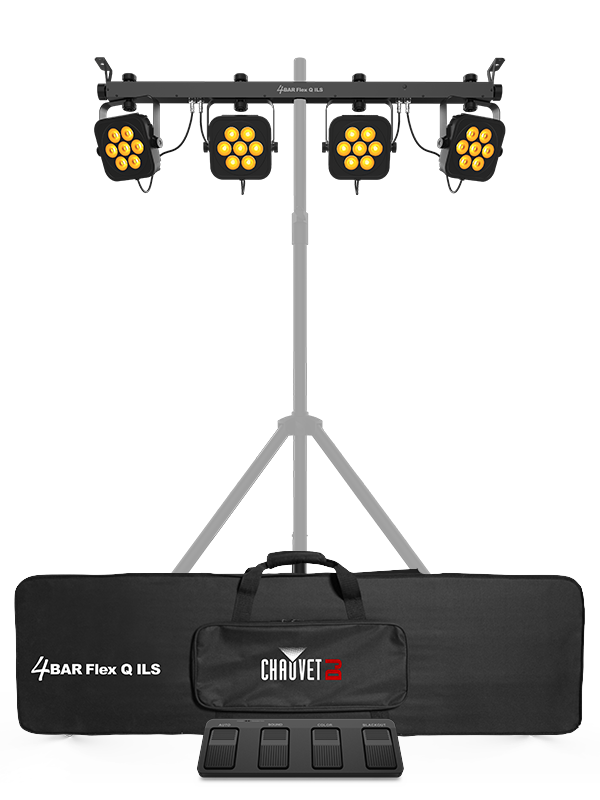

A closer look at the 4BAR Flex Q ILS.
Review the design, controls, connections, and mounting details from multiple angles.
4BAR Flex Q ILS features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ 4BAR Flex Q ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the 4BAR family. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists dmx channels of 4, 6 or 19, dmx connectors of 3-pin XLR, and beam angle of 14°. Review the highlights below for planning and compatibility.
Highlights
- DMX Channels: 4, 6 or 19
- DMX Connectors: 3-pin XLR
- Beam Angle: 14°
- Field Angle: 23°
- Illuminance: 2,353 lux @ 2 m (per pod)
- Strobe Rate: 0 to 20 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz 78 W, 0.6 A @ 230 V, 50 Hz
Dimensions: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
Weight: 12.2 lb (5.5 kg)
Make sure it is right for your setup.
Talk with DJ Lighting Discount about features, control options, compatibility, or available accessories.
