COLORband PiX-M ILS
The CHAUVET DJ COLORband PiX-M ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the COLORband family. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data lists...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

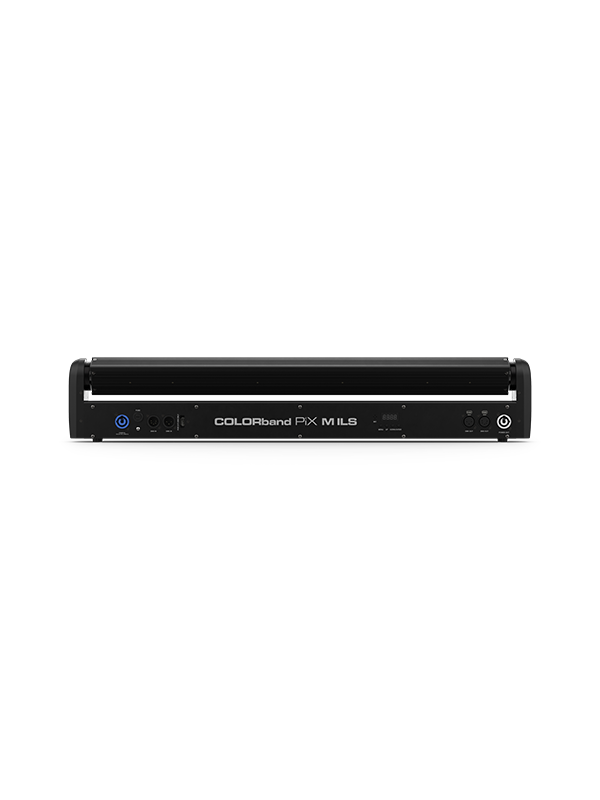

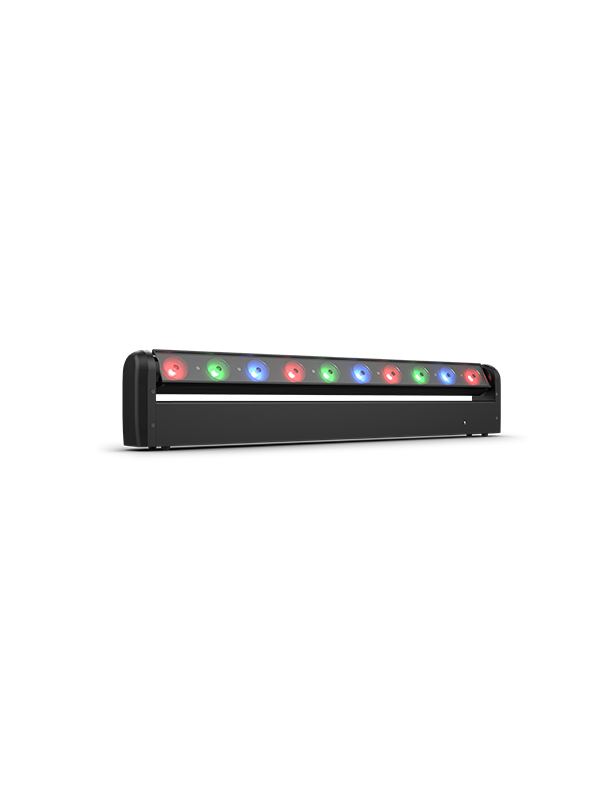

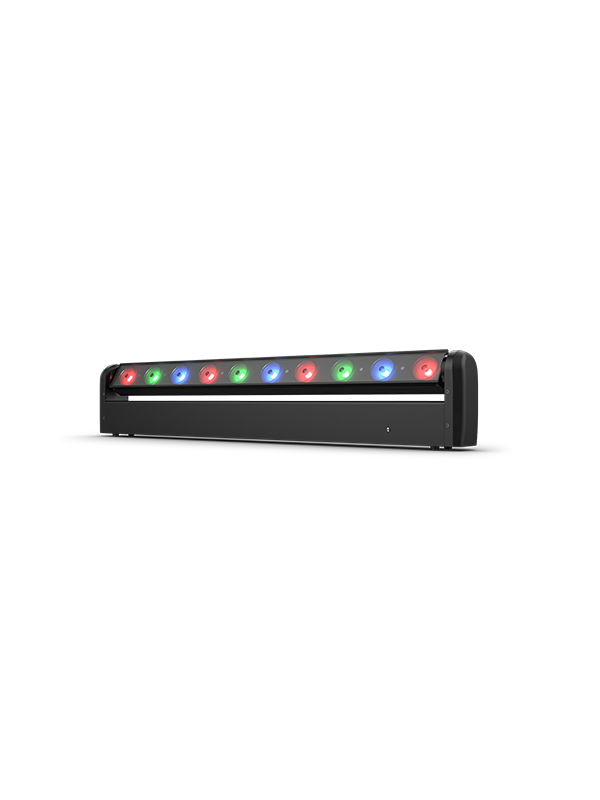

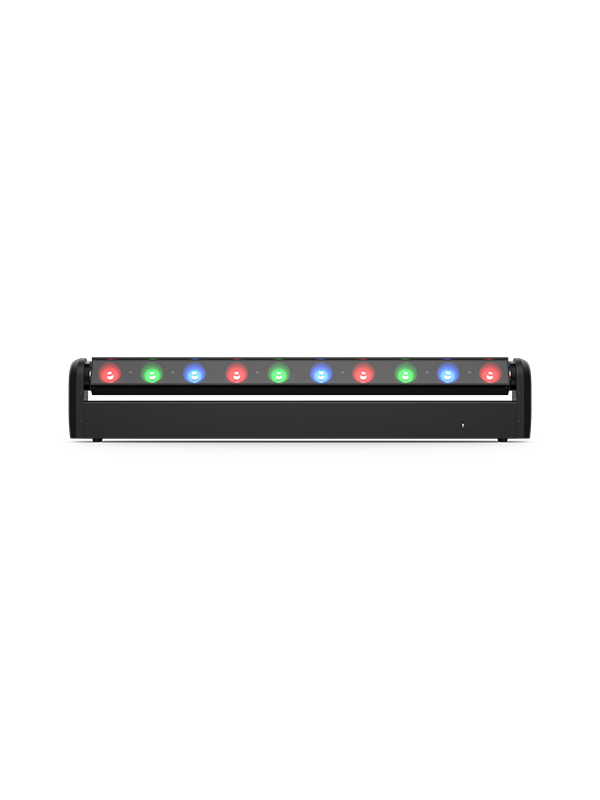

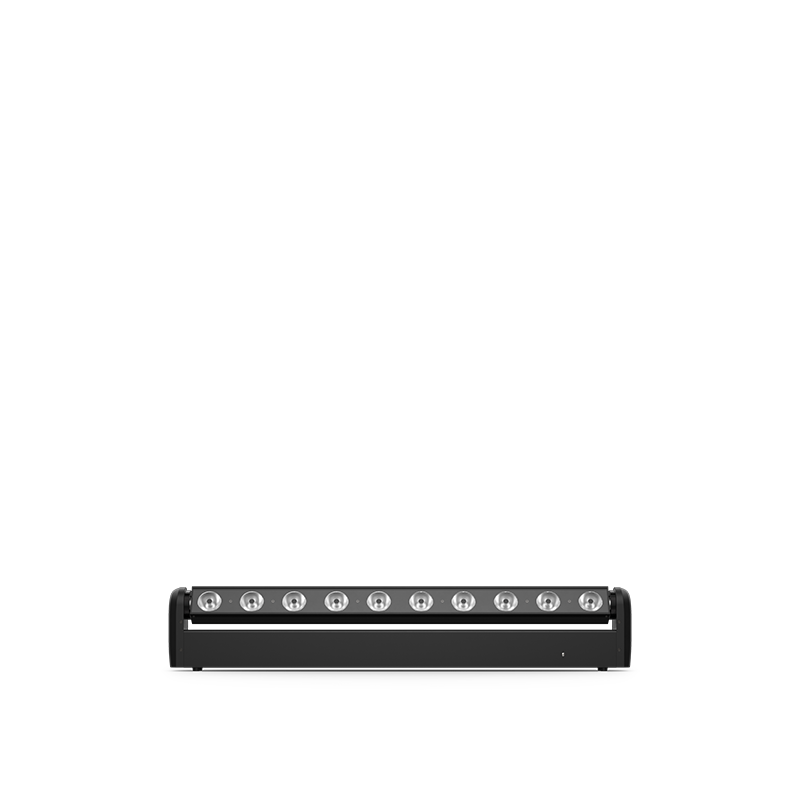

A closer look at the COLORband PiX-M ILS.
Review the design, controls, connections, and mounting details from multiple angles.
COLORband PiX-M ILS features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ COLORband PiX-M ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the COLORband family. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of 10 LEDs (tri-color RGB) 6 W, (2A), 50,000 hours life expectancy, dmx channels of 5, 6, 8 ,10, 17, 32, or 36, and dmx connectors of 3- and 5-pin XLR. Review the highlights below for planning and compatibility.
Highlights
- Light Source: 10 LEDs (tri-color RGB) 6 W, (2A), 50,000 hours life expectancy
- DMX Channels: 5, 6, 8 ,10, 17, 32, or 36
- DMX Connectors: 3- and 5-pin XLR
- Beam Angle: 15°
- Field Angle: 27°7,441 lux @ 2 m
- Illuminance: 7,441 lux @ 2 m
- Strobe Rate: 0 to 29 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Dimensions: 31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
Weight: 8.2 lb. (3.7 kg)
