Core 5X1 ILS
The CHAUVET DJ Core 5X1 ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the CORE family. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data lists...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

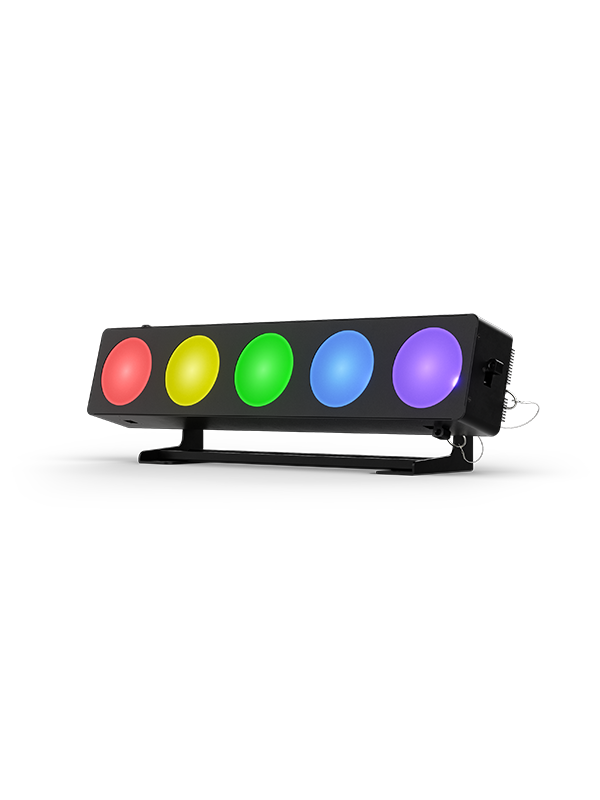

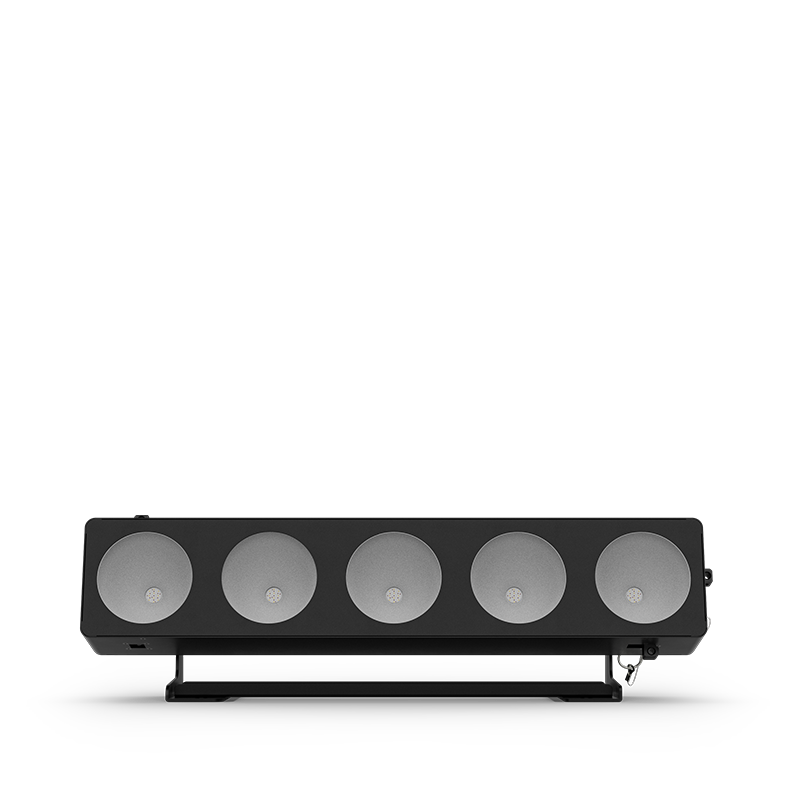

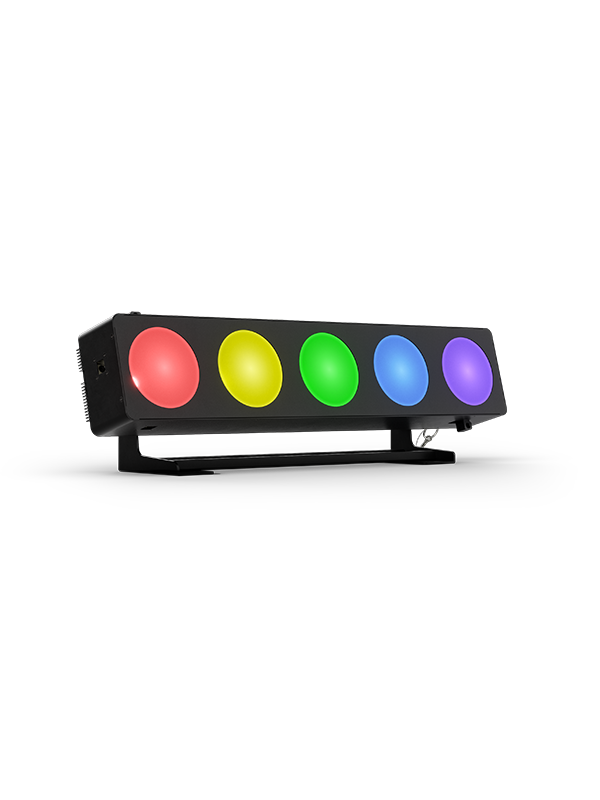

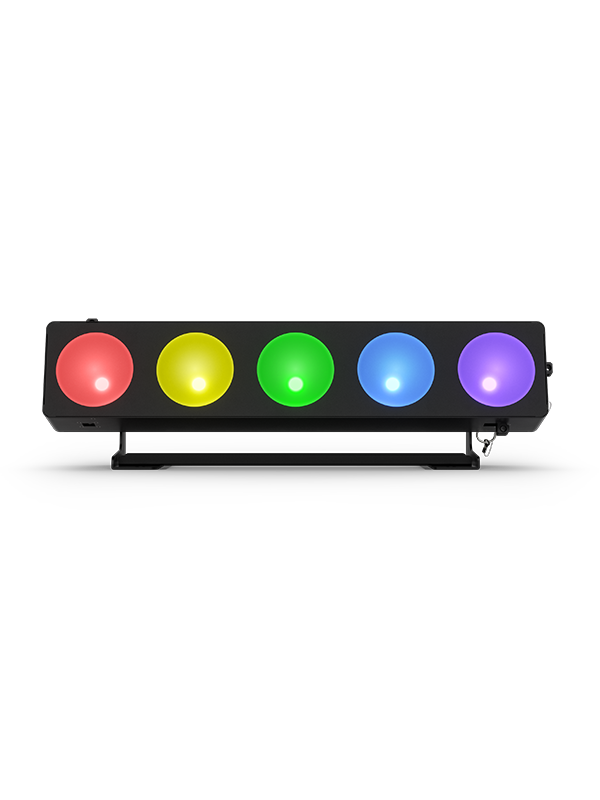

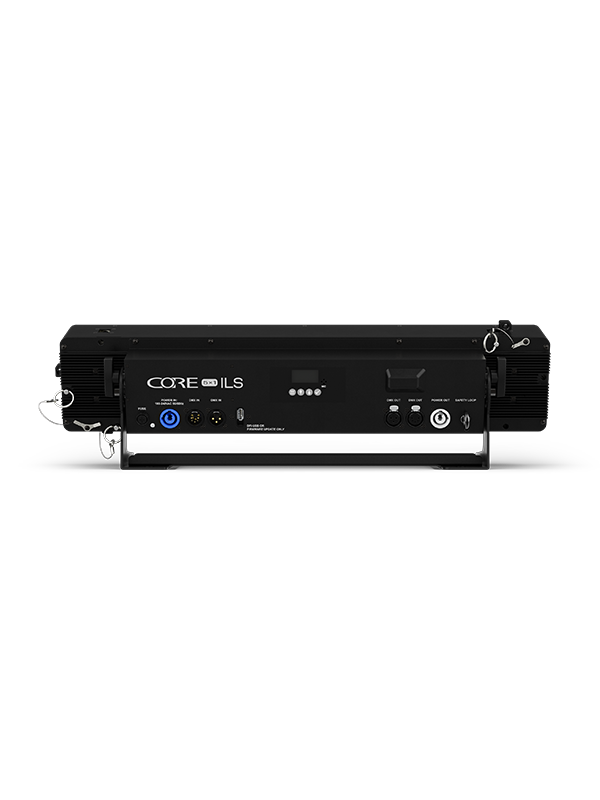

A closer look at the Core 5X1 ILS.
Review the design, controls, connections, and mounting details from multiple angles.
Core 5X1 ILS features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ Core 5X1 ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the CORE family. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of 5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy, dmx channels of 4, 8, or 22, and dmx connectors of 3- and 5-pin XLR. Review the highlights below for planning and compatibility.
Highlights
- Light Source: 5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy
- DMX Channels: 4, 8, or 22
- DMX Connectors: 3- and 5-pin XLR
- Beam Angle: 54°
- Field Angle: 75°
- Illuminance: 953 lux @ 2 m
- Lumens: 2,875
- Strobe Rate: 0 to 20 Hz
Dimensions: 23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
Weight: 11 lbs (5 kg)
