COREpar Q60 ILS
The CHAUVET DJ COREpar Q60 ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the CORE family. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data lists...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

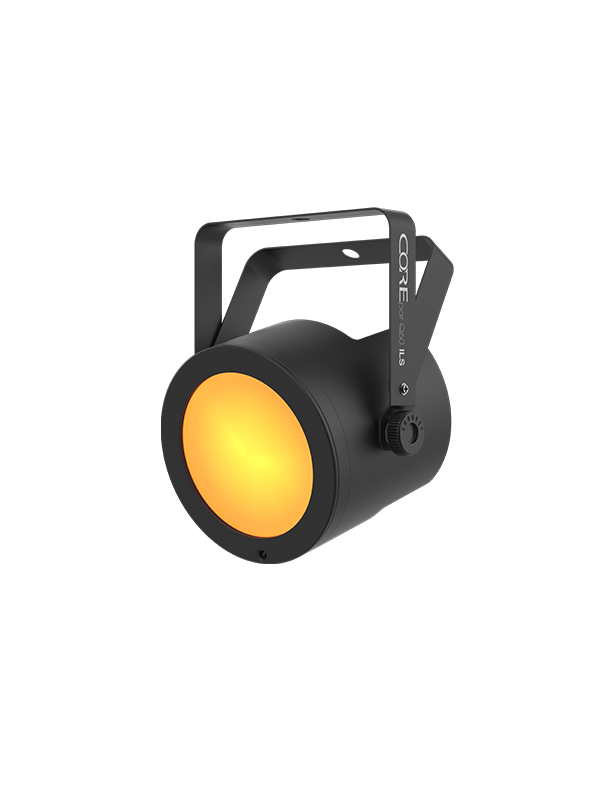

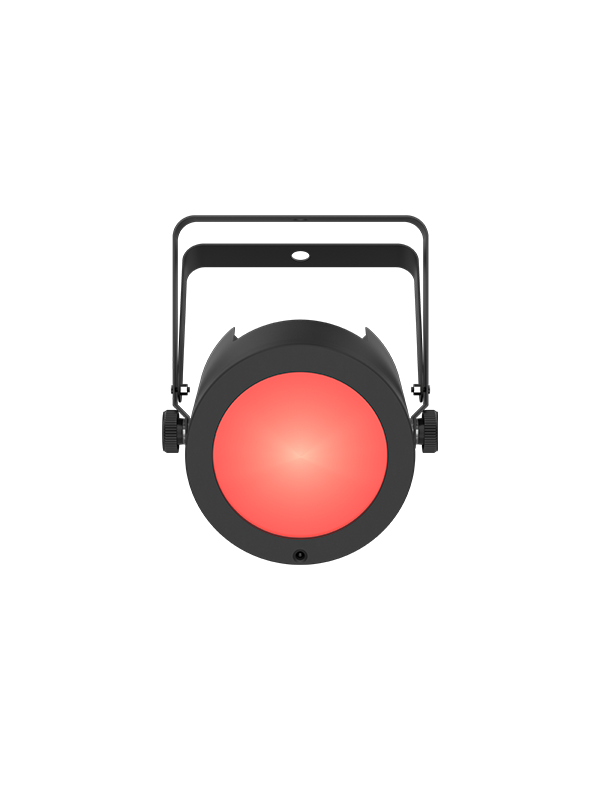

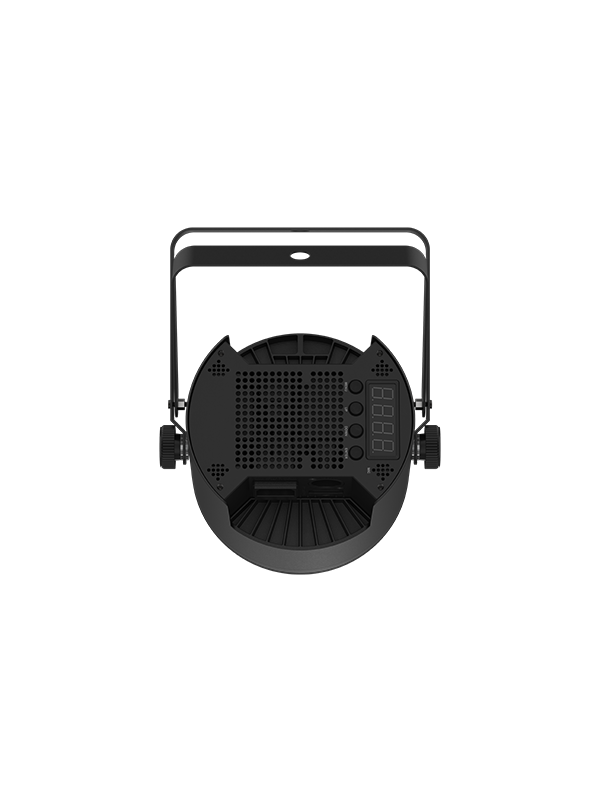

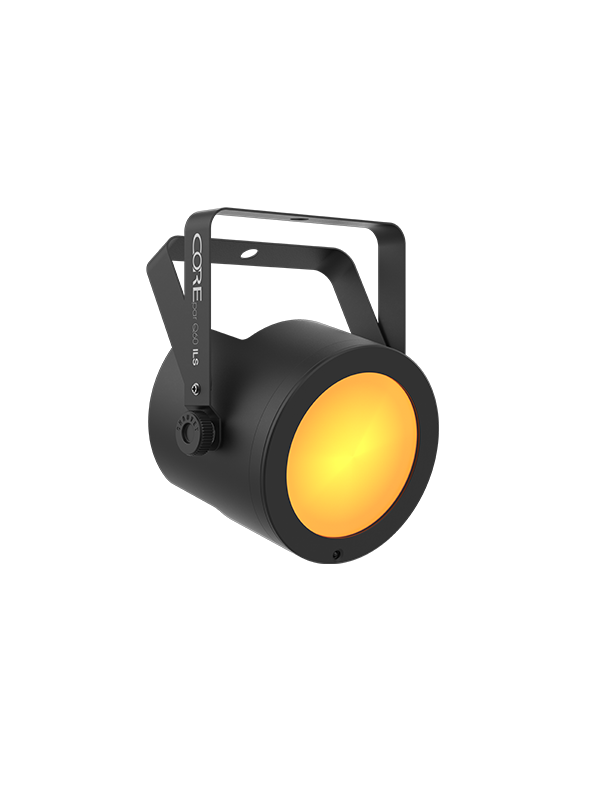

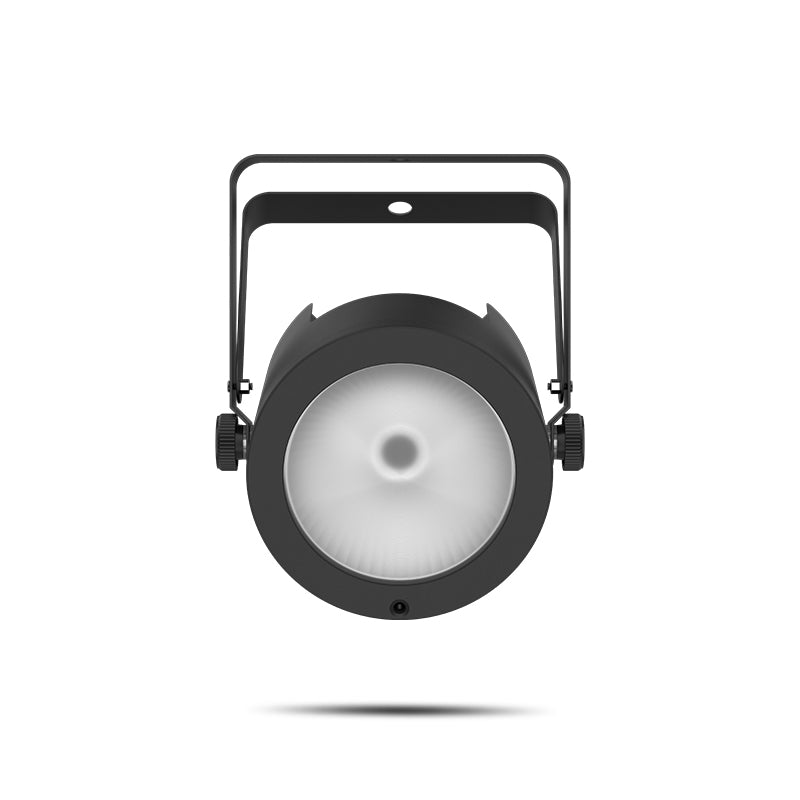

A closer look at the COREpar Q60 ILS.
Review the design, controls, connections, and mounting details from multiple angles.
COREpar Q60 ILS features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ COREpar Q60 ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the CORE family. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of 1 COB LED (quad-color RGBW) 60 W, (2.8 A), 50,000 hours life expectancy., dmx channels of 4 or 9, and dmx connectors of 3-pin XLR. Review the highlights below for planning and compatibility.
Highlights
- Light Source: 1 COB LED (quad-color RGBW) 60 W, (2.8 A), 50,000 hours life expectancy.
- DMX Channels: 4 or 9
- DMX Connectors: 3-pin XLR
- Beam Angle: (without lens): 74° (with lens): 20°
- Field Angle: (without lens): 100° (with Lenes): 30°
- Illuminance: (without lens) : 320 lux @ 2 m (with lens) : 2,796 lux @ 2 m
- Strobe Rate: 0 to 29 hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Dimensions: 7.5 x 7.5 x 8.2 in (192 x 192 x 210 mm)
Weight: 3.4 lbs. (1.5 kg)
Make sure it is right for your setup.
Talk with DJ Lighting Discount about features, control options, compatibility, or available accessories.
