Kinta FX ILS
The CHAUVET DJ Kinta FX ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data lists light source of (Kinta): 4 LEDs (...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

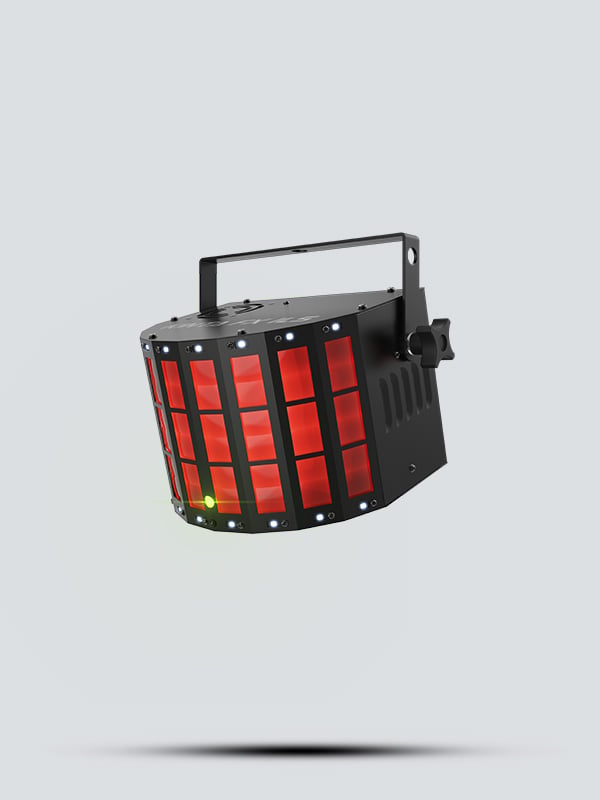

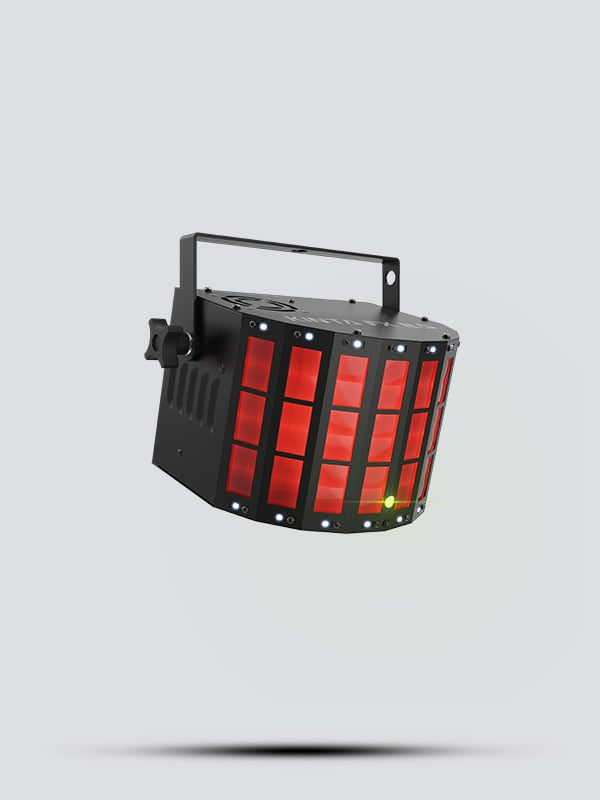

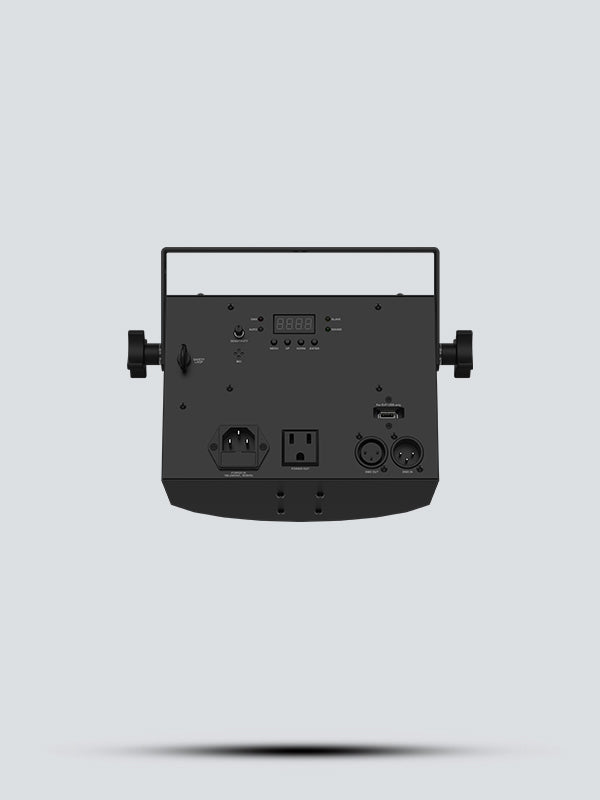

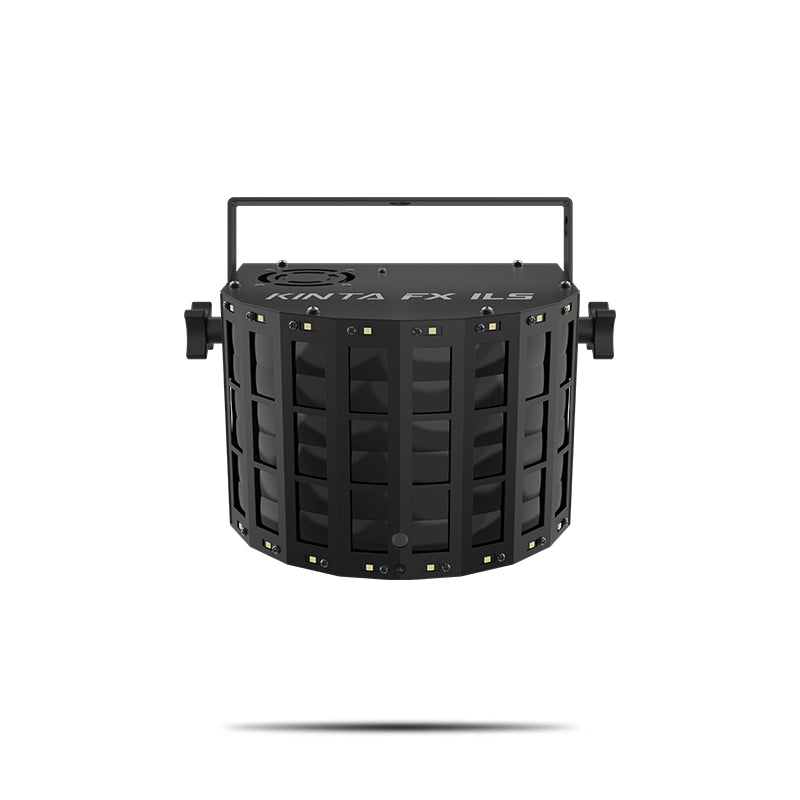

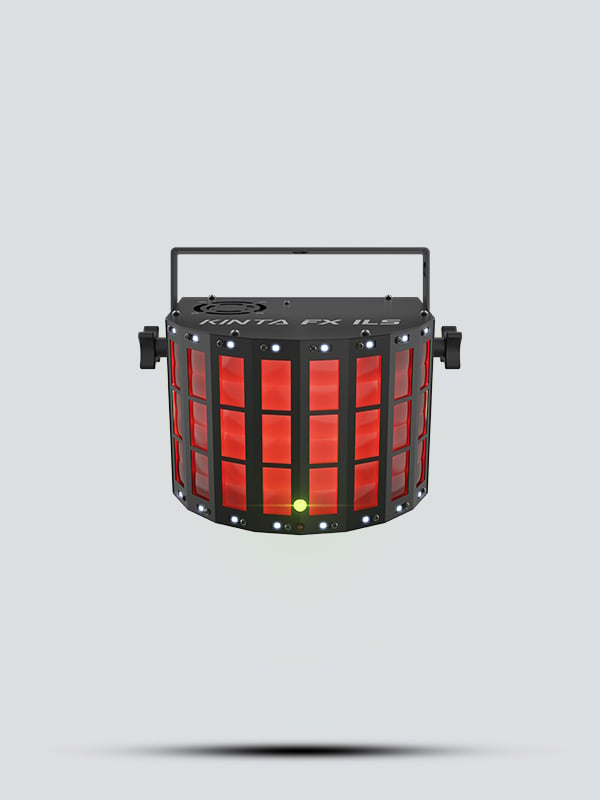

A closer look at the Kinta FX ILS.
Review the design, controls, connections, and mounting details from multiple angles.
Kinta FX ILS features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ Kinta FX ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of (Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy (Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy (Laser): 650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode, dmx channels of 2 or 9, and dmx connectors of 3-pin XLR. Review the highlights below for planning and compatibility.
Highlights
- Light Source: (Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy (Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy (Laser): 650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode
- DMX Channels: 2 or 9
- DMX Connectors: 3-pin XLR
- Strobe Rate: 0 to 20 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 17 units @ 120 V; 33 units @ 230 V
- Power and Current: 25 W, 0.5 A @ 120 V, 60 Hz 24 W, 0.2 A @ 230 V, 50 Hz
- Approvals: CE, FDA, RoHS, UKCA
Dimensions: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
Weight: 3.8 lb (1.7 kg)
Make sure it is right for your setup.
Talk with DJ Lighting Discount about features, control options, compatibility, or available accessories.
