LED Pinspot 2
The CHAUVET DJ LED Pinspot 2 is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data lists light source of 1 LED (white) 3...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

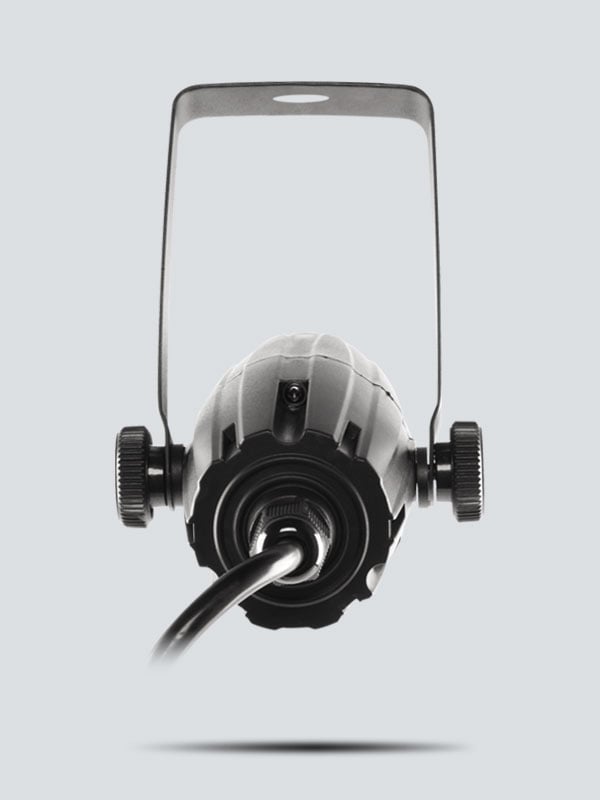

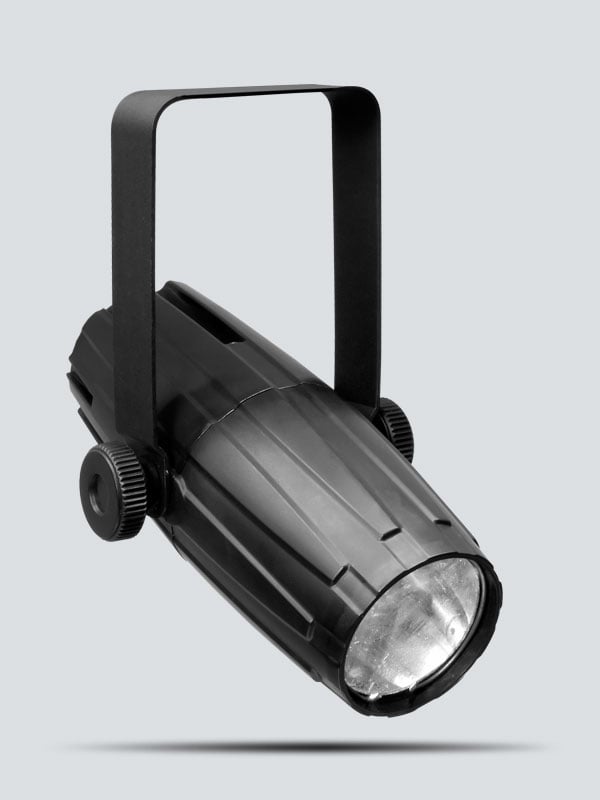

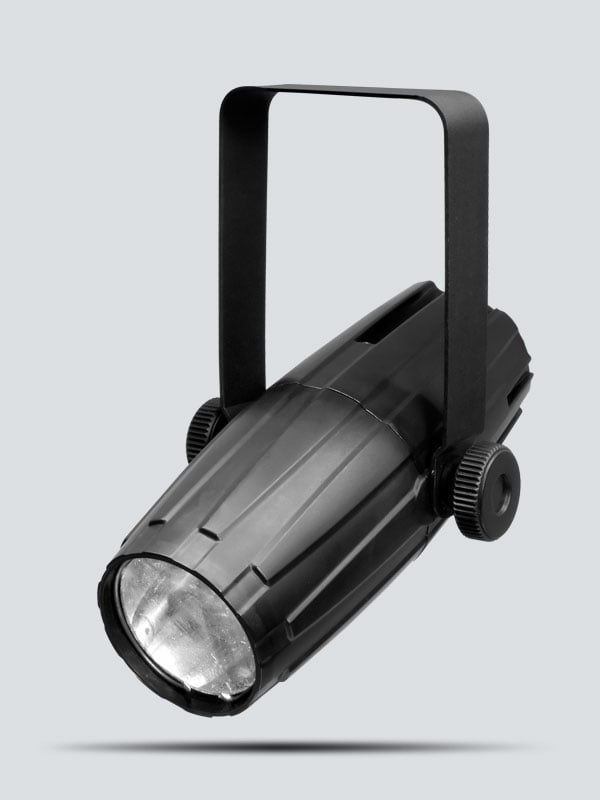

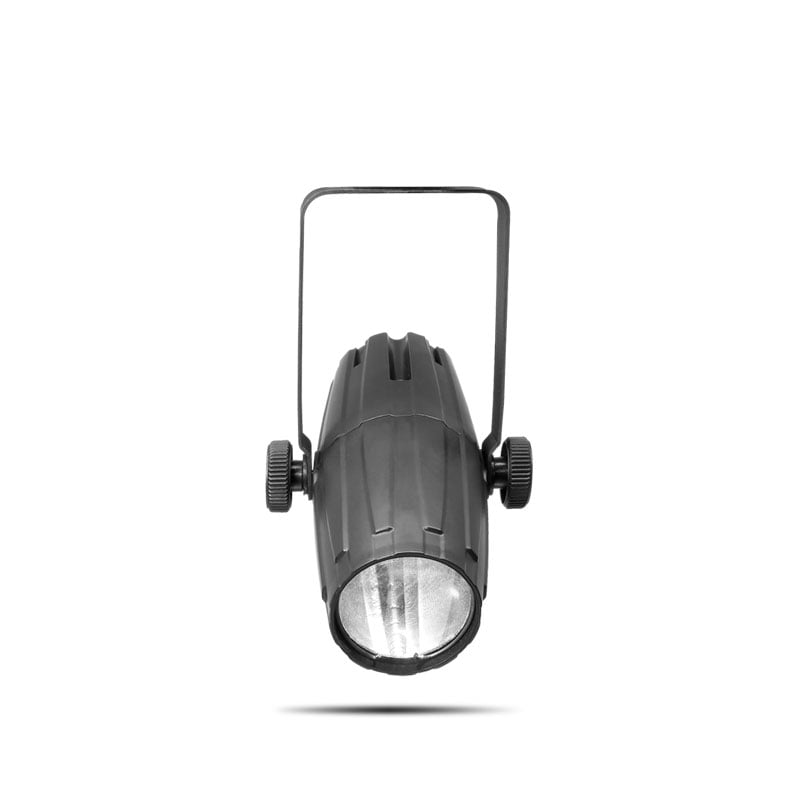

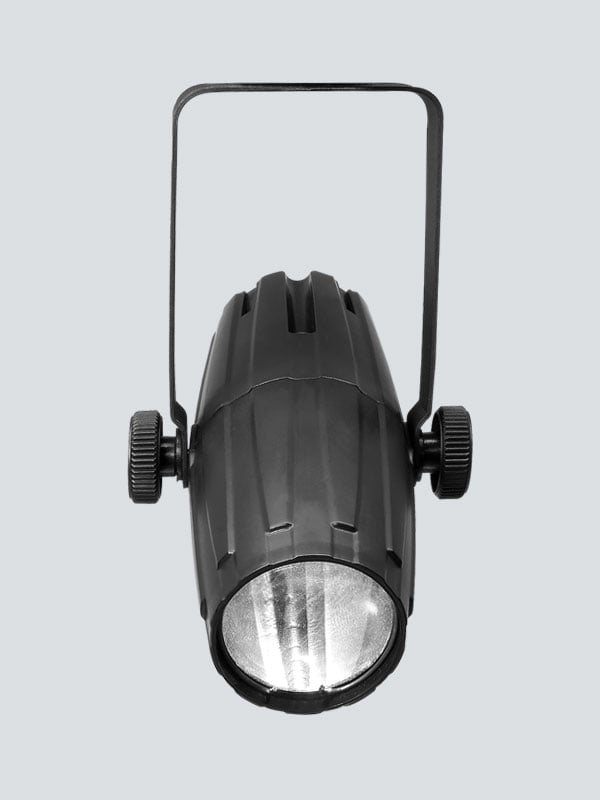

A closer look at the LED Pinspot 2.
Review the design, controls, connections, and mounting details from multiple angles.
LED Pinspot 2 features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ LED Pinspot 2 is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of 1 LED (white) 3 W (700 mA), 50,000 hours life expectancy, beam angle of 6° (installed), 9° (included), and illuminance of (6°): 4,120 lux @ 2 m (9°): 1,335 lux @ 2 m. Review the highlights below for planning and compatibility.
Highlights
- Light Source: 1 LED (white) 3 W (700 mA), 50,000 hours life expectancy
- Beam Angle: 6° (installed), 9° (included)
- Illuminance: (6°): 4,120 lux @ 2 m (9°): 1,335 lux @ 2 m
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 4 W, 0.1 A @ 120 VAC, 60 Hz 4 W, 0.1 A @ 230 VAC, 50 Hz
- Approvals: CE
Dimensions: 7.6 x 4.2 x 5.9 in (193 x 105 x 148 mm)
Weight: 0.9 lb (0.4 kg)
