Scorpion Dual RGB ILS
The CHAUVET DJ Scorpion Dual RGB ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the Scorpoin family. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

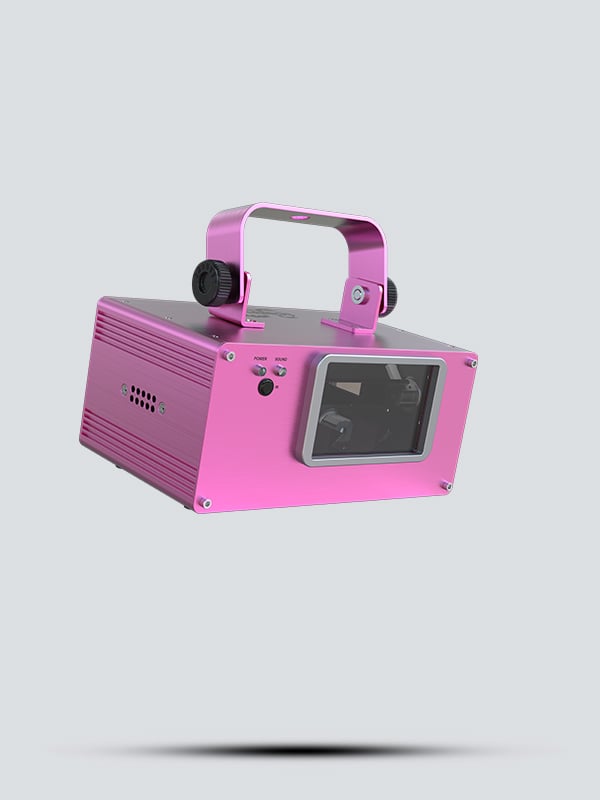

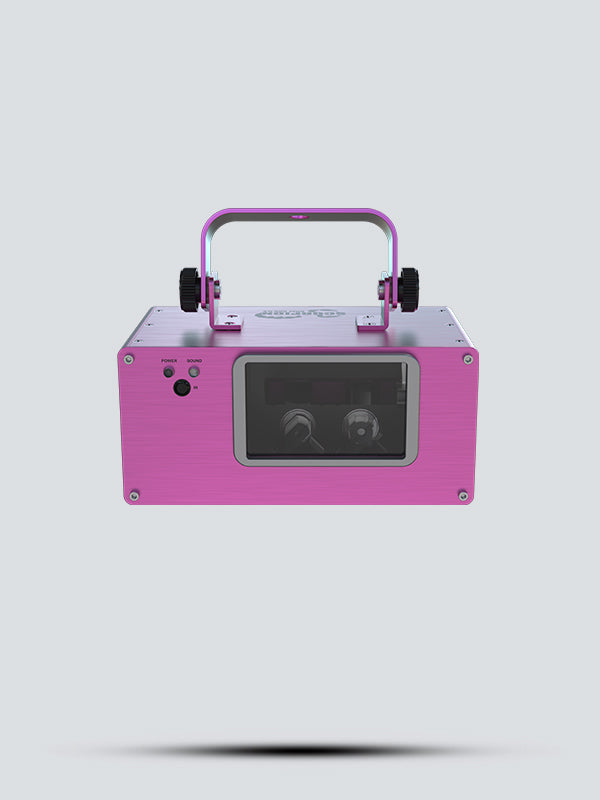

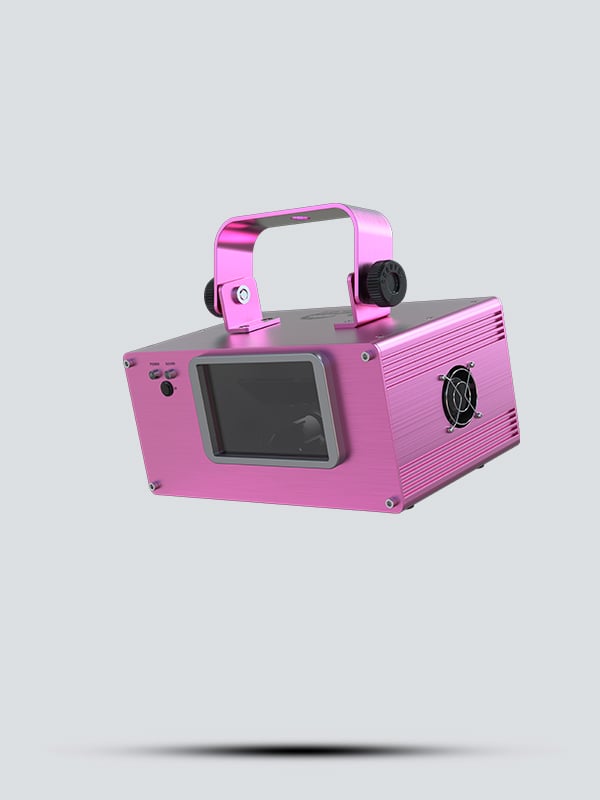

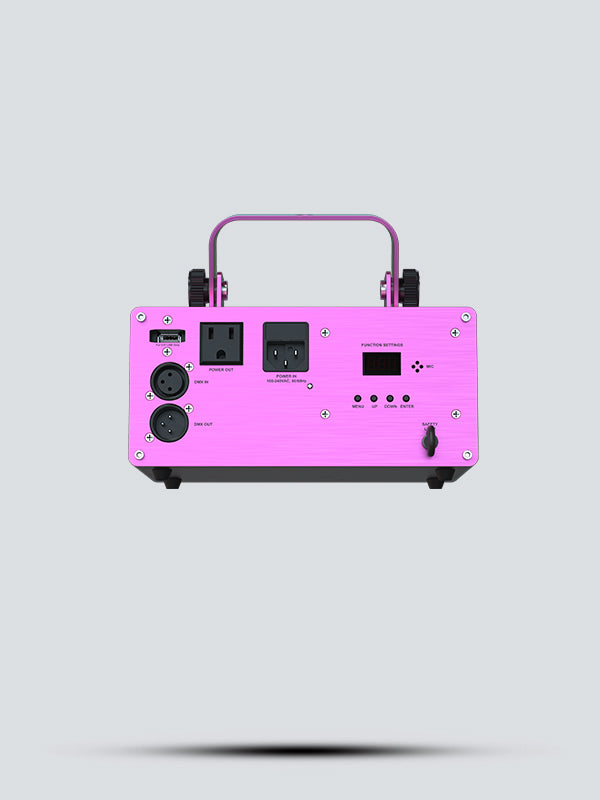

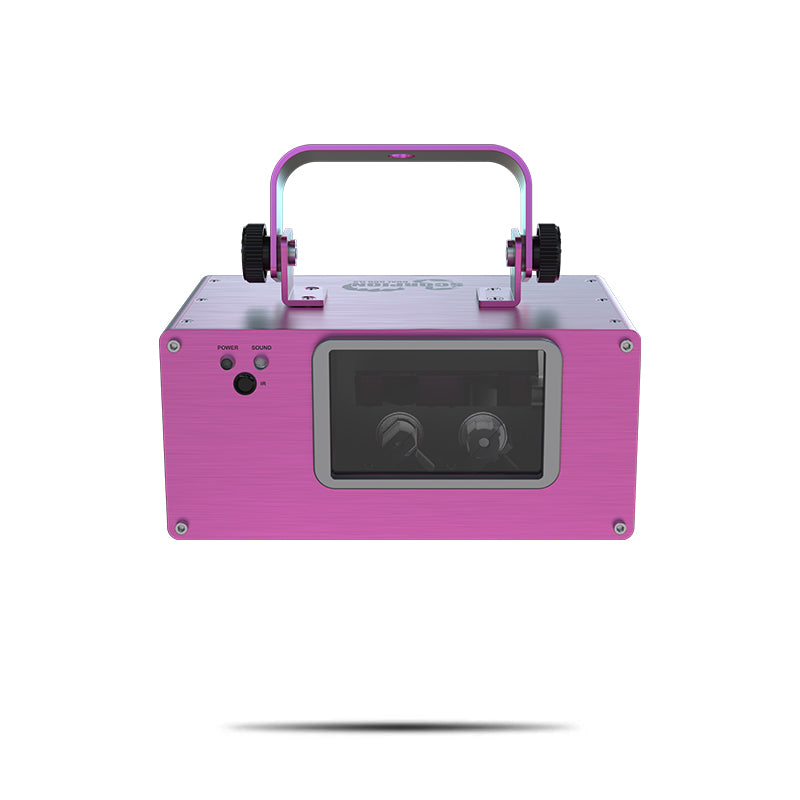

A closer look at the Scorpion Dual RGB ILS.
Review the design, controls, connections, and mounting details from multiple angles.
Scorpion Dual RGB ILS features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ Scorpion Dual RGB ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the Scorpoin family. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode, dmx channels of 10, and dmx connectors of 3-pin XLR. Review the highlights below for planning and compatibility.
Highlights
- Light Source: 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
- DMX Channels: 10
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 30°/30°
- Zoom Angle: 1° to 29°
- Strobe Rate: 0 to 27 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 27 units @ 120 V; 48 units @ 230 V
Dimensions: 8.5 x 7 x 6.3 in (216 x 179.5 x 161 mm)
Weight: 3.8 lb (1.7 kg)
Make sure it is right for your setup.
Talk with DJ Lighting Discount about features, control options, compatibility, or available accessories.
