Shocker Panel FX
The CHAUVET DJ Shocker Panel FX is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the Shiocker family. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data lists...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

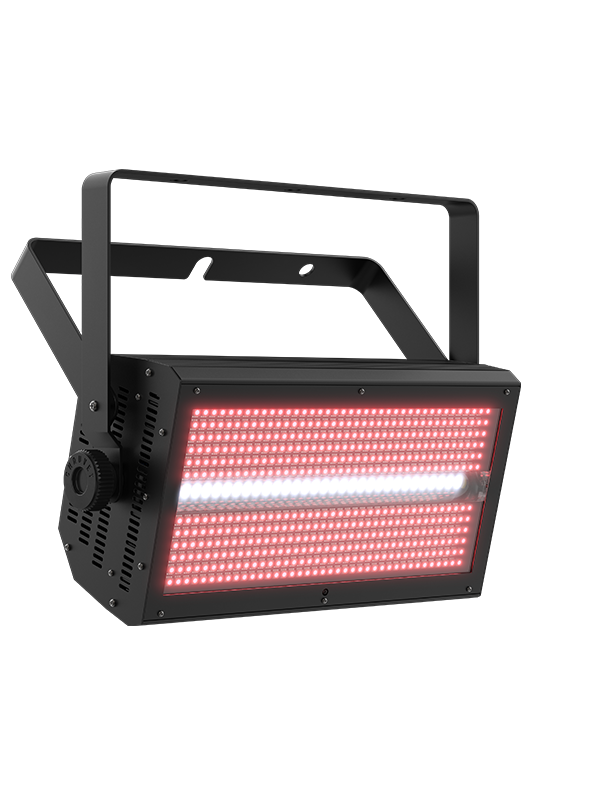

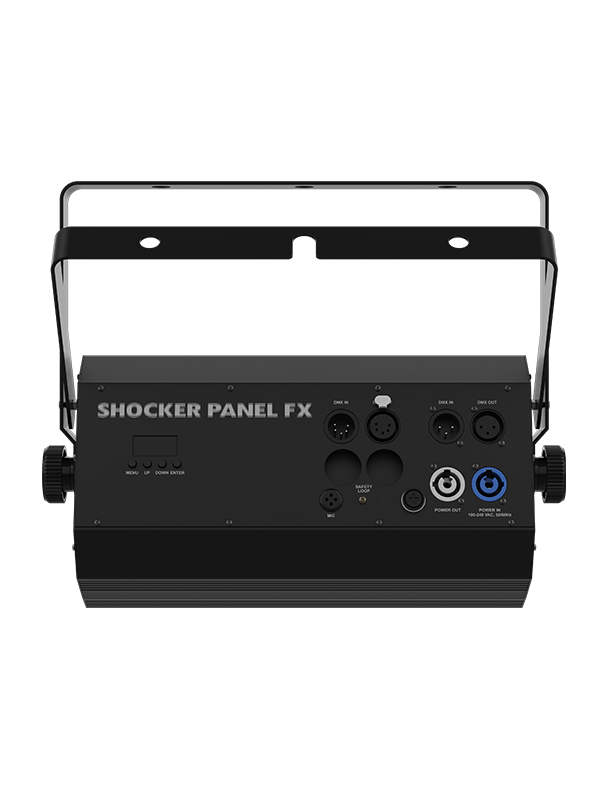

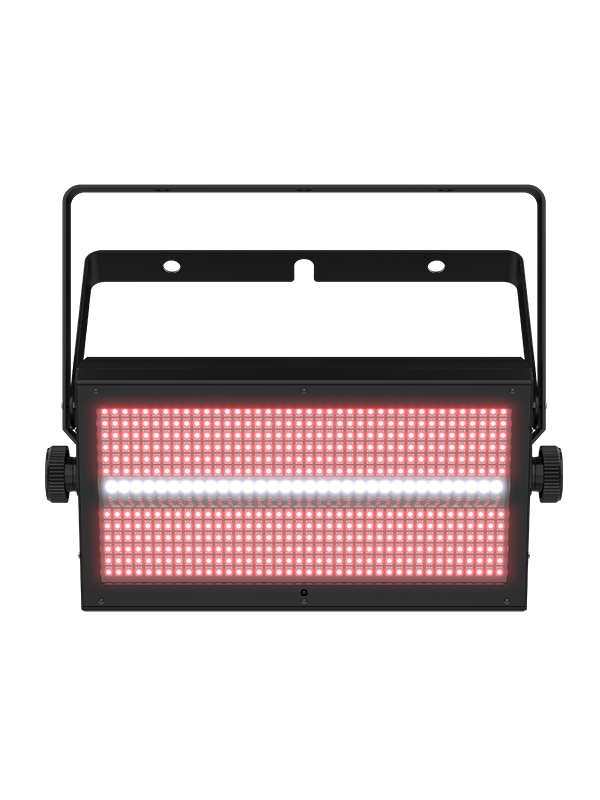

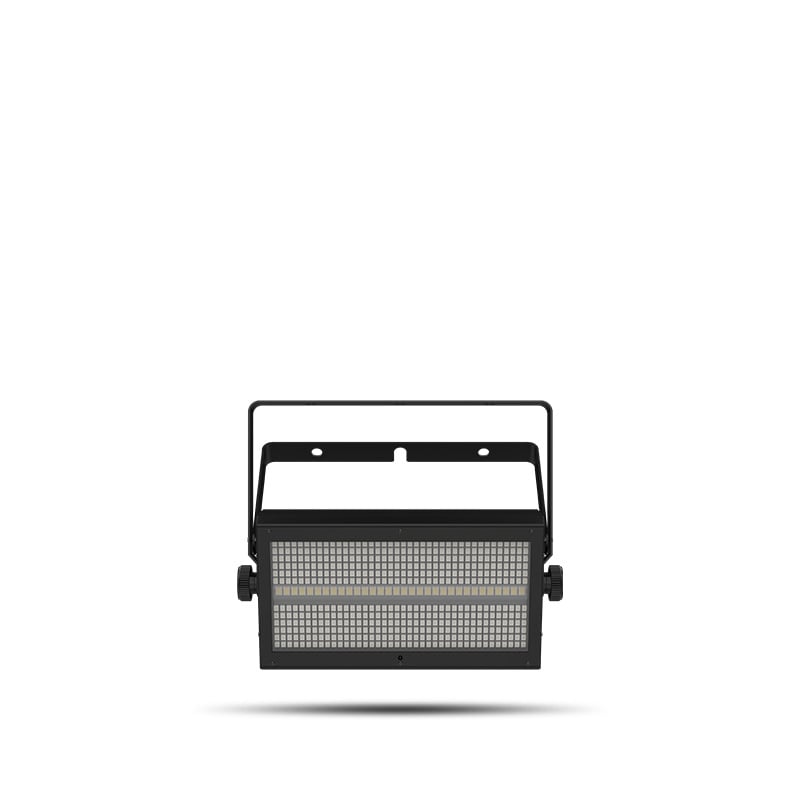

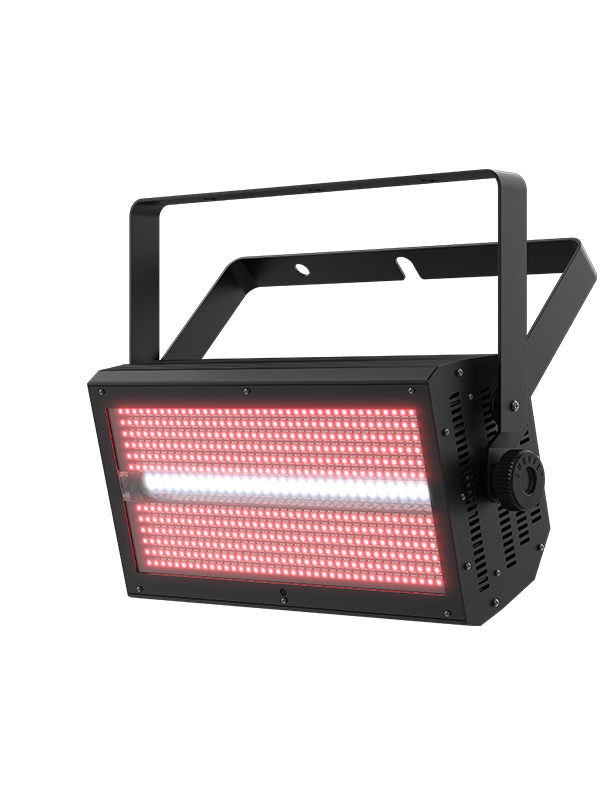

A closer look at the Shocker Panel FX.
Review the design, controls, connections, and mounting details from multiple angles.
Shocker Panel FX features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ Shocker Panel FX is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the Shiocker family. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of 480 LEDs (tri-color) 2 W, (1 A), 50,000 hours life expectancy 32 LEDs (cool white) 1.1 W (0.4 A), 50,000 hours life expectancy, dmx channels of 8, 18, 34 or 47, and dmx connectors of 3- and 5-pin XLR. Review the highlights below for planning and compatibility.
Highlights
- Light Source: 480 LEDs (tri-color) 2 W, (1 A), 50,000 hours life expectancy 32 LEDs (cool white) 1.1 W (0.4 A), 50,000 hours life expectancy
- DMX Channels: 8, 18, 34 or 47
- DMX Connectors: 3- and 5-pin XLR
- Beam Angle: 119°
- Field Angle: 158°
- Illuminance: 1,131 lux @ 2 m
- Lumens: 13,626
- Strobe Rate: 0 to 20 Hz
Dimensions: 12.63 x 4.3 x 6.7 in (310 x 110 x 170 mm)
Weight: 8.6 lb (3.9 kg)
