Swarm Wash FX ILS
The CHAUVET DJ Swarm Wash FX ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the Swarm family. It is suited to mobile entertainment, venues, houses of worship, and production environments.Published product data...
- Authorized CHAUVET DJ dealer
- Official product specifications
- Expert sales support
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

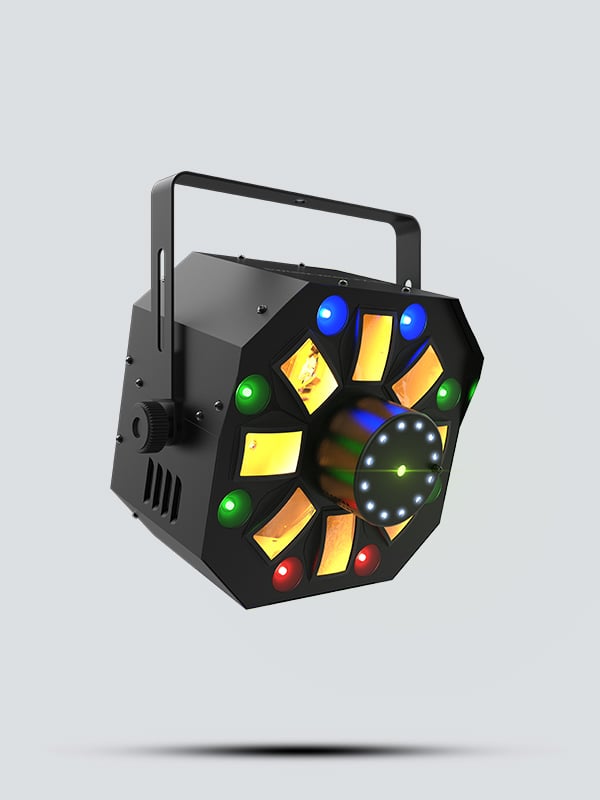

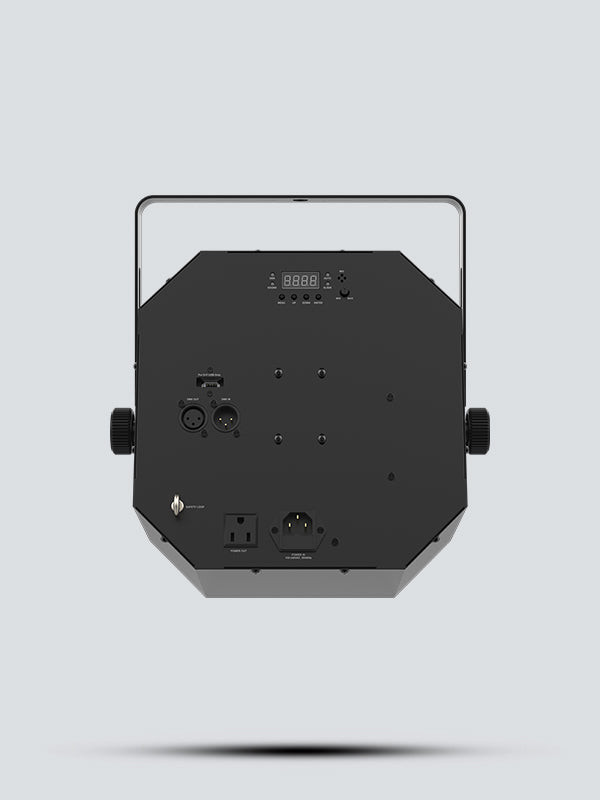

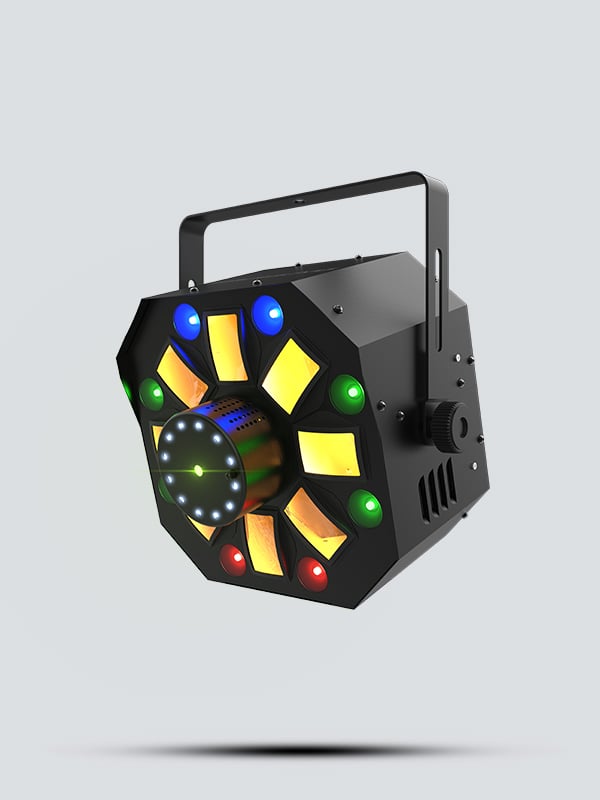

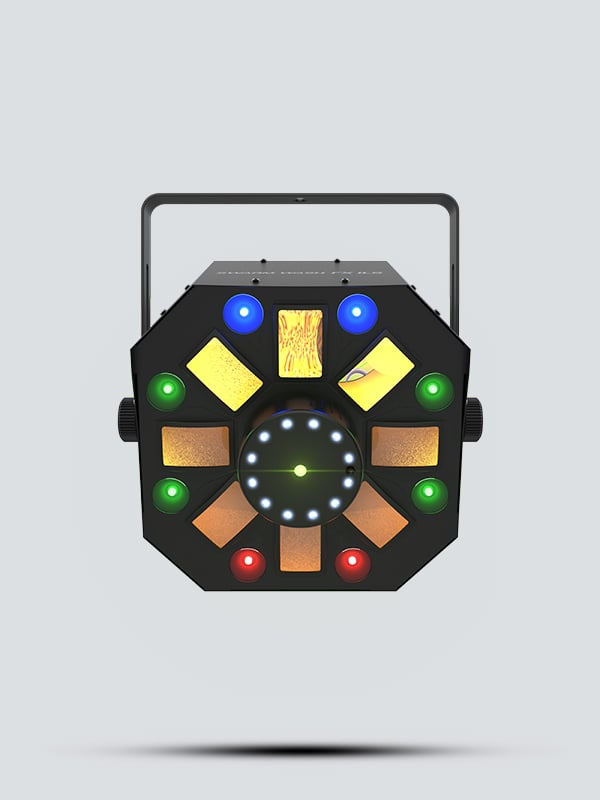

A closer look at the Swarm Wash FX ILS.
Review the design, controls, connections, and mounting details from multiple angles.
Swarm Wash FX ILS features and specifications.
Review the official product information to plan your setup and confirm compatibility.
The CHAUVET DJ Swarm Wash FX ILS is an entertainment lighting fixture for mobile DJs, event production, and venue applications. It is part of the Swarm family. It is suited to mobile entertainment, venues, houses of worship, and production environments.
Published product data lists light source of (Wash) 8 LEDs (quad-color RGB+UV) 1.5 W, (600 mA), 50,000 hours life expectancy (Strobe) 12 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy (Laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode, dmx channels of 2 or 18, and dmx connectors of 3-pin XLR. Review the highlights below for planning and compatibility.
Highlights
- Light Source: (Wash) 8 LEDs (quad-color RGB+UV) 1.5 W, (600 mA), 50,000 hours life expectancy (Strobe) 12 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy (Laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
- DMX Channels: 2 or 18
- DMX Connectors: 3-pin XLR
- Strobe Rate: 0 to 20 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 11 units @ 120 V; 20 units @ 230 V
- Power and Current: 51 W, 0.7 A @ 120 V, 60 Hz 50 W, 0.4 A @ 230 V, 50 Hz
- Approvals: CE, FDA, RoHS, UKCA
Dimensions: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
Weight: 9.5 lb (4.3 kg)
