Martin Professional - JEM AF-2 dmx fan; 115V 50/60Hz - 92615400
JEM AF-2
24" EFFECT FAN WITH VARIABLE SPEED AND REMOTE CONTROL

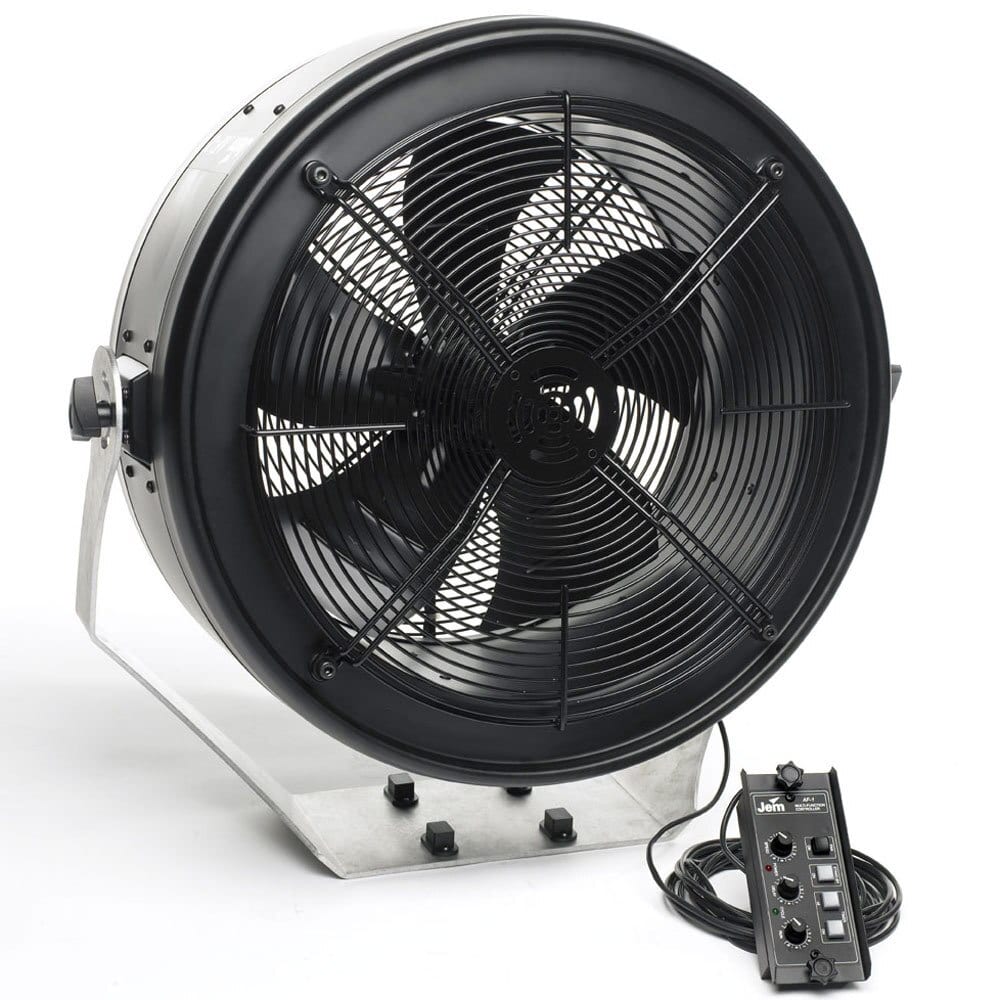

The JEM AF-2 DMX fan is a high-output fully DMX controllable fan. The fan casing is constructed from lightweight aluminum to make it easy for one person to carry; weight has been limited to only 17.5 kg with the included flying bracket installed. It is supplied with an analog timer remote control for fast and easy control. The included aluminum flying bracket is compatible with the Omega clamp system and an optional “Touring Frame” is available for added protection against the rigors of the road with an included remote control storage system perfect for rental production purposes. The 24” fan motor is sealed to withstand high condensation levels. The JEM AF-2 DMX fan has been designed as a complimentary item for a complete atmospheric system solution with special effects, theme parks, photography film/studio work in addition to traditional stage and theatre applications in mind.
- Integrated DMX and included remote control
- Low-noise, 73 dBA at maximum output
- Variable speed, range and control
FEATURES
- 24″ Sealed motor, resists moisture
- Variable speed, range and control
- Instant-on, low minimum speed
- Multi-functional timer remote control included
- Integrated DMX
- Floor standing or truss mounting
- Optional “Touring Frame”
- Low Noise level, only 73 dBA at maximum output
- Broad regulatory compliance
SPECIFICATIONS
PHYSICAL
Width: 600 mm (23.7 in.)
Height: 600 mm (23.7 in.)
Depth: 310 mm (12.2 in.)
Weight: 15.7 kg (34.7 lb.)
Height with flying bracket: 680 mm (26.8 in.)
Weight with flying bracket: 17.5 kg (38.6 lb.)
Width with flying bracket: 700 mm (27.5 in.)
Depth with flying bracket: 310 mm (12.2 in.)
Height with optional Touring Frame: 770 mm (30.4 in.)
Weight with optional Touring Frame: 21.4 kg (47.2 lb.)
Width with optional Touring Frame: 750 mm (29.6 in.)
Depth with optional Touring Frame: 335 mm (13.2 in.)
ELECTRICAL
AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 1.2 A @ 230 V *
Power Consumption
Typical: 245 W *
US Model:
AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 3.3 A @ 110 V *
Power Consumption
Typical: 350 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
PERFORMANCE
Maximum airflow: 5700 m3 (201,295 ft3) hour
CFM: 3355 CFM
Fan speed: 0-1400 rpm
Maximum noise level: 73 dBA
CONTROL AND PROGRAMMING
Control options: Included analog timer remote control, DMX, test switch
Control parameters: Instant or timer-controlled output
Fan: Variable output, 0-100%
Remote cable: 3-pin XLR, includes 5 m (16.4 ft.), maximum length 50m (164 ft.)
DMX channels: 1
Protocol: ANSI E1.11 – USITT DMX512-A
CONSTRUCTION
Housing: Aluminium
Color: Black
Fan motor: 24” Sealed axial
Flying bracket: Integrated yoke w/safety attachment point
Mounting Points: Accepts optional standard omega, or wide omega brackets
Optional touring frame: Steel, black, integrated remote control storage
INSTALLATION
Mounting: Floor or hanging
Orientation: Any
Minimum clearance around machine: 101 mm (4 in.)
CONNECTIONS
AC Power, EU: IEC Male inlet, C14
AC Power, US: Hardwired mains, 3 m (9.8 ft.), NEMA 5-15P
DMX data: 3-pin and 5-pin XLR sockets
Remote control: 3-pin locking XLR
THERMAL
Maximum ambient temperature (Ta max.): 55° C (131° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
APPROVALS
EU safety: EN 60 335-1
EU EMC: EN 61000-6-3, EN 62233
EU immunity: EN 61000-6-1
US safety: UL 507
Canadian safety: CSA C22.2 No 113
Australia/NZ: RCM (pending)
United Kingdom: UKCA
INCLUDED ITEMS
Analog timer remote control, 3 m (9.8 ft.) cable: P/N M55765013 Power input cable, EU, IEC C13 female, stripped ends, 1.5 m (4.9 ft.): P/N 11501012 Flying bracket and hardware
ACCESSORIES
Touring Frame, AF-2: P/N 92620006
Omega Bracket: P/N 91602001 (2 required)
Omega Bracket, Wide 250-300: P/N 91602000 (1 required)
Half-coupler clamp: P/N 91602005
ORDERING INFORMATION
JEM AF-2 DMX fan, 115V, US: P/N 92615400
