JEM ZR45 120V/50-60Hz 92215370

Save $78.22
JEM ProfessionalSKU: M72452
Price:
$1,486.21 $1,564.43

Compatible with

Fixture model:

Description

JEM ZR45 120V/50-60Hz 92215370

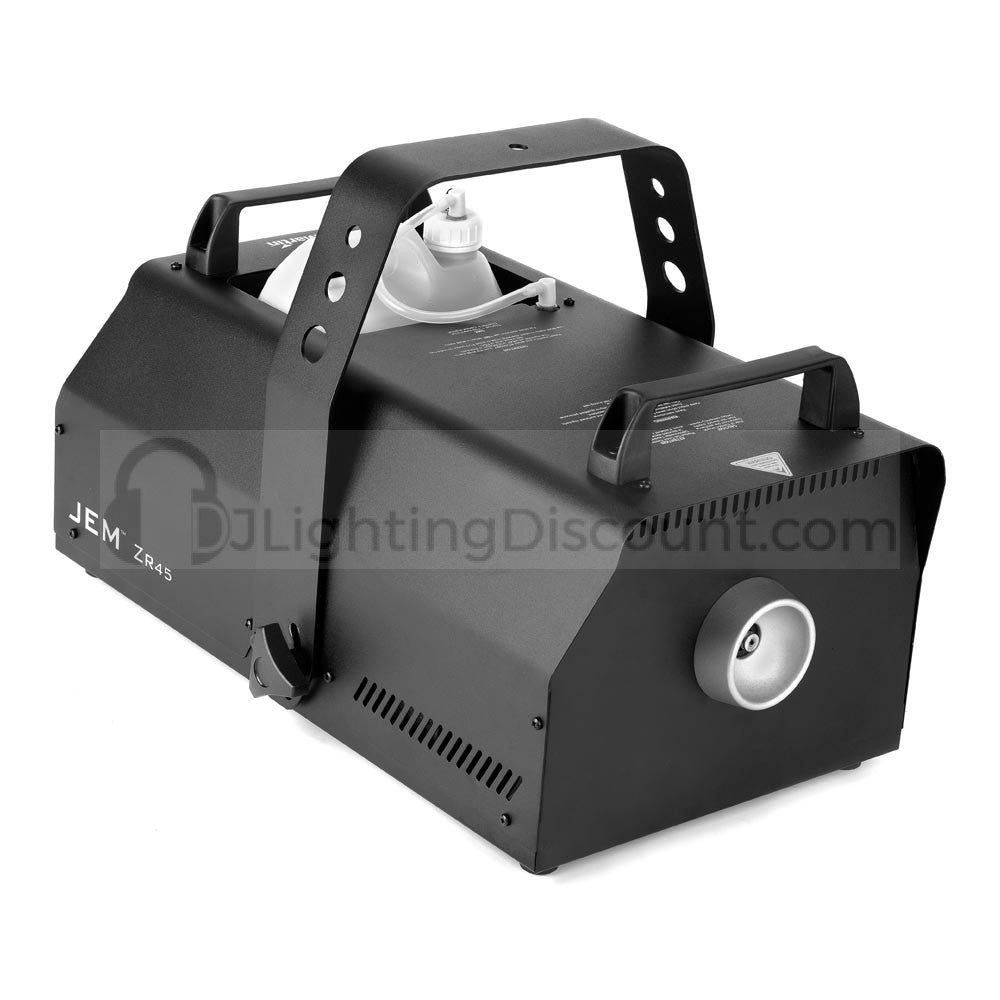

The JEM ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets.The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

  • High endurance high-end fog machine
  • Exceptional performance and output
  • Various control options via digital remote, DMX and RDM

FEATURES

  • Robust roadworthy design

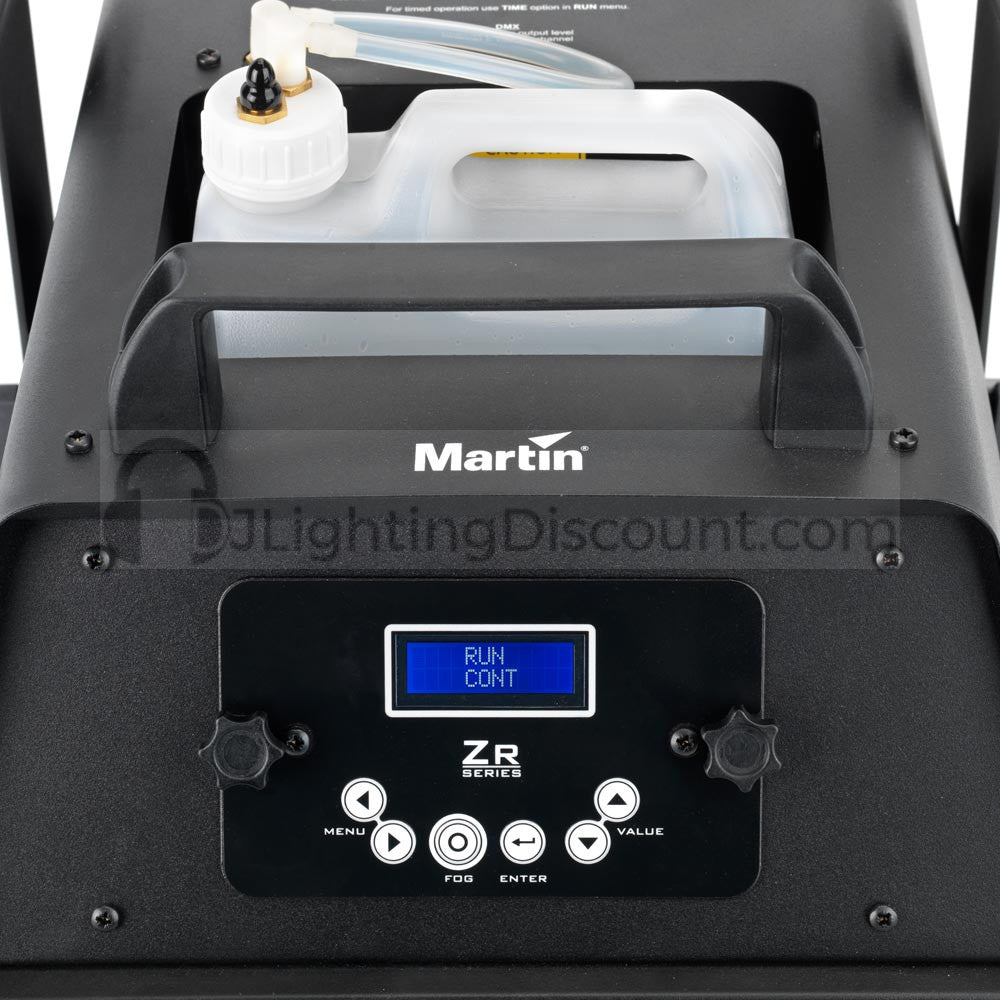

  • Integrated Digital Remote Control
  • DMX with RDM
  • Floor standing or truss mounting (hanging bracket included)
  • 2000 W (EU model) / 1800 W (US model) heat exchanger
  • 1300 m³ (45,909 ft.³) per minute fog output
  • Variable output control for subtle effects
  • Continuous effect output
  • Compatible with a wide range of JEM Pro-Fog fluids
  • 5 l Fluid reservoir with quick-connect fitting
  • Easy external fluid connection
  • Optional Ducting Kit

SPECIFICATIONS

  • PHYSICALLength: 602 mm (23.1 in.)Width: 395 mm (15.6 in.)Height: 306 mm (12.1 in.)Height with hanging bracket: 393 mm (15.5 in.)Weight, dry: 17.7 kg (39.1 lbs.)Weight, filled: 22.7 kg (50 lbs.)
    PERFORMANCECoverage volume: 1300 m3 (45,909 ft3) per minuteFluid consumption (max.): 210 ml per minuteMaximum operating time, maximum output, 5 l of fluid: 1.18 hoursReady time: 10-minutesContinuous effect output
    CONTROL AND PROGRAMMINGControl options: Integrated digital remote control, DMX, master/client link modeControl parameters: Continuous or timer-controlled outputFog: Variable output control, 0-100%DMX channels: 1External fluid control: Fluid sensingDMX compliance: ANSI E1.11 - USITT DMX512-ARDM compliance: ANSI/ESTA E1.20 RDM
    CONSTRUCTIONHousing: Steel and aluminumColor: BlackHeat exchanger:1800 W, thermally protected (US Model)
    2000 W, thermally protected (EU Model)

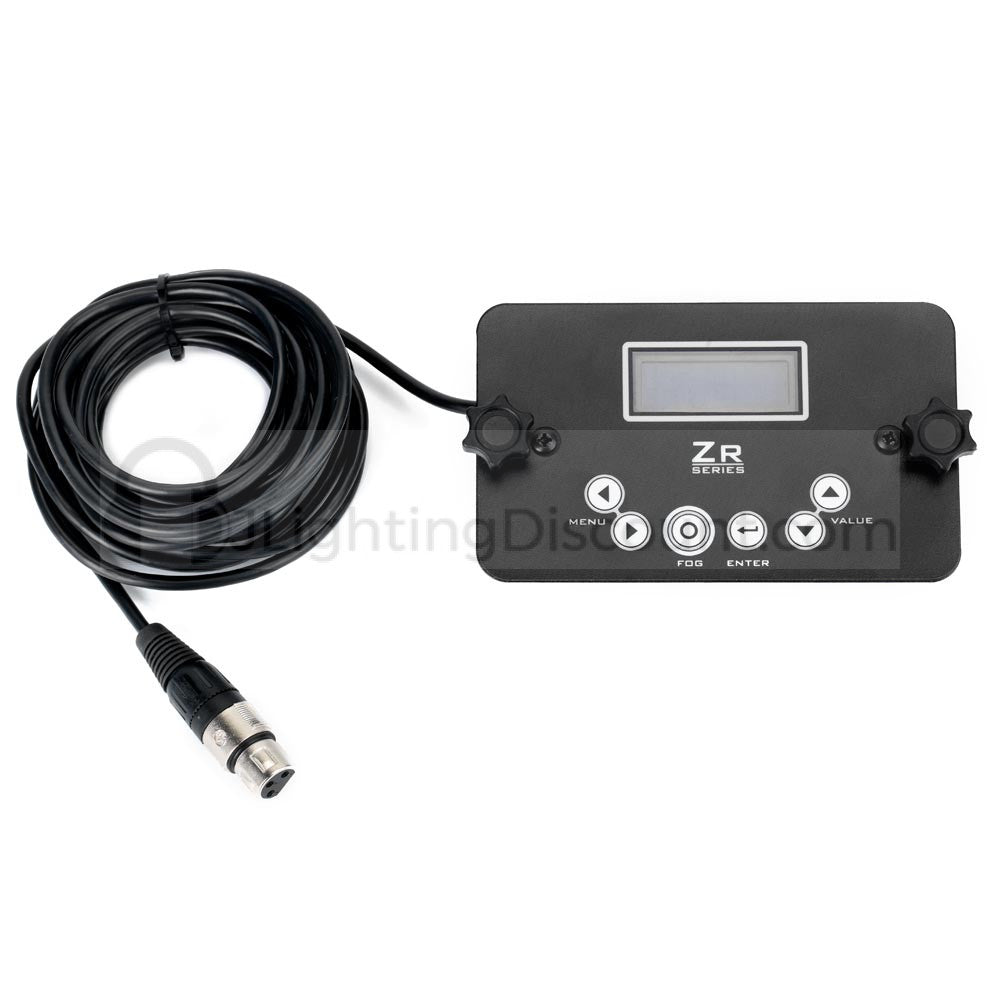

    Fluid pump: Dual oscillating piston, high pressureFluid management: Fluid out sensing, sealed for transportationFluid reservoir: 5 l drop-in reservoir with quick-connect fittingRemote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLRExternal Fluid Control: Fluid sensingHanging bracket: Integrated yoke with safety attachment point

    INSTALLATIONMounting: Standing or hangingOrientation: Up to +/-40° from horizontalClearance around machine: 100 mm (4 in.)

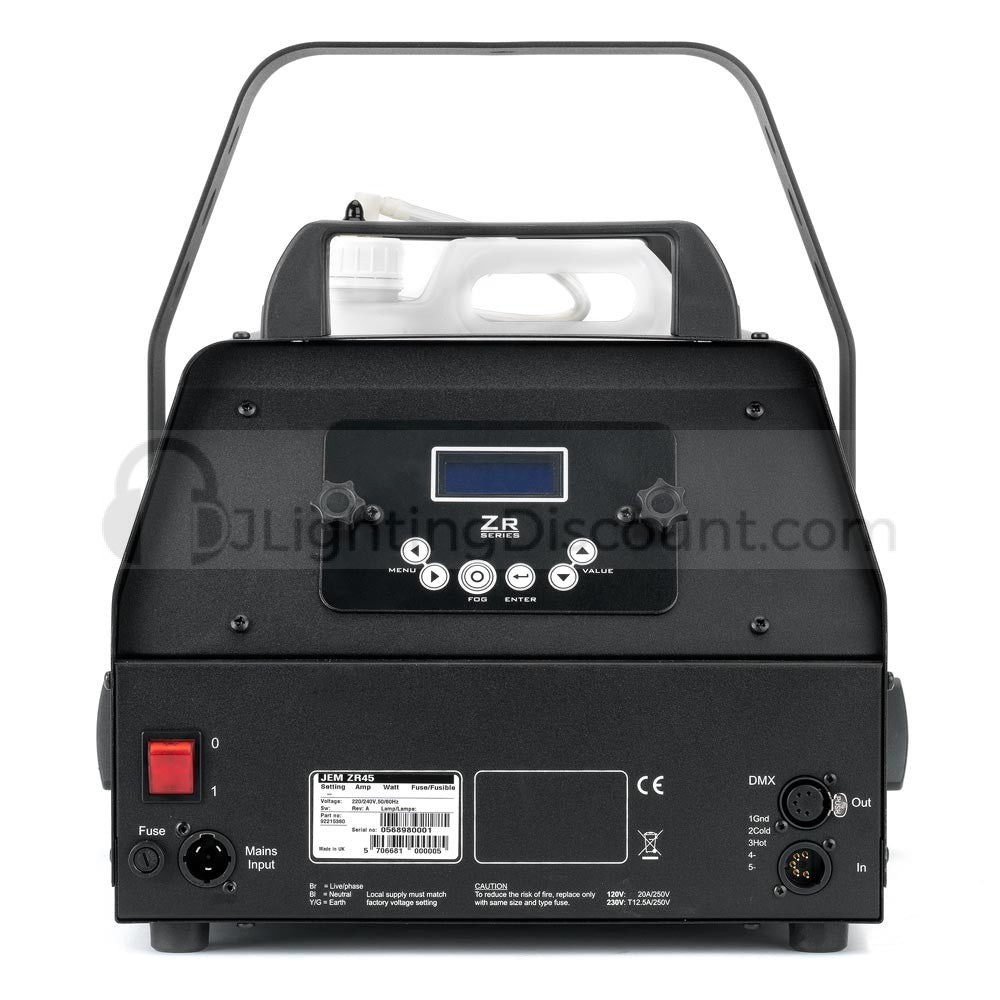

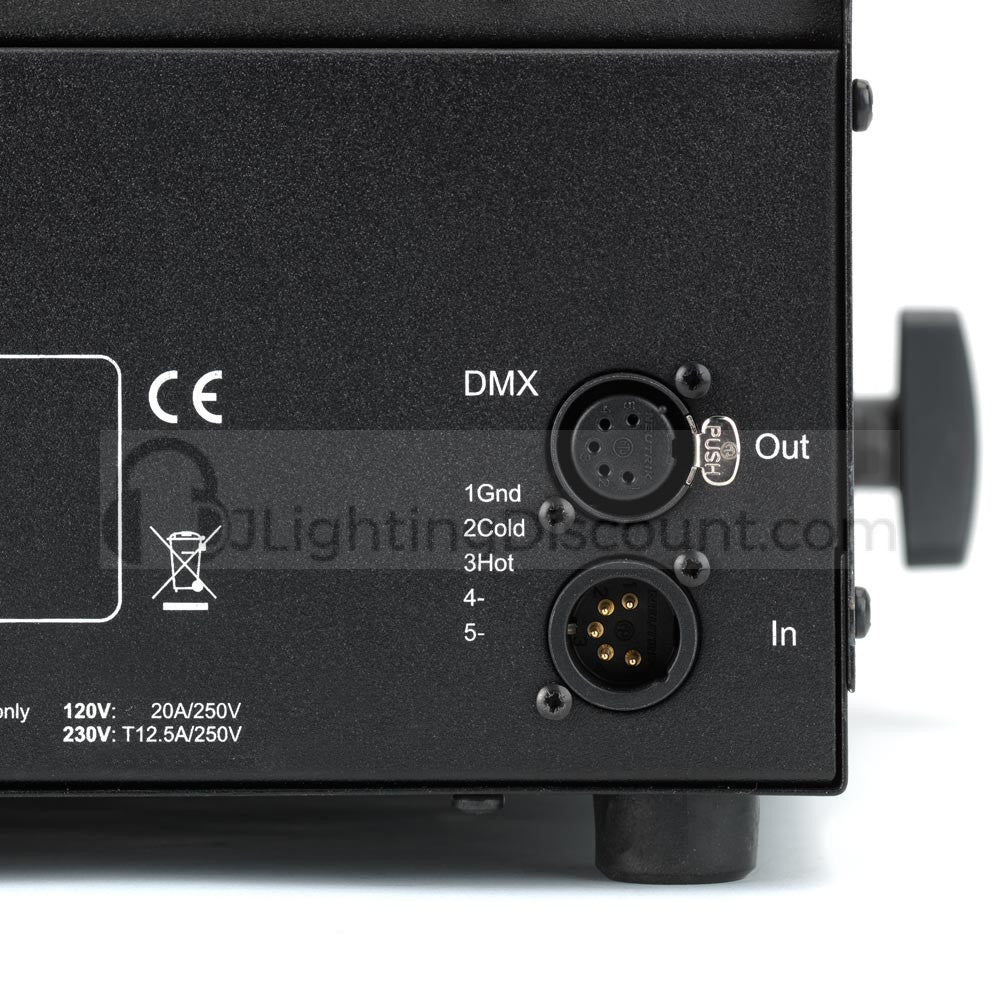

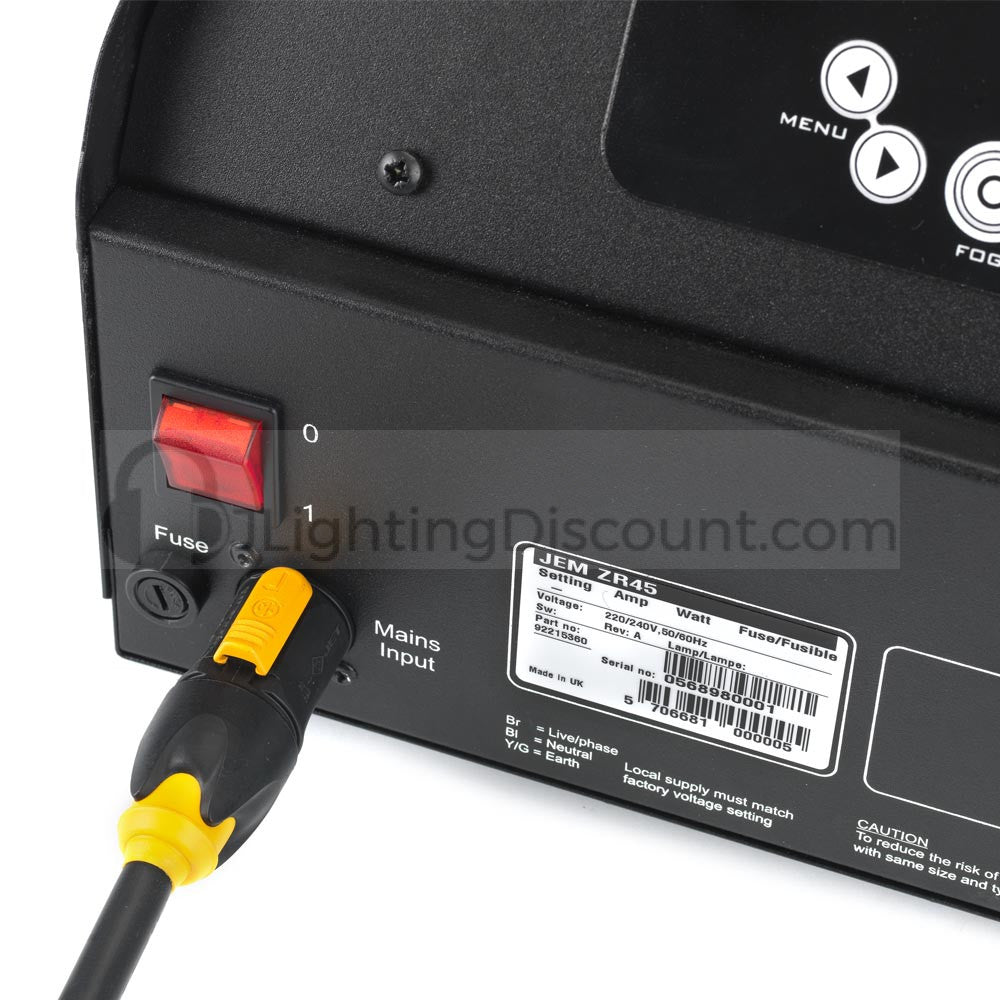

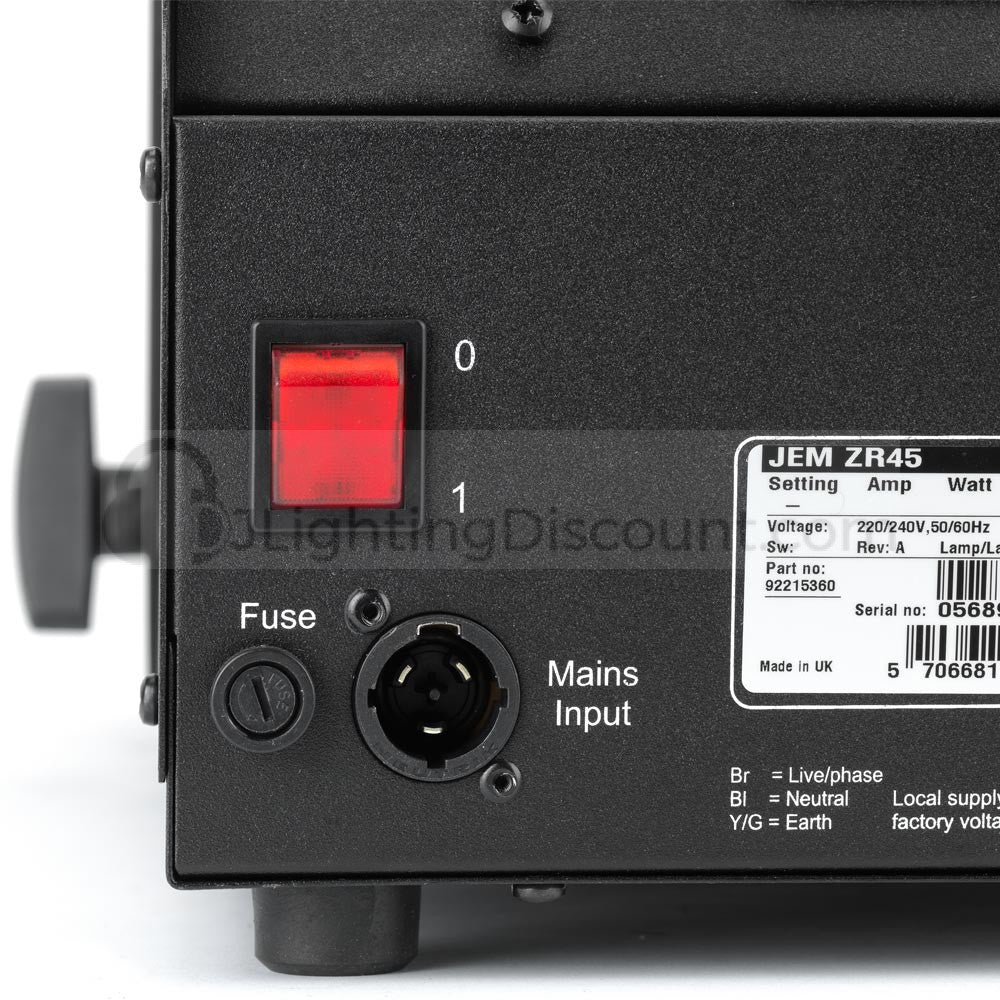

    CONNECTIONSAC Power: Neutrik PowerCON TRUE1DMX, link mode in/out: 5-pin locking XLRRemote control: 3-pin locking XLRFirmware: AVR socket
  • ELECTRICALEU Model:AC power: 220-240 V nominal, 50/60 Hz
    Main fuse: 12.5 AT (slow blow), 250 V
    Typical power and current: 2100 W, 9.2 A*

    US Model:AC power: 100-130 V nominal, 50/60 Hz
    Main fuse: 20 AT (slow blow), 125 V
    Typical power and current: 1800 W, 15 A*

    *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

    THERMALMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Exterior surface temperature, steady state: 30° C (86° F)Maximum nozzle temperature: 290° C (554° F)
    APPROVALSEU safety: EN 60 335-1EU EMC: EN 61000-6-3, EN 62233EU immunity: EN 61000-6-1US safety: UL 998Canadian safety: CSA C22.2 No 104Australia/NZ: RCM (pending)United Kingdom: UKCA
    INCLUDED ITEMSFluid reservoir, 5 l: P/N 34300506JEM ZR Series Integrated Digital Remote Control: P/N M55765048Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043Power input cable, US, 20A, powerCON TRUE1, molded NEMA 5-20P, 2 m (6.6 ft.): P/N 11501046
    ACCESSORIESJEM ZR45 Ducting System with 5 m (16.4 ft.) 4" flexible ducting: P/N 92625014
    JEM External Fluid Reservoir Kit, 25 l: P/N 92620035

    Approved fluids*:
    JEM Pro-Fog Fluid, Quick Dissipating
    JEM Pro-Fog Fluid
    JEM Pro-Fog Fluid, High Density
    RUSH & THRILL Fog Fluid
    Martin Pro-Clean and Storage Fluid

    Approved discontinued fluids*:
    Pro Smoke Studio (DX)
    Pro Smoke Super (ZR)
    Pro Smoke High Density (SP)
    I-Fog Fluid
    Regular DJ Fluid (DJ)
    RUSH Fog Fluid
    RUSH ELX Smoke Fluid
    Martin Pro Clean Supreme

    Service Tools:
    Epsilon 5 AVR Programmer: P/N 50502004
    Temperature Calibration Box: P/N 92620005

    *Various sizes available - contact your dealer or see 'Fluids' product pages for details

    Installation hardware:
    Half-coupler clamp: P/N 91602005
    G-clamp (vertical hanging suspension only): P/N 91602003
    Quick trigger clamp (vertical hanging suspension only: P/N 91602007
    Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    ORDERING INFORMATIONJEM ZR45, EU: P/N 92215360JEM ZR45, US: P/N 92215370
