Magmatic Crisp PSC001
CRISP™ is a high volume compact lightweight snow machine with advanced technology providing adjustable snowflake size, along with a lower operating noise for noise-sensitive environments. The new the Auto-Clean feature, provides less clogging and requires less maintenance. Features include an easy-to-use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control, durable aluminum housing, and optional wired and wireless remote control options.
Features
- 1,250W High Volume Snow Machine
- Lower Operating noise for Noise-sensitive Environments
- Auto-Clean Process
- Compact Light Weight Robust Design
- Onboard LCD Touch Control Panel
- Optional MaagFLY Wireless DMX Transceiver
- Optional MagRF
- Optional MagRemotes (VIDI)
Resources
DMX/ RDM Traits
Guides/ Manuals
Specification information
Drawings
CAD File
Test Results
Related Categories
Specifications
KEY FEATURES
High-Powered 1,250W Snow Machine
Lower Operating noise for Noise Sensitive Environments
Auto-Clean Process
Compact Robust Design
Onboard LCD Touch Control Panel
Dynamic Effects
Snow Adjustment: 0-100%
Fan Speed Adjustment 50% or 100%
Self-Clean Function
Control
.2 Card Inputs (For optional Magfly, & MagRF cards)
RDM (Remote Device Management)
Control Protocol: DMX512.DMX Modes: 3 (1 / 3 / 5)
On-Board Timing Control
5 Factory Presets
4-pin Wired Remote Input
Touch Screen Display
Connections

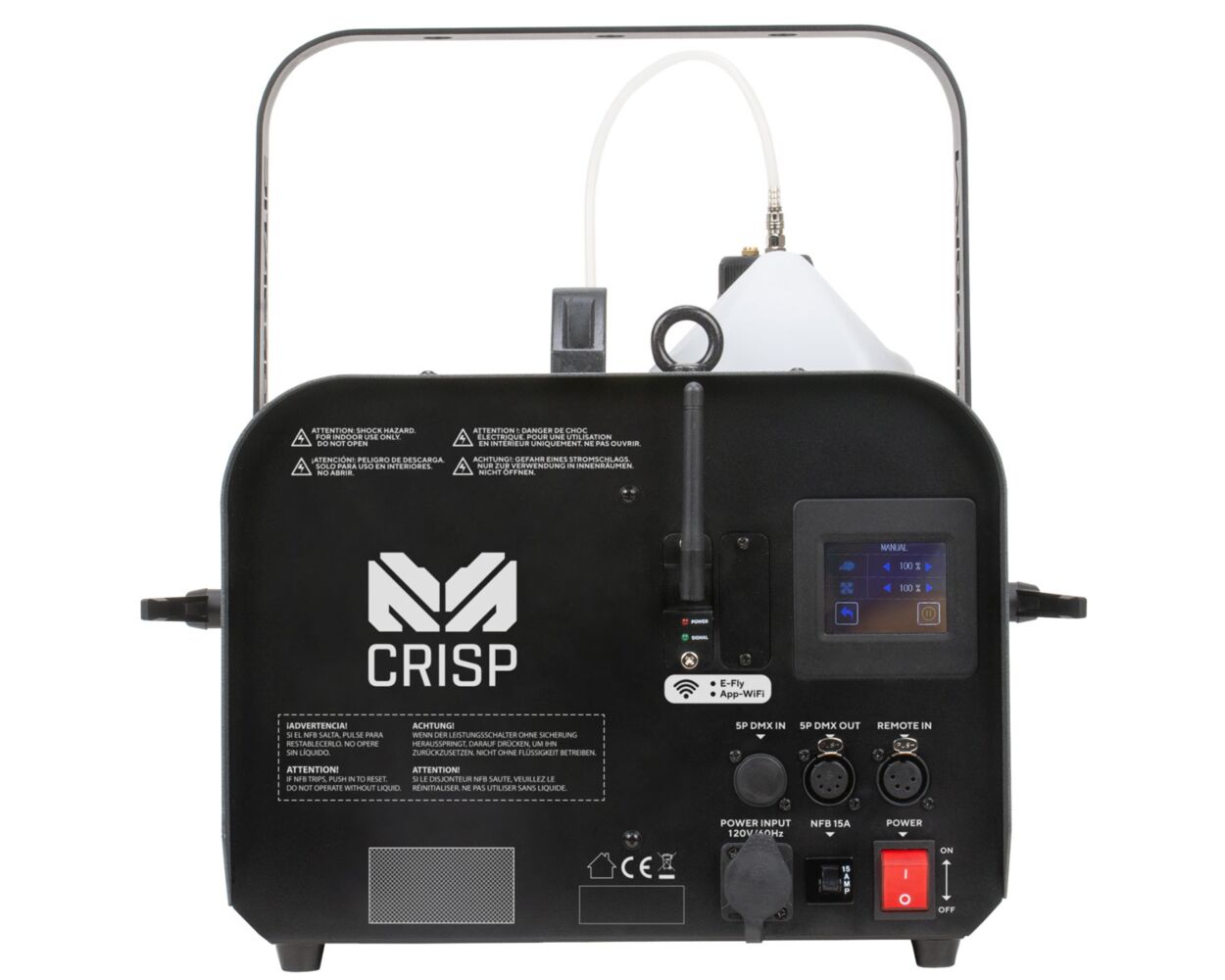

Data Connectors: 5-pin locking XLR In/Out
4-pin Connector for optional wired remote
Locking Power Connector
Compatible Fluid
Recommended fluid: Atmosity Premium Snow Fluid. APS-1LC (Concentrate = 20L) , APS-4LC (Conentrate = 80L), APS-10LC (Concentrate = 200L) APS-4L, APS-20L
Construction / Physical / Performance
Dimensions (LxWxH): 20.81in x 15.94in x 15.95in / (518 w/Antenna) x 415 x 405mm
Weight: 33.5 lbs / 15.2kg
External Visual Fluid Level Detection
Fluid Tank Capacity: 5L.
Fluid Consumption: 16.9oz/min / 500ml/min
Electrical
Power Consumption: 1250w
Input Voltage: U.S. Version - 120VAC @ 60Hz and Europe Version - 230 - 240VAC @ 50Hz
Breaker Size: 15A (120V version).Breaker Size: 9A (230-240V version)
Certifications / Qualifications / Thermal
IP Rating: IP20, dry location
Maximum Temperature (Ambient): 104° F (40° C)
Exterior Surface Temperature: 122° F (50° C)
What's Included
Hanging Bracket
14 AWG Locking Power Cable
Optional Accessories
MagFLY Card
MagRF Card
Ratings / Approvals
CE | cETLus | FCC | IP20
Specifications and documentation subject to change without notice.
