- Powerful 250 W Philips Platinum 11R lamp
- Super tight 2.6° beam angle
- 8 rotating & indexing gobos
- Ultra sharp, narrow long-throw beam
- Mid-air effects
- 10 selectable colors + CTO, CTB, UV
- Frost effect
- 8-facet circular prism
- Motorized focus
- 3 + 5 pin XLR DMX connection
- Neutrik TRUE 1 in and thru socket
- Compact size—L: 364 x W: 305 x H: 581 mm / L: 14.3 x W: 12.0 x H: 22.9 in
- Low weight—19.5 kg/43 lbs.
Physical
Length: 364 mm (14.4 in.)
Width: 305 mm (12.0 in.)
Height: 581 mm (22.9 in.)
Weight: 19.5 kg (43 lbs.)
Dynamic Effects
Color wheel: 13 colors (incl. CTO and UV) + open, rotation with variable direction and speed
Rotating gobo wheel: 8 gobos + open, wheel rotation, gobo indexing, rotation and shake
Prism: 8-facet circular, indexing, rotation with variable direction and speed
Focus: Motorized, 16-bit coarse and fine control
Frost
Dimming: 0-100%, coarse and fine control
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Pan: 660°
Tilt: 250°
Control and Programming
Control options: DMX, stand-alone, RDM
DMX channels: 18
Setting and addressing: Control panel with backlit LCD display
Pan and tilt speed: Adjustable via onboard control panel and DMX
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI E1.20
Lamp
Approved lamp: Philips MSD Platinum 11R 250 W
Color temperature: 6800 K +/- 250 K
CRI (Color rendering index): 81
Average lifetime: 2000 hours*
*Under manufacturer's test conditions
Optics
Cutoff beam angle: 2.6°
Construction
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20
Gobos
Interchangeable rotating gobos
Permitted material: Steel or aluminum
Diameter: 14 mm +/-0.2 mm (0.55 in. +/-0.008 in.)
Max. image diameter: 13 mm (0.51 in.)
Gobo thickness: 0.8 mm (0.031–0.032 in.)
Installation
Mounting points: Two quarter-turn omega brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to illuminated surfaces: 10 m (33 ft.)
Minimum distance to combustible materials: 200 mm (8 in.)
Minimum clearance around fans and air vents: 200 mm (8 in.)

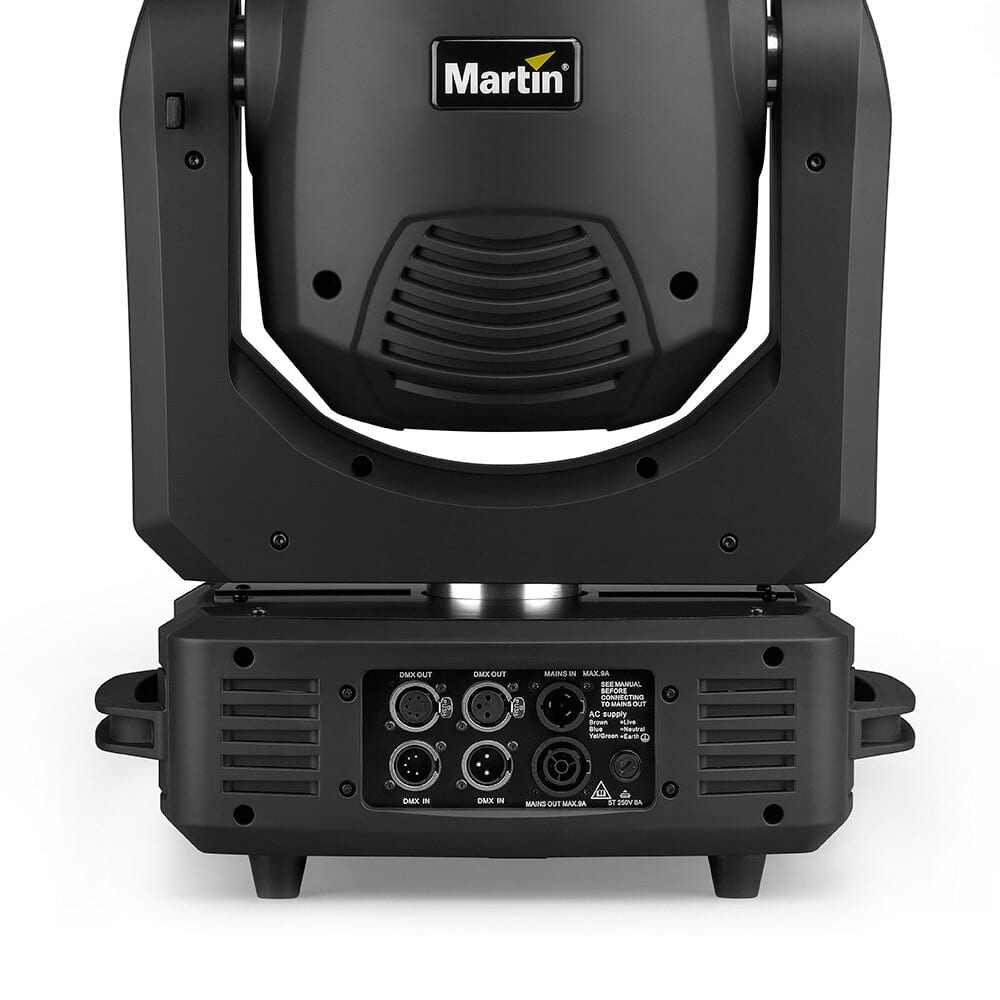

Connections
AC power in, thru: Neutrik TRUE1
DMX data in, thru: 3-pin and 5-pin locking XLR
Electrical
AC power: 100-120 / 200-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical Power and Current
120 V, 60 Hz: 380 W, 3.5 A, PF 0.9
230 V, 50 Hz: 370 W, 1.7 A, PF 0.9
Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
Thermal
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1300 BTU/hr.
Included Items
Philips MSD Platinum 11R 250 W lamp (installed)
Power cable, 1.5 m (4.9 ft.), without mains plug
Two Omega clamp attachment brackets with 1/4-turn fasteners
