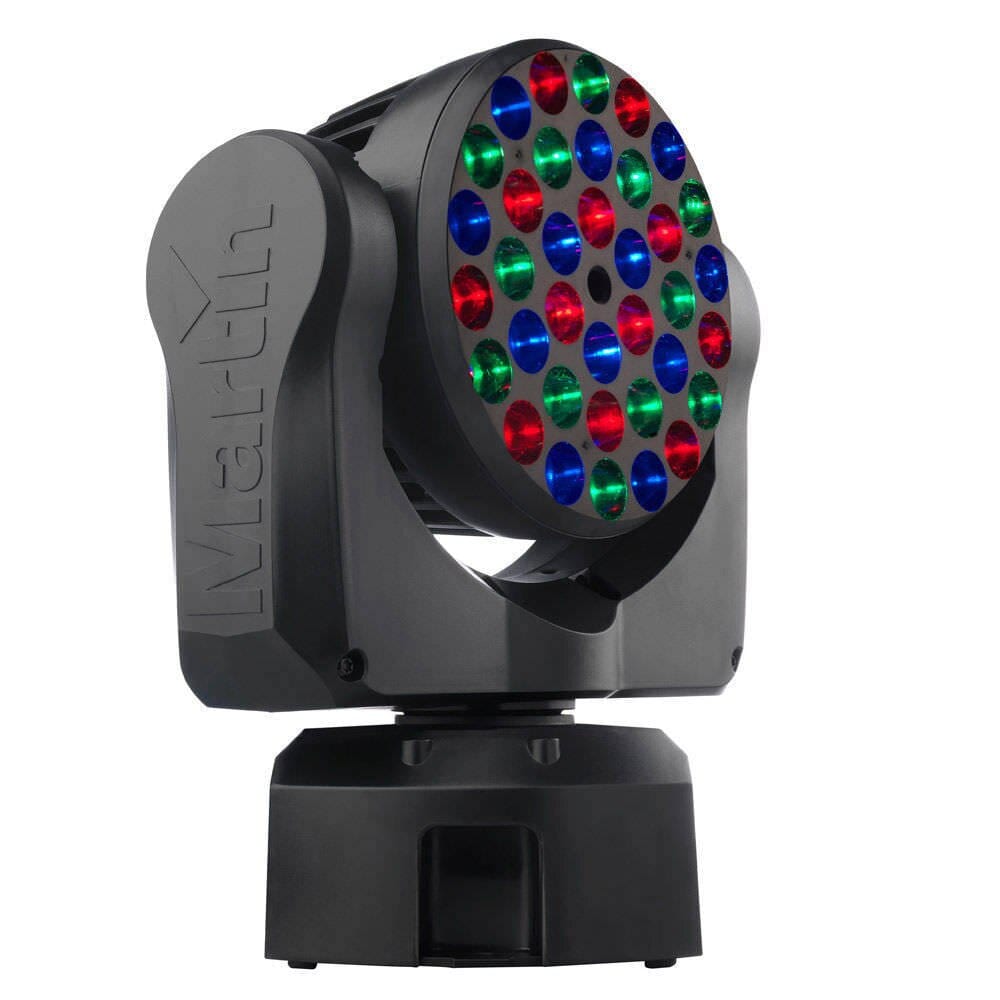

• Agile RBG LED Wash-Beam light
• Color calibrated
• 2400 lm output
• Bright and tight beam (13° field angle)
• Smooth, electronic dimming
• Ultra-compact, low weight design (3.7 kg)
• Rapid movement – the fastest MAC ever
• High efficiency, low power consumption, long lifetime

Included Items:

M12 bolt suitable for use with Martin rigging clamps

User manual

Dynamic Effects:

• Electronic "color wheel" effect: 33 LEE-referencedcolors plus white, color wheel rotation effect, random color
• Color mixing: RGB
• Red: 0 - 100%
• Green: 0 - 100%
• Blue: 0 - 100%
• Color temperature control: Variable 2500 - 10 000 K
• Shutter effect: Electronic, with pulse and randomeffects
• Electronic dimming: 0 - 100%, four dimming curveoptions
• Pan: 540°
• Tilt: 240°
• Adjustable pan/tilt speed

Optics:

• Light source: Cree XP-E high power emitters
• Minimum LED lifetime: 50 000 hours (to >70% luminousoutput)*
  *Manufacturer´s figure obtained under manufacturer´s testconditions

Control and Programming:

• Control options: 3 control modes - RGB raw, RGBcalibrated, Basic (RGB + CTC disabled)
• Control resolution: 8-bit, with 16-bit control of pan& tilt
• DMX channels: 8/12
• Setting and addressing: Control panel with backlitgraphic display
• Protocol: USITT DMX512/1990
• Transceiver: RS-485
• Fixture software update: Via DMX with Martin USB Duo DMX Interface

Installation:

• Mounting points: One M12 threaded hole for riggingclamp
• Orientation: Any
• Minimum distance to combustible materials: 100 mm(3.9 in.) from head, no minimum distance from base
• Minimum distance to illuminated surfaces: 200 mm (7.9 in.)

Connections:

• AC power input: Neutrik PowerCon
• AC power throughput: Neutrik PowerCon
• DMX data in/out: 5-pin locking XLR

Electrical:

• AC power: 100-240 V nominal, 50/60 Hz
• Maximum total power consumption: 123 W
• Power supply unit: Auto-ranging electronic switchmode
• Main fuse: 5 AT (slow blow)
• Standby power: <25 W

Thermal:

• Cooling: Forced air (temperature-regulated, lownoise, user-definable levels)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 5° C (41° F)
• Total heat dissipation (calculated, +/- 10%): 420 BTU/hr.

Approvals:

• EU safety: EN 60598-1, EN 60598-2-17, EN 62471
• EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547
• US safety (pending): UL 1573
• US EMC: FCC Part 15 Class A
• Canadian safety (pending): CAN/CSA E60598-1, CAN/CSAE598-2-17
• Canadian EMC: ICES-003 Class A
• Australia/NZ: C-TICK N4241

Photometric Data:

• Standard (Only blue LEDs on)
  • Efficacy: 5.7 lumens per watt
  • One-tenth peak angle: 11.5°
  • Total output: 320 lm
• Standard (Only green LEDs on)
  • Efficacy: 23 lumens per watt
  • One-tenth peak angle: 12.5°
  • Total output: 1300 lm
• Standard (All LEDs on)
  • Efficacy: 18.9 lumens per watt
  • One-tenth peak angle: 12.5°
  • Total output: 2300 lm
• Standard (Only red LEDs on)
  • Efficacy: 23.4 lumens per watt
  • One-tenth peak angle: 13.5°
  • Total output: 790 lm
