Compatible with
Description

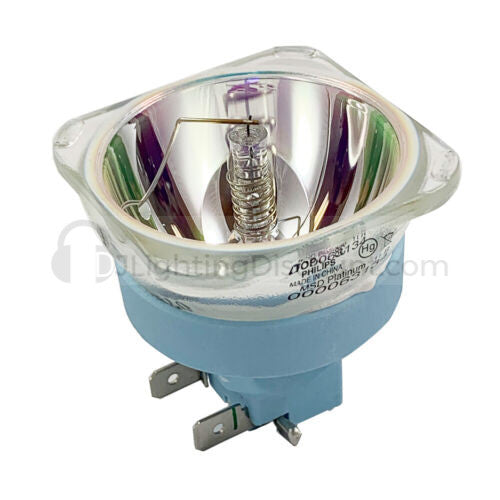

OEM Philips MSD Platinum 11 R 250w 7800k HID Light Bulb
Philips MSD Platinum 11 R Specifications:
General Information
| Cap-Base |
- [ -]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Main Application |
Stage/Touring
|
| Life to 50% Failures (Nom) |
2000 h
|
| System Description |
Reflector-E20.9
|
Light Technical
| Color Code |
2
|
| Luminous Flux (Nom) |
12000 lm
|
| Chromaticity Coordinate X (Nom) |
0.300
|
| Chromaticity Coordinate Y (Nom) |
0.305
|
| Correlated Color Temperature (Nom) |
7800 K
|
| Color Rendering Index (Nom) |
-
|
Operating and Electrical
| Power (Rated) (Nom) |
250 W
|
| Voltage (Max) |
80 V
|
| Voltage (Min) |
55 V
|
Controls and Dimming
| Dimmable |
Yes
|
Mechanical and Housing
| Cap-Base Information |
-
|
Luminaire Design Requirements
| Pinch Temperature (Max) |
350 °C
|
Product Data
| Full product code |
871869653976700
|
| Order product name |
MSD Platinum 11 R
|
| EAN/UPC - Product |
8718696539767
|
| Order code |
53976700
|
| Numerator - Quantity Per Pack |
1
|
| Numerator - Packs per outer box |
8
|
| Material Nr. (12NC) |
928191705314
|
| Net Weight (Piece) |
85.000 g
|
MSD Platinum 11 R Philips 108320962 Cross Ref: MSD Platinum 11 R Philips 30362-8 LMSDPLAT11R-P YODN MSD 260R9 9 R 9R MSD Platinum - The power to light your creativity The Philips MSD Platinum 11 R is a compact and powerful lamp which is perfect for small and lightweight fixtures. It features a short arc, high colour temperature and an innovative reflector which produces a sparkling, high beam intensity for outstanding colour reproduction. Product Specification Code: 928191705314 Wattage: 250W Voltage: 55V-80V Flux: 12,000LM Colour temp: 7,800K Average Life: 2,000 hours Burning position: Any Dimmable: Yes TECHNICAL DETAILS Product Type :LAMP / BULB Technology :HID / HIGH INTENSITY DISCHARGE ELECTRICAL PROPERTIES Watts :250W Volts :80V PHYSICAL CHARACTERISTICS Shape :E20.9 REFLECTOR Ends :SINGLE ENDED Overall Length (mm/") :53MM Diameter (mm/") :51.5MM LIGHT OUTPUT MEASUREMENT Initial Lumens :12000L COLOR CHARACTERISTICS CC Temp / Kelvin :7800K LIFE :2000H PART NUMBERS & ORDERING INFORMATION Part # : PHMSDPLAT11RBT Description : PH MSD PLATINUM 11 R 1CT/8BT Ordering Code : 0095599Mfg :PHILIPS Mfg Prod Description : MSD PLATINUM 11 R 1CT/8 Mfg Ordering Code :92819170531 Trade Name :MSD PLATINUM (TOURING / STAGE) Quantity Per Case: 1 Martin Professional RUSH MH-7 Hybrid Martin Professional RUSH MH 11 Beam PR Lighting PR-2206 PR Lighting XR 250 Beam II PR XR 250 Beam II BMH-250 BMH-350 HC-M265 LS-M210 MME250 / MME250-220 PCS-UMX250
